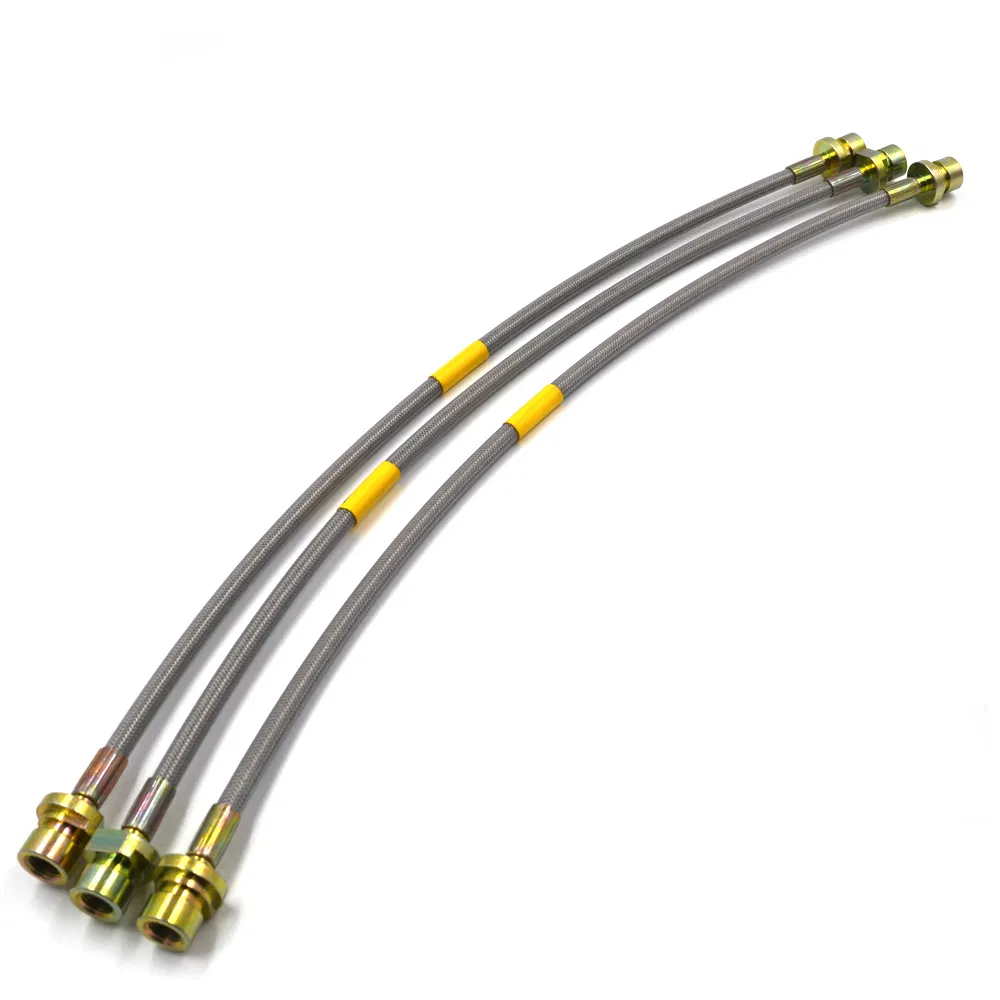

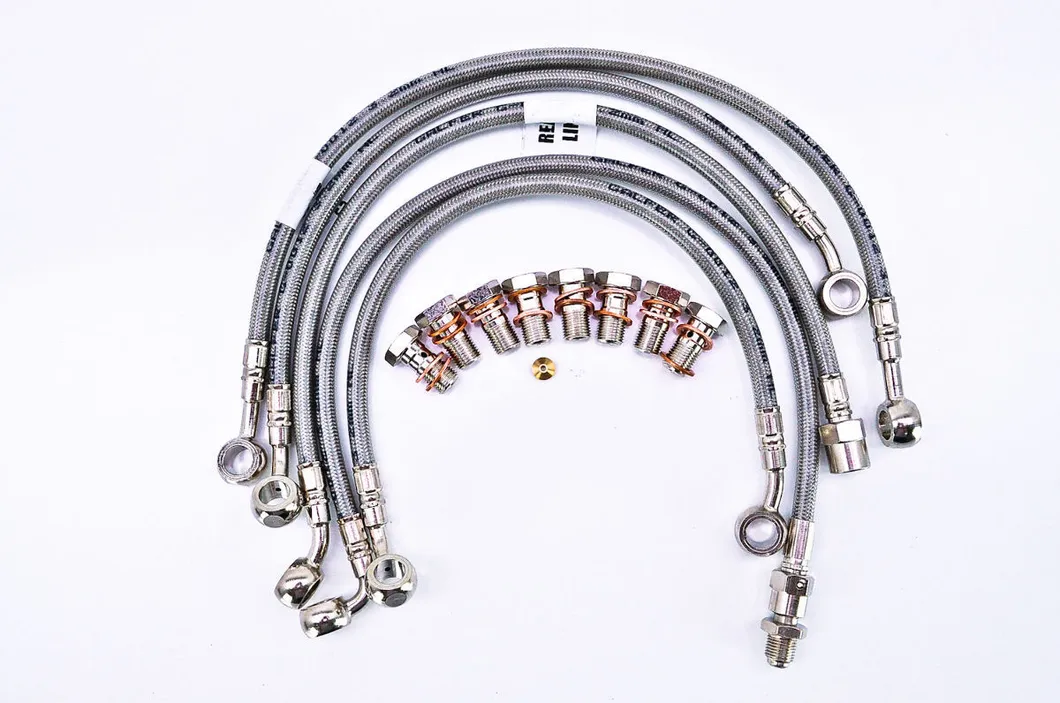

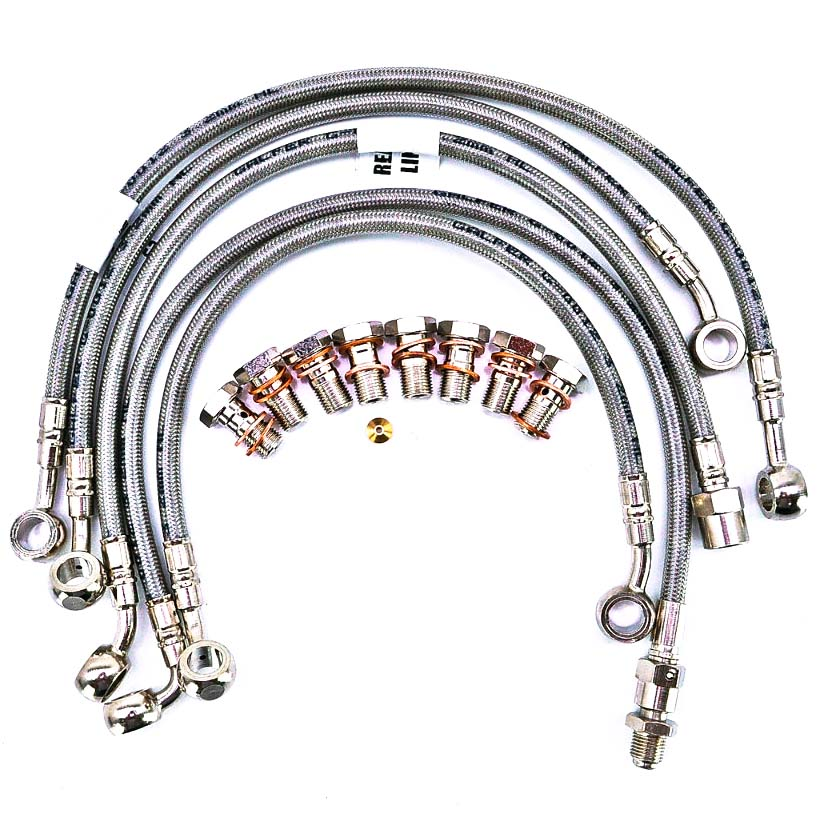

Suzuki Motorcycle Part OEM Stainless Steel Brake Line

1 / 5

Suzuki Motorcycle Part OEM Stainless Steel Brake Line

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.

OEM Stainless Steel Brake Line

Type

Brake Hose

Material

Steel / PTFE

Position

Front / Rear

Certification

ISO/TS16949, ISO9001, DOT

Inner Tube

Teflon/PTFE

Reinforcement

304 Stainless Steel Braided

Temp Range

-65ºC ~ +260ºC

Product Description

Suzuki Motorcycle Part OEM Stainless Steel Brake Line

We supply an exclusive range of hoses manufactured to FMVSS-106, ADR, LTSA, and DOT standards. These high-quality products use 100% Stainless Steel fittings or Steel with Zinc Coating, ensuring superior durability compared to standard alternatives.

Improved Brake Pedal Feel
Sharper Braking Experience
Improved Aesthetic Appearance
Ideal for High-Temperature Track Day Applications
Compatible with DOT3, DOT4, and DOT4+ brake fluids

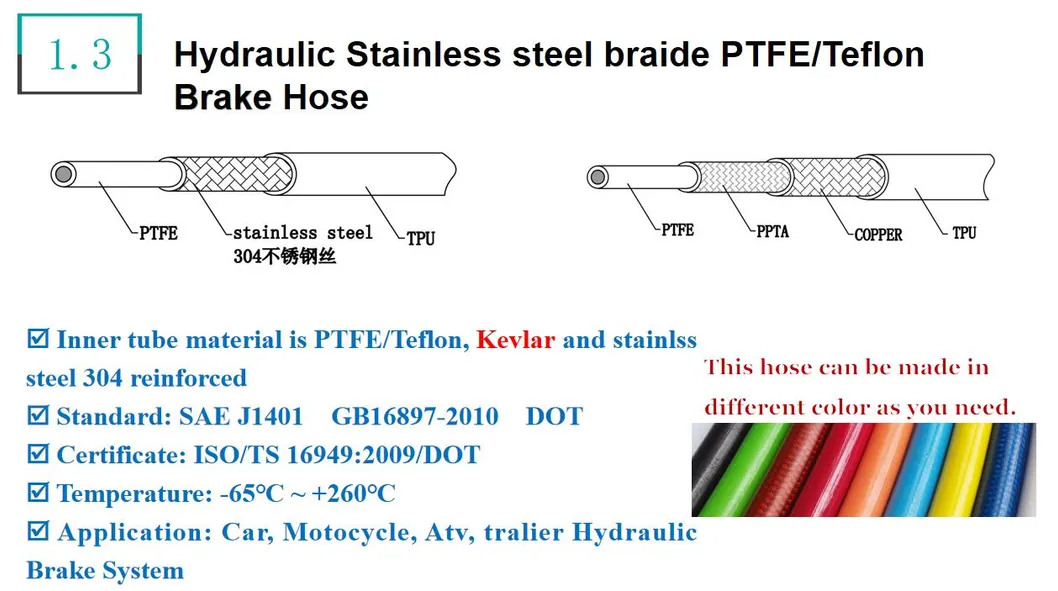

Layer	Material Specification
Inner Layer	PTFE Teflon Stainless steel braided brake hose Line Assembly
Enhancement Layer	Stainless steel wire braid (AISI Steel 304 316)

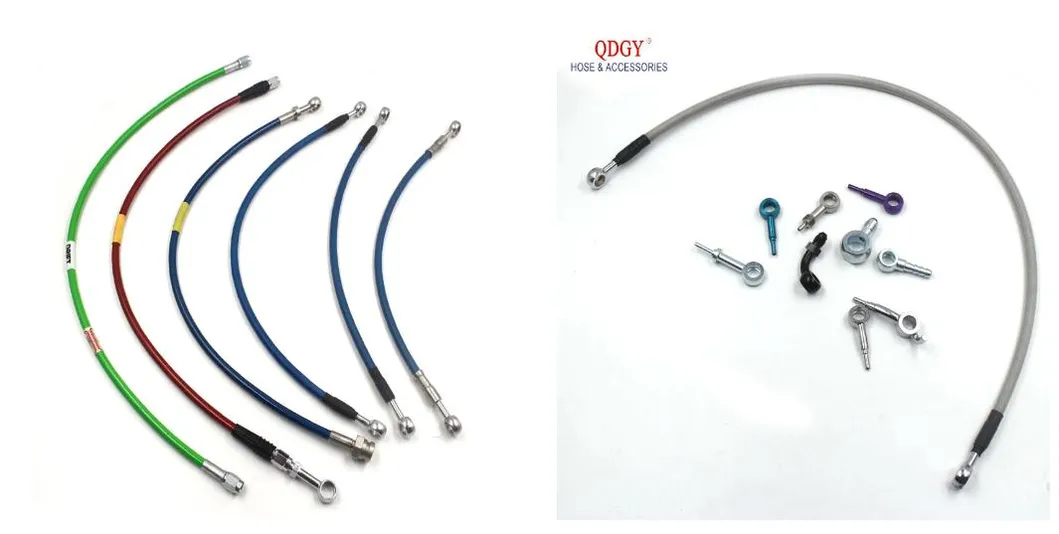

Outer Layer	PVC, PU (Various colors available: Black, Red, Blue, Clear, etc.)
Performance	High/Low temperature resistance, acid/alkali resistance, anti-friction, non-aging

Technical Specifications

Part NO.	Inner Diameter	Outer Diameter	Reinforcement	Inner Material
GSG020	1/8"(3.2mm)	0.275"(7.5mm)	304 Stainless Steel	PTFE
GSG026	3/16"(4.8mm)	0.374"(9.5mm)	304 Stainless Steel	PTFE
GSG028	1/8"(3.2mm)	0.255"(6.5mm)	304 Stainless Steel	PTFE

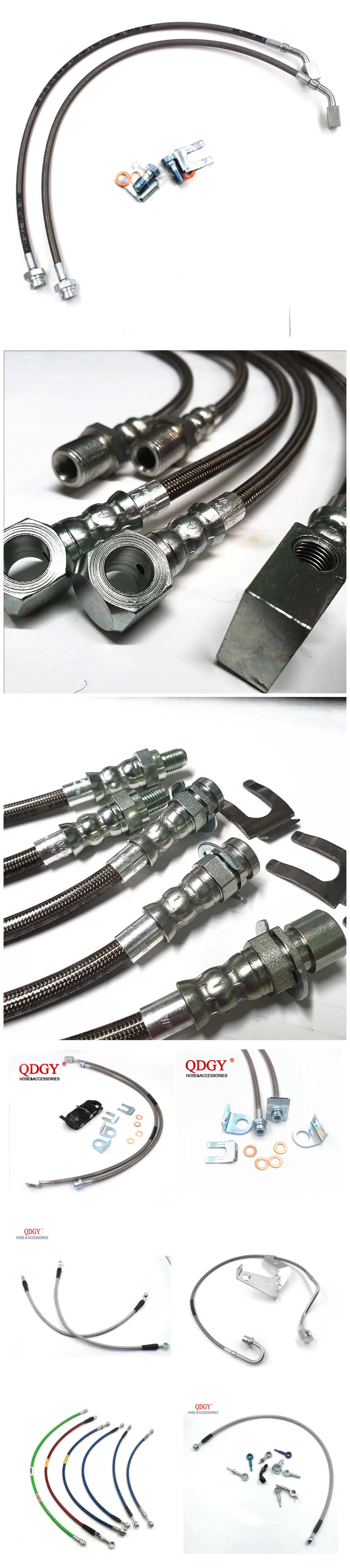

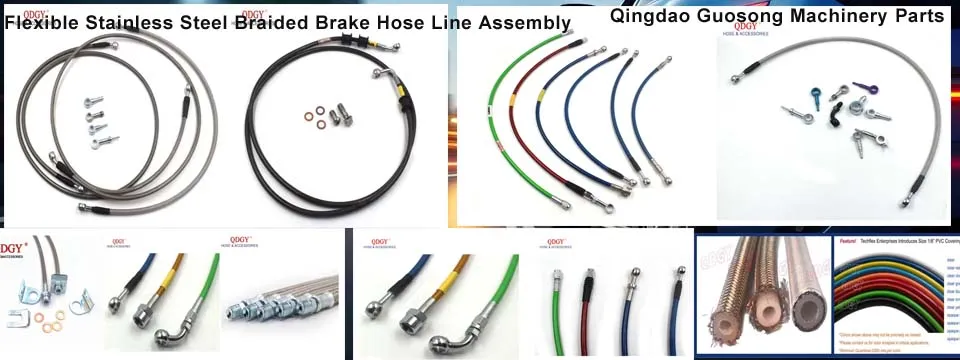

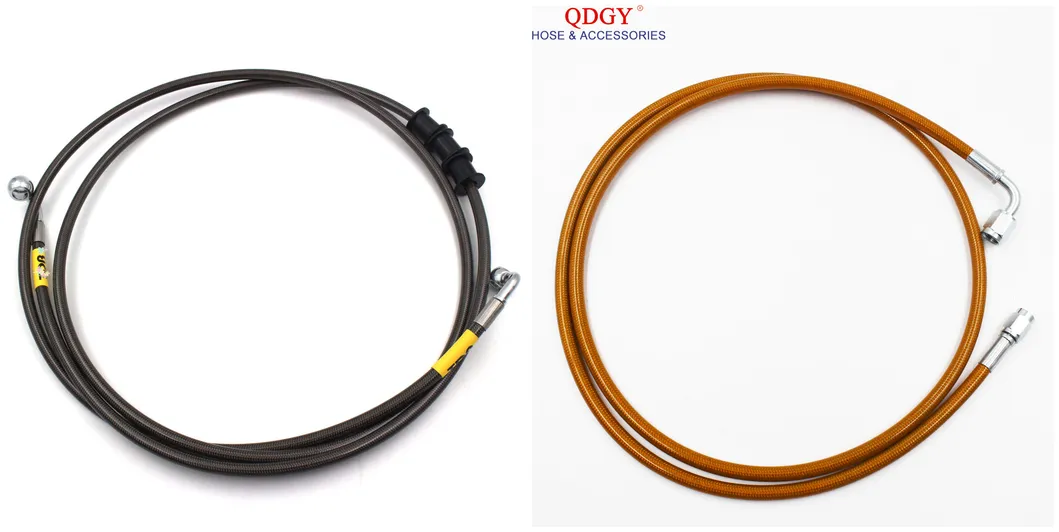

Detailed Photos

Packaging & Delivery

Package Size

50.00cm * 30.00cm * 20.00cm

Gross Weight

25.000kg

Certifications

Frequently Asked Questions

Q1: Where can these brake hoses be used? These are widely used in automotive, motorcycle, truck, and racing braking systems.

Q2: What materials are used in the main construction? We provide Rubber brake hoses, EPDM hoses, and high-performance PTFE stainless steel braided lines with various outer coverings.

Q3: What sizes of brake hose are available? Common sizes include 3.2x10.5mm (1/8") and 4.8x12.5mm (3/16"), and we can also provide custom sizes based on requirements.

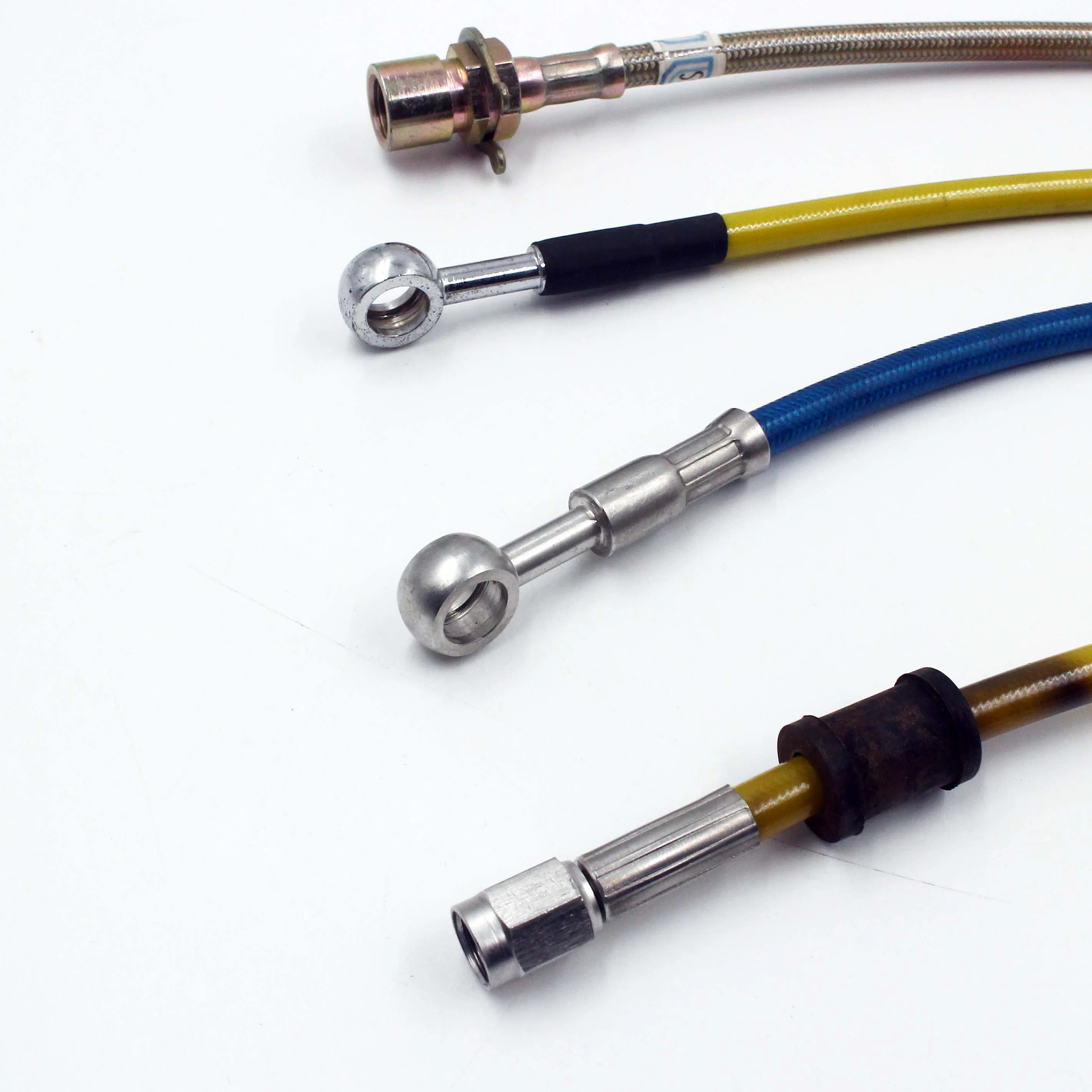

Q4: What types of fittings can be produced? We produce all kinds of fittings including female, male, banjo, and adapter fittings in steel with zinc, chrome, or stainless steel finishes.

Q5: Is third-party inspection accepted? Yes, we accept third-party inspections to ensure quality compliance.

Q6: What is the typical lead time for orders? Delivery usually takes between 5 to 40 days, depending on the order quantity and current stock levels.
