1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1 / 5
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line
1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line

1/8 3/16 Motorcycle Color Cover Racing Car Stainless Steel Braided PTFE Brake Cable Oil Hose Tube Assembly Line

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

■ Basic Information
Model NO.GSG020
TypeBrake Hose
MaterialIron / 304 Stainless Steel / PTFE
PositionRear
CertificationISO/TS16949, ISO9001, DOT, FMVSS106
ClassificationBrake System
Main MarketNorth America
Inner Size3.2mm (1/8") / 4.8mm (3/16")
Outer Size7.5mm - 12.5mm
Burst PressureMinimum 7250 psi (50Mpa)
Temperature Range-73°C to +232°C
ApplicationMotorcycle, Car, Truck Brake Lines
■ Product Overview

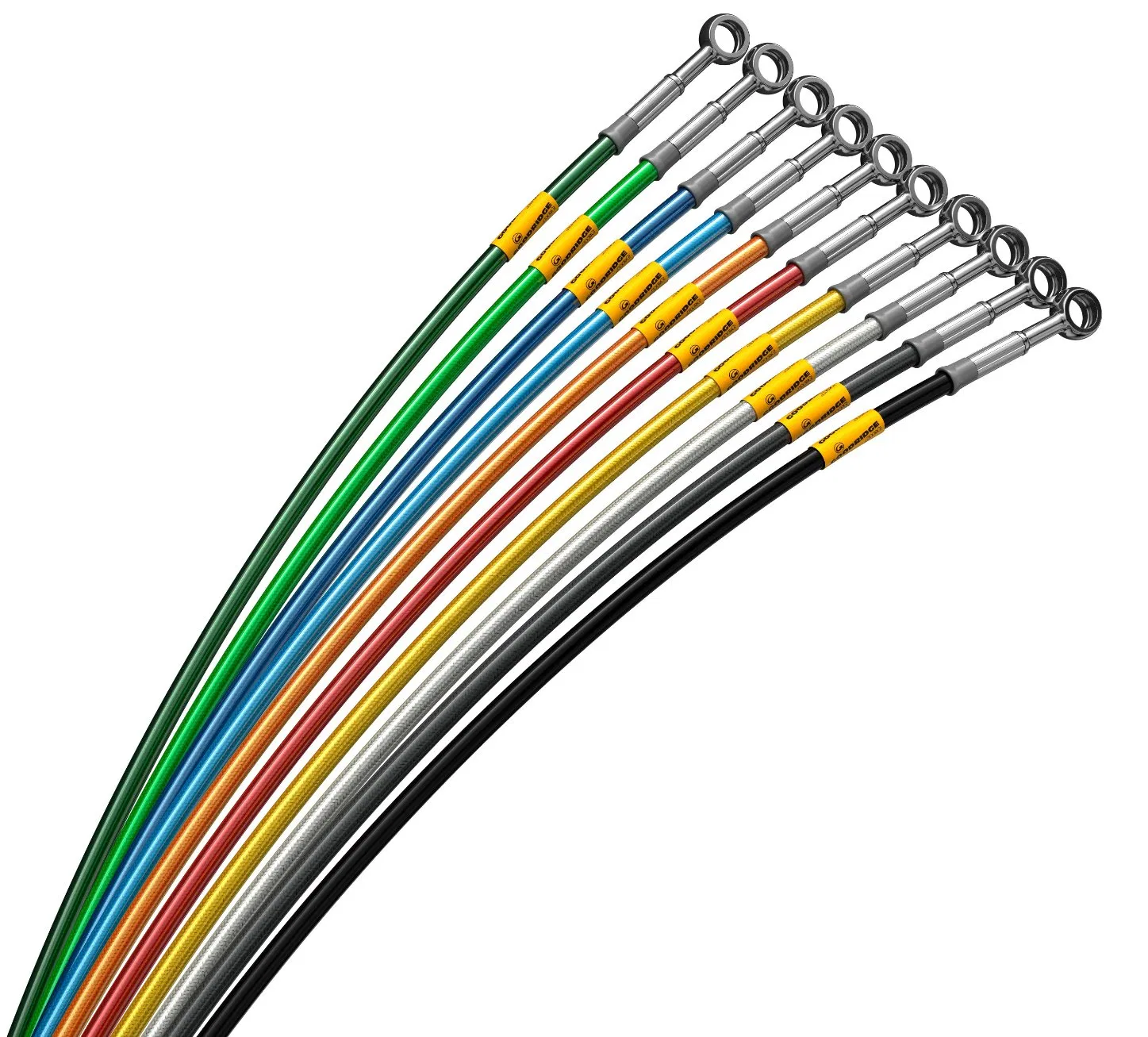

1/8 & 3/16 Stainless Steel Braided PTFE Brake Cable Oil Hose Assembly

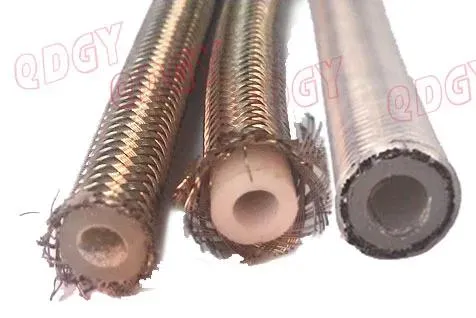

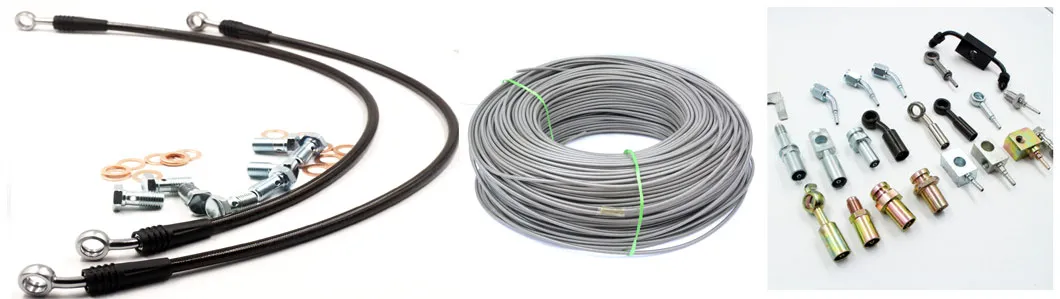

Brake Hose View 1 Brake Hose View 2 Brake Hose View 3
⚙️
High Performance Construction
304 stainless steel braid reinforced hose with Teflon/PTFE inner core for maximum durability and chemical resistance.
🛡️
Safety Standards
Meets FMVSS-106 and SAE J1401 specifications. Every hose is pressure tested to 3000 psi (20.7 Mpa).
🌡️
Extreme Temperature Range
Designed to operate reliably in environments ranging from -73°C to 232°C.
🎨
Customizable Options
Available with various PVC color coverings including Transparent, Yellow, Red, Green, and Blue.
■ Detailed Specifications
Part Number Inner Diameter Outer Diameter Outer Layer Braid Material
GSG0201/8" (3.2mm)10.5mmPVC304 Stainless Steel
GSG0263/16" (4.8mm)12.5mmPVC304 Stainless Steel
GSG0281/8" (3.2mm)6.5mmNo Covering304 Stainless Steel
GSG0243/16" (4.8mm)7.6mmNo Covering304 Stainless Steel

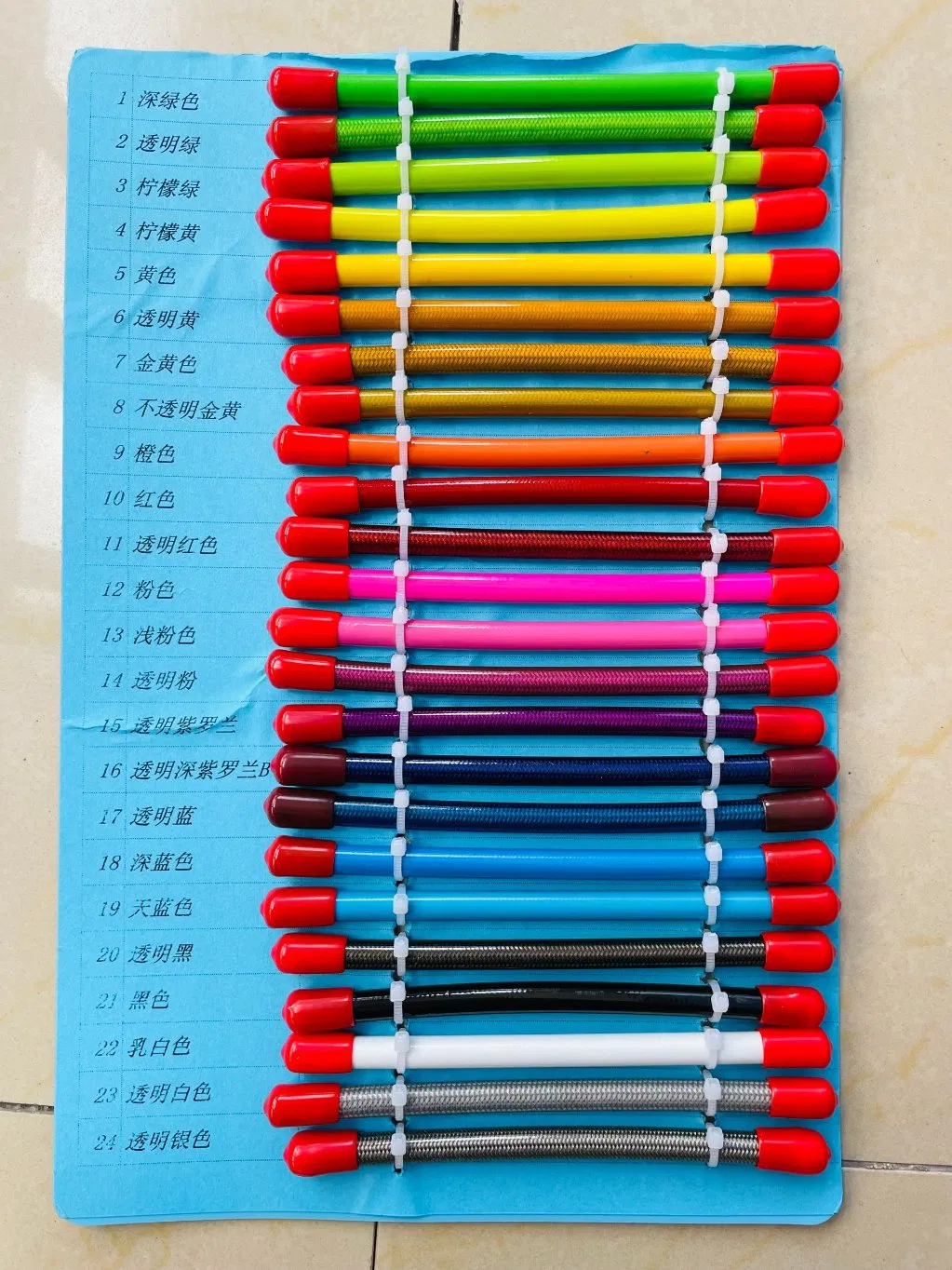

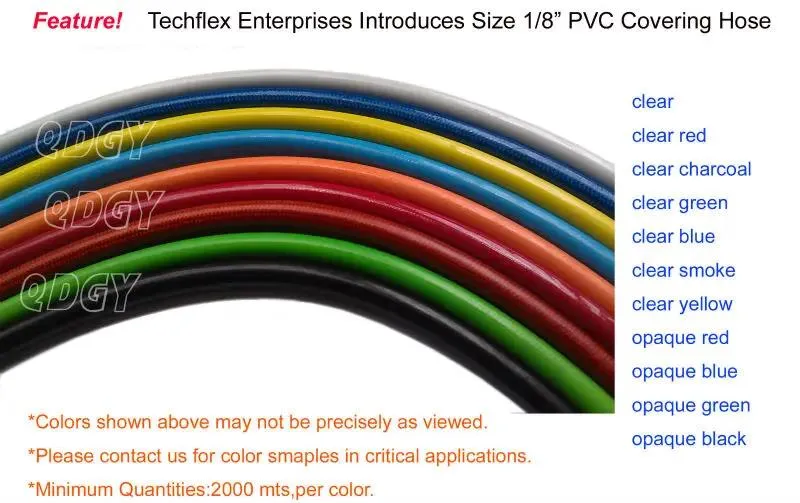

Available PVC colors
■ Technical Parameters & Application

Primary Applications: Suitable for hydraulic braking systems of road vehicles, motorcycles, turbo lines, vacuum lines, and pressure gauge lines.

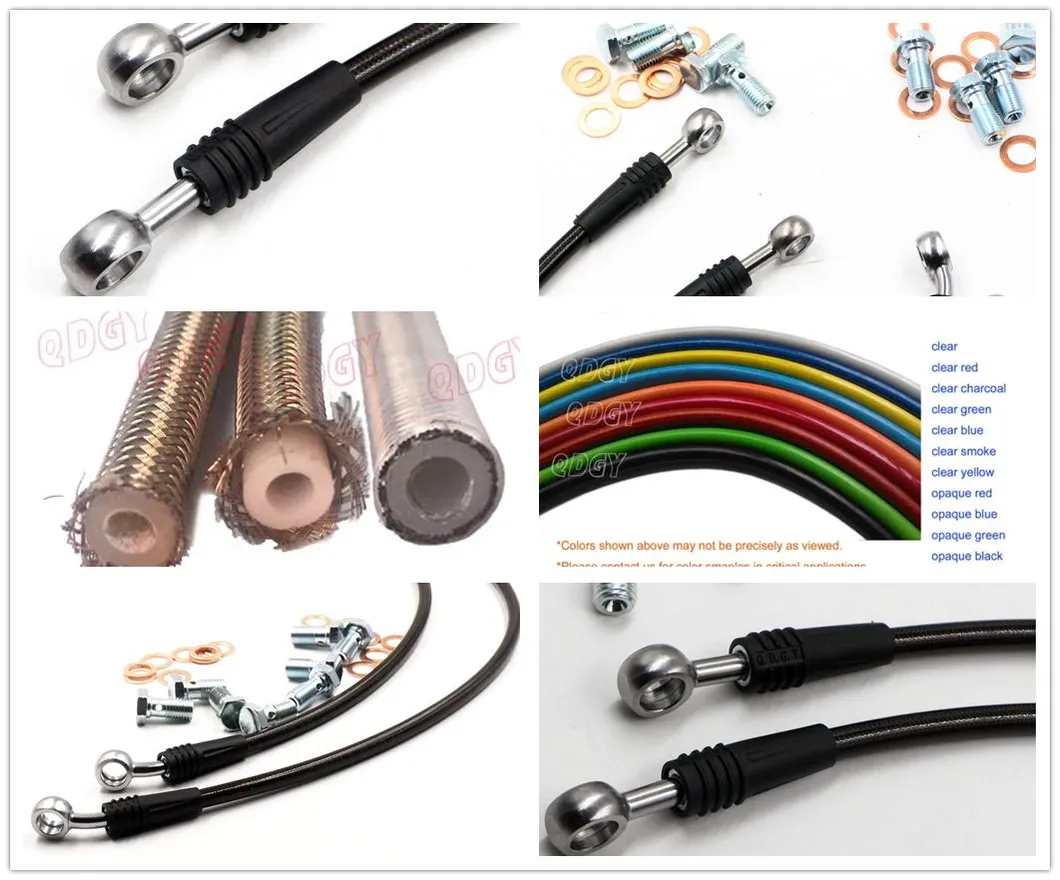

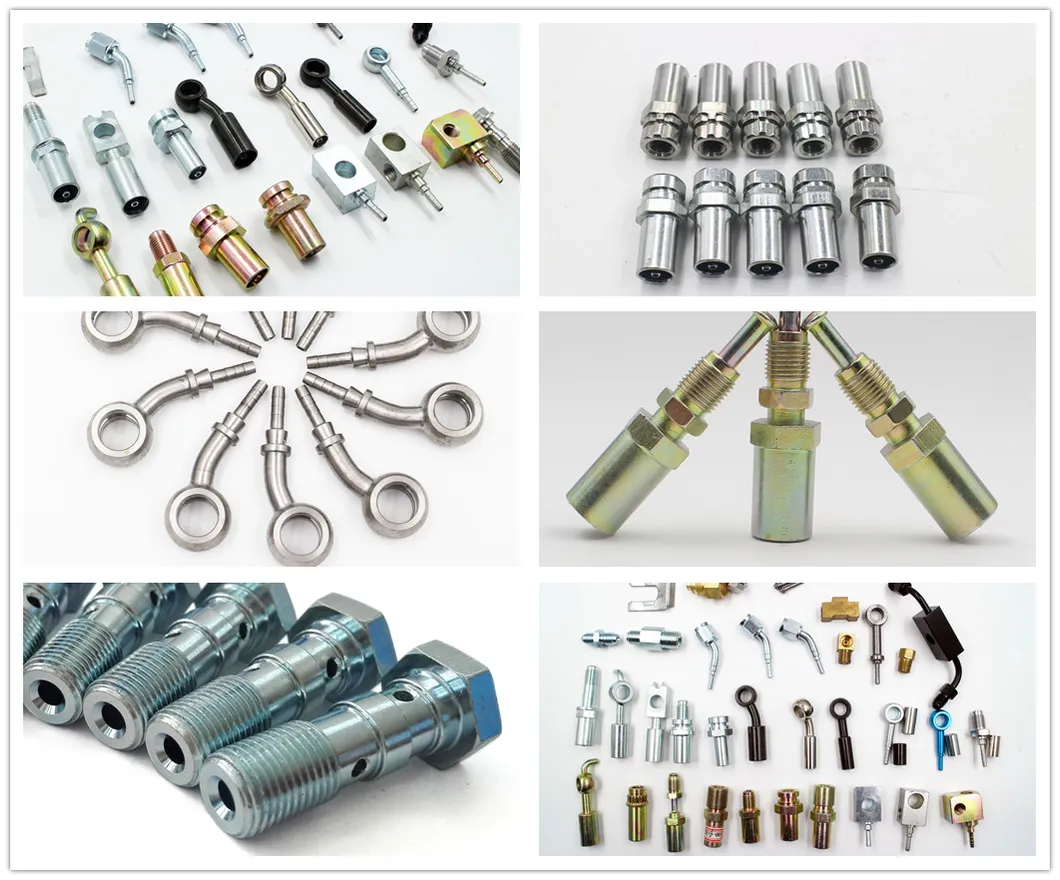

End Fittings Detailed Application
  • Extruded PTFE liner with stainless steel wire braid.
  • Maximum operating pressure: 3,000 psi.
  • Compatible with DOT3, DOT4, and DOT4+ brake fluids.
  • Flexible design for tight installation situations.
■ Packaging & Shipping
Packaging Process

Packing Details: Supplied in PVC bags within reinforced cartons. Standard carton sizes range from 0.30m to 0.60m depending on order volume. Palletized for secure transport.

Sample Policy: Free samples are available via freight collect within 7 days.

■ Certifications

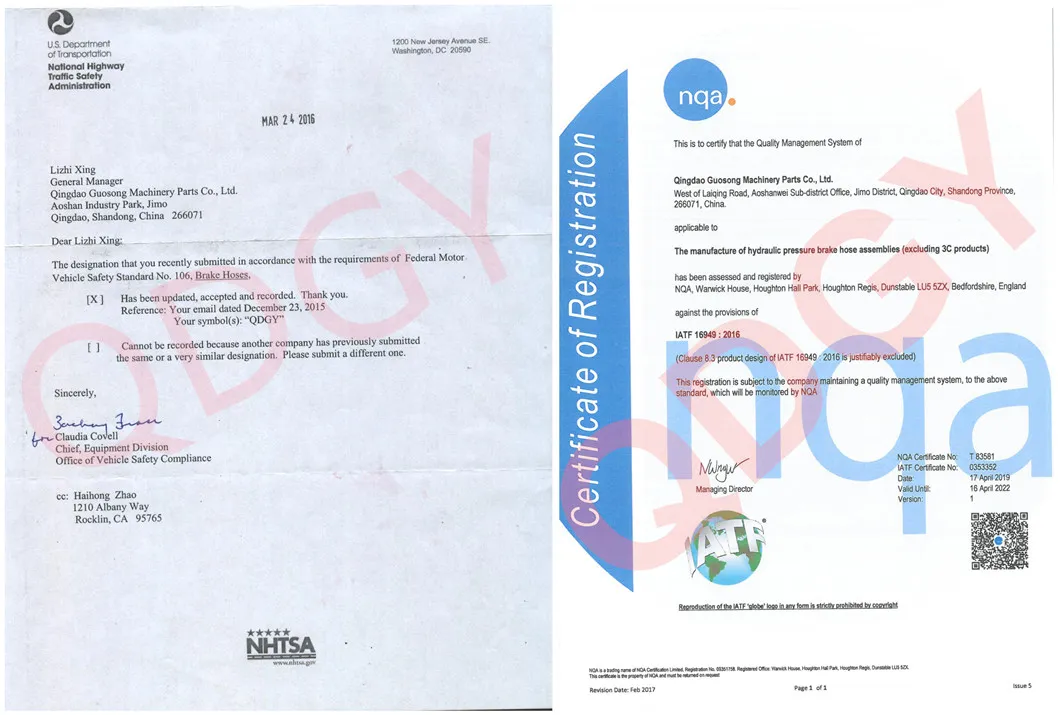

Certificates

Fully compliant with DOT and ISO9001:2015 quality management systems.

■ Product Range

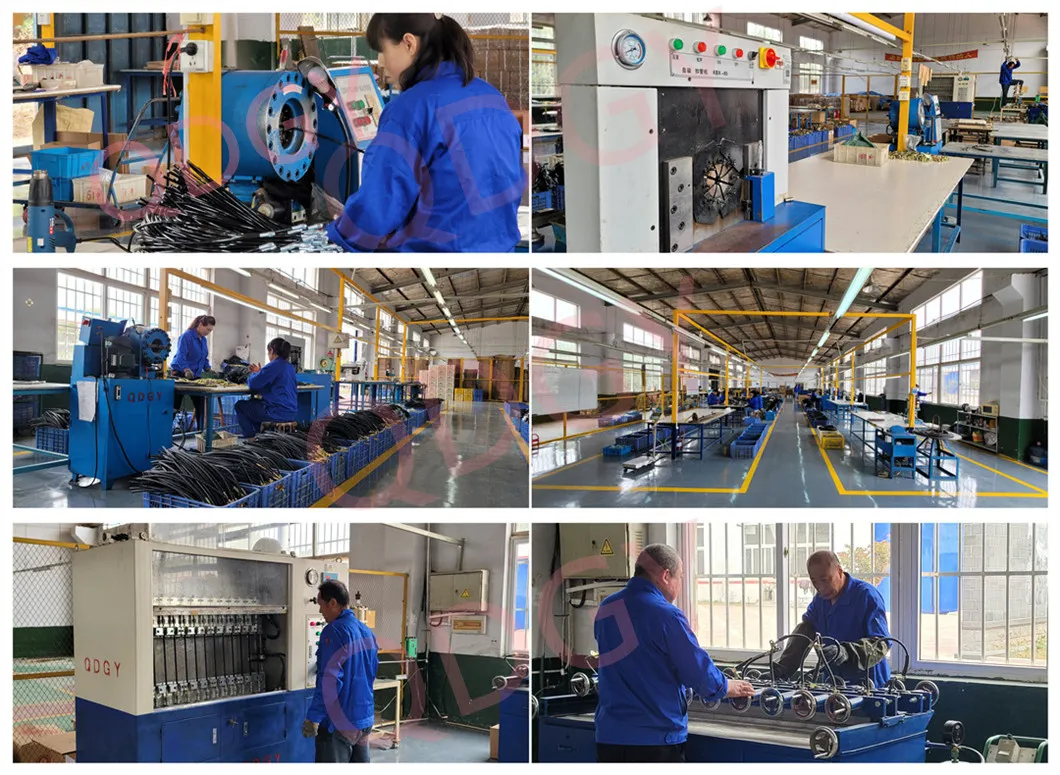

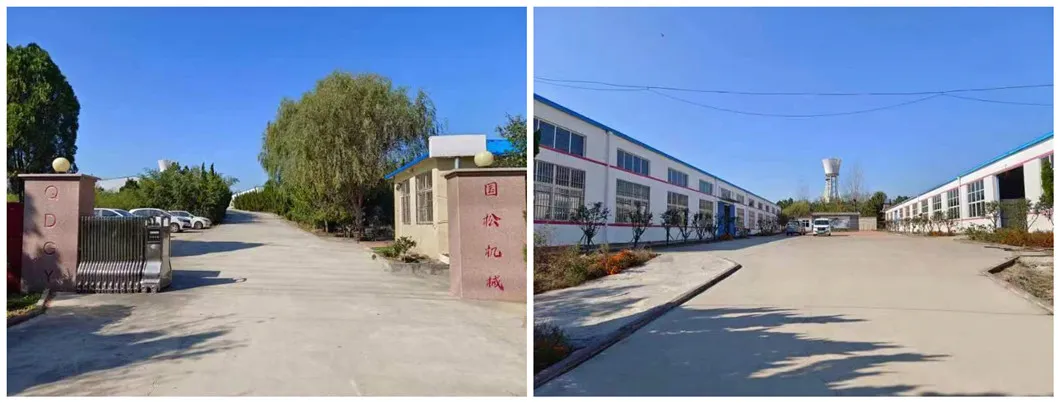

Main Products 1 Main Products 2 Main Products 3
  • Brake hose assemblies
  • Teflon/PTFE S.S braided lines
  • Air brake hoses
  • Female & Male fittings
  • Banjo fittings, bolts & nuts
  • Metal and rubber accessories
Frequently Asked Questions
What standards do these brake hoses comply with?
Our brake hoses meet or exceed FMVSS-106, SAE J1401, and international EU standards. All products are 100% pressure tested before shipping.
What is the pressure rating of the stainless steel braided hose?
The maximum operating pressure is 3,000 psi (207 bar), while the minimum burst pressure is 7,250 psi (500 bar) up to 9,000 psi depending on the specific model.
Are the hoses compatible with all types of brake fluid?
Yes, the Teflon/PTFE inner core is highly resistant and fully compatible with DOT3, DOT4, and DOT4+ brake fluids.
Can I get different colors for the outer cover?
We offer various abrasion-resistant PVC covers in several colors, including clear, yellow, red, green, and blue, providing both protection and aesthetic choice.
What is the warranty period for these products?
We provide a 3-year guarantee on our products. Any technical issues identified during normal use will be supported by our maintenance team.
What temperature extremes can this hose handle?
The hose is engineered to withstand extreme conditions, with a functional temperature range from -73°C (-100°F) to +232°C (+450°F).
