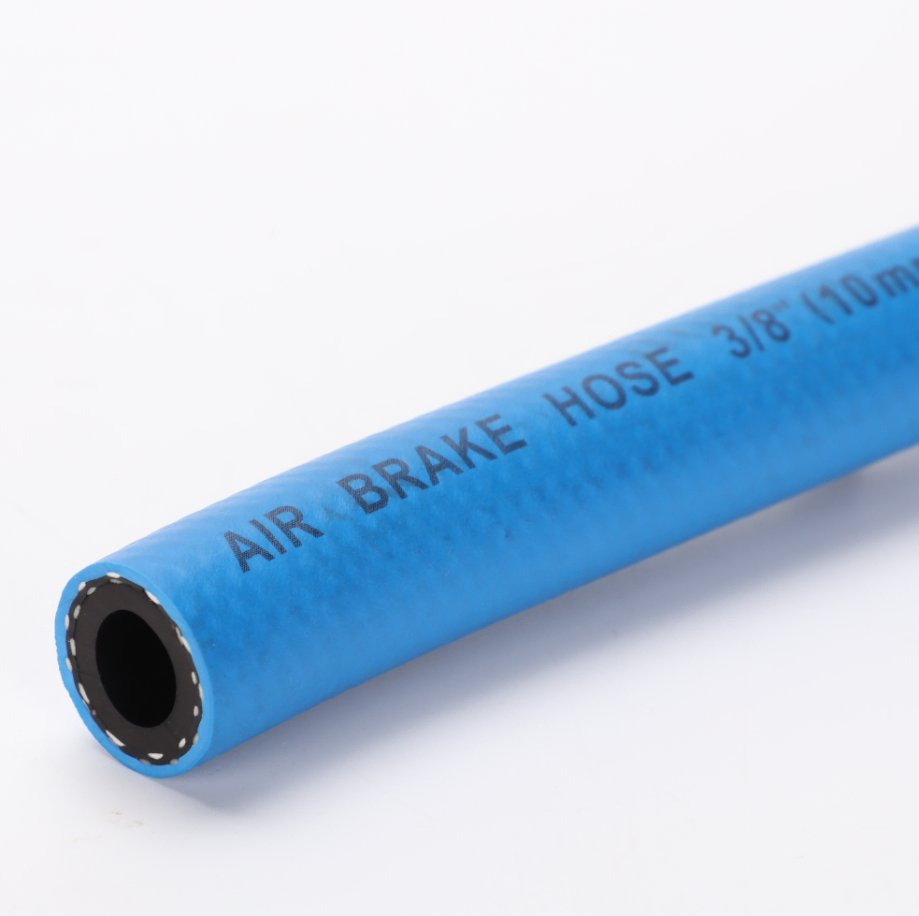

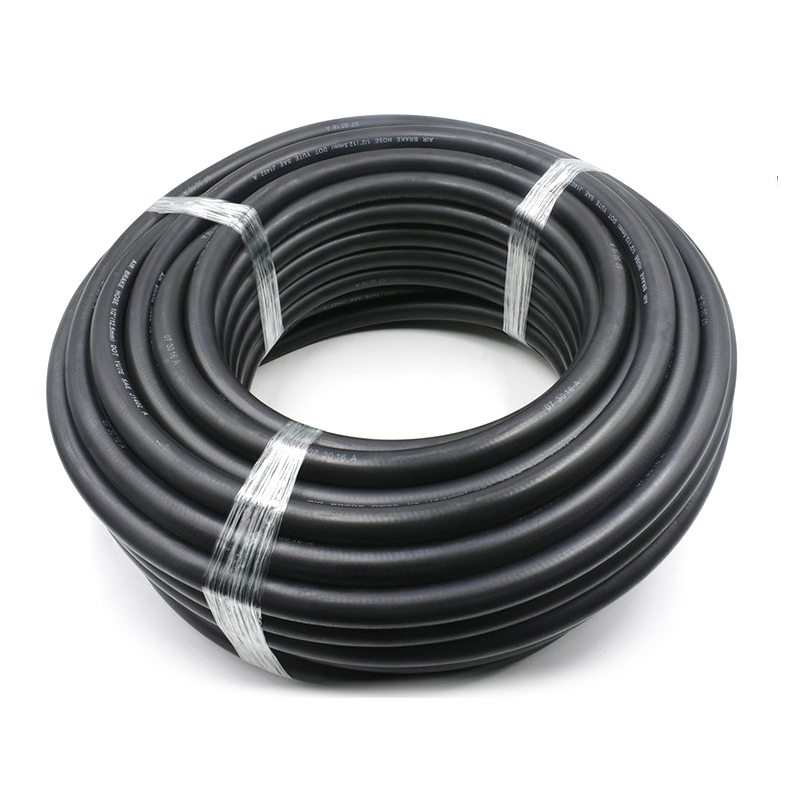

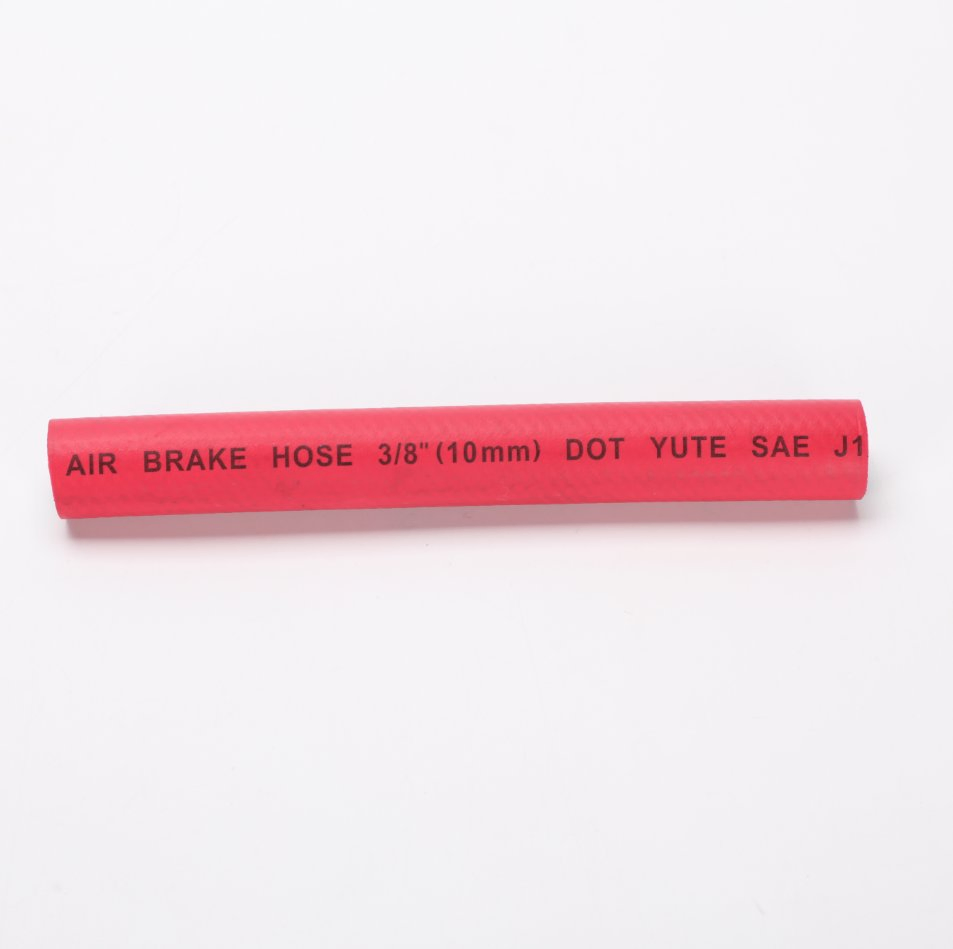

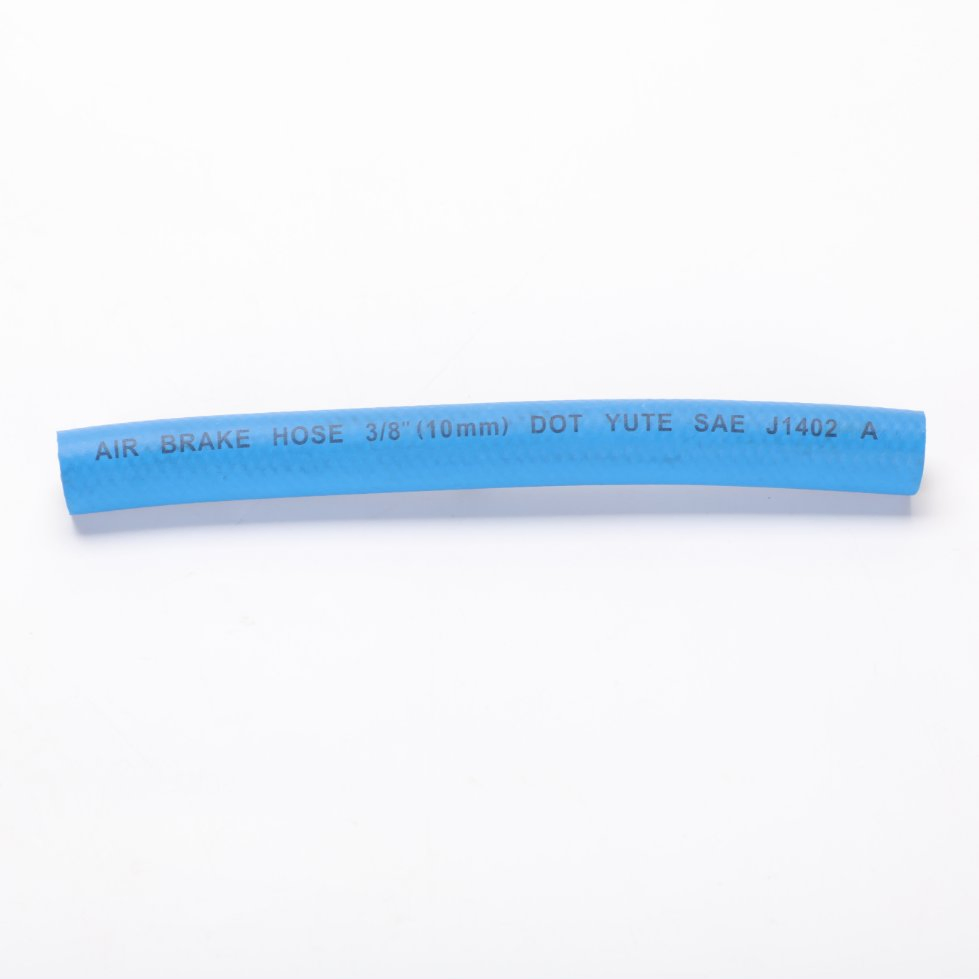

Applications: Use in automotive air brake systems including flexible connections from frame to axle, tractor to trailer, trailer to trailer. Widely used in compressed air brake system of large and medium-sized truck and buses.
Construction:
• Tube: Black synthetic rubber
• Reinforcement: High tensile braided fiber
• Cover: Black, red and blue ASTM IRM 903 oil-, ozone-resistant synthetic rubber compound
Working Temperature: -40ºC ~ +93ºC
Standard: SAE J1402, FMVSS 106
Flexure Test: ≥ 1,000,000 cycles
| No | I.D (Internal Diameter) | O.D (Outer Diameter) | W.P (PSI) | B.P (PSI) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | Tol. | inch | mm | Tol. | Bar | PSI | Bar | PSI | |
| 1 | 1/4 | 6.3 | ±0.3 | 19/32 | 15 | ±0.5 | 15.5 | 225 | 62 | 900 |
| 2 | 5/16 | 8.0 | ±0.4 | 43/64 | 17 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 3 | 3/8 | 9.5 | ±0.5 | 3/4 | 19 | ±0.6 | 15.5 | 225 | 62 | 900 |
| 5 | 1/2 | 12.5 | ±0.5 | 29/32 | 23 | ±0.7 | 15.5 | 225 | 62 | 900 |
| 6 | 5/8 | 16.0 | ±0.6 | 1-1/16 | 27 | ±0.8 | 15.5 | 225 | 62 | 900 |

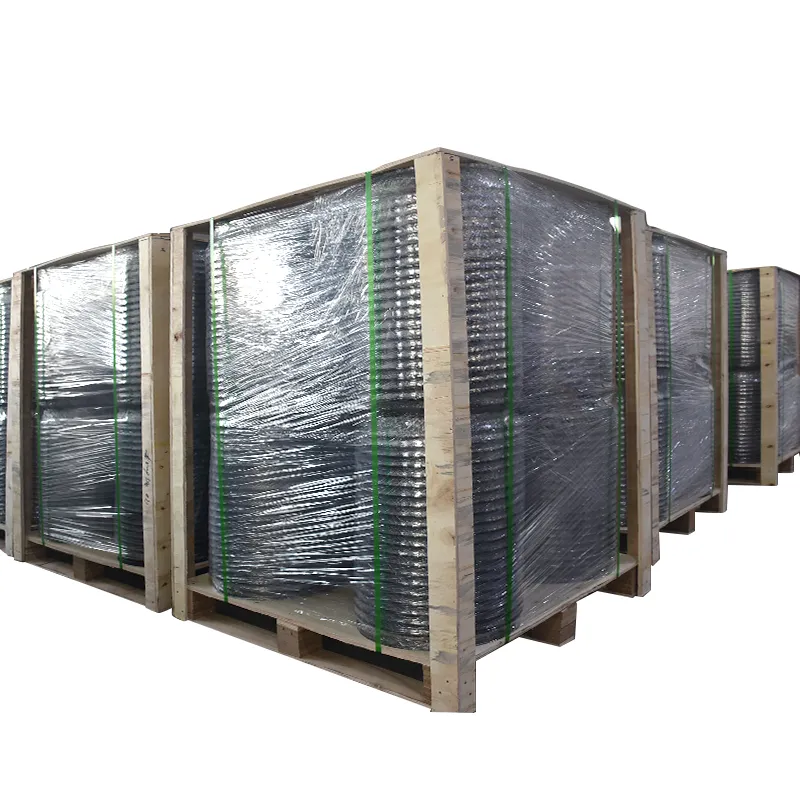

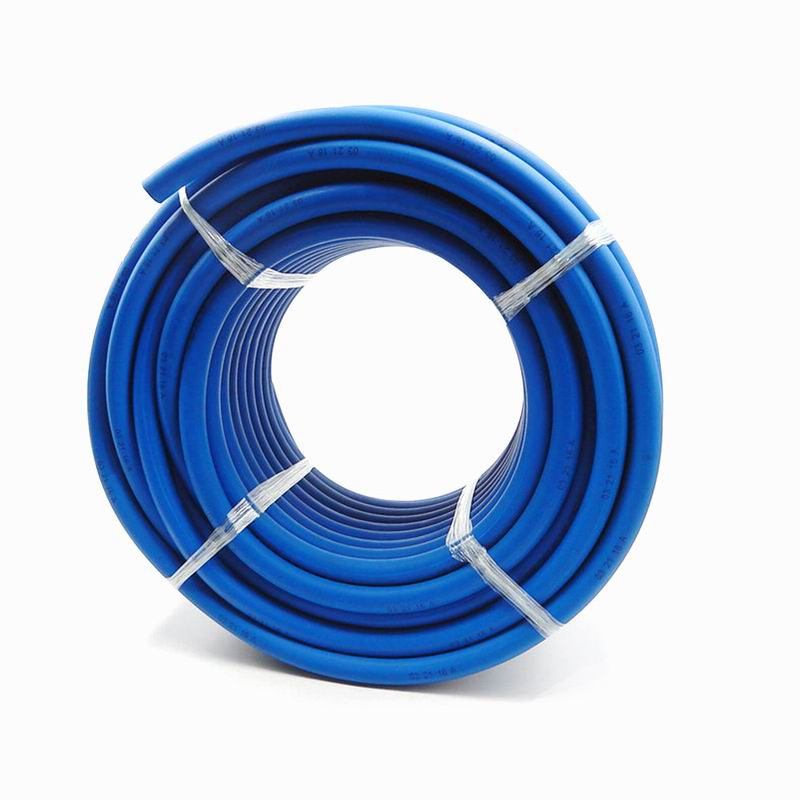

Standard packaging: 100meters + reel + pallet or according to customer's requirements.

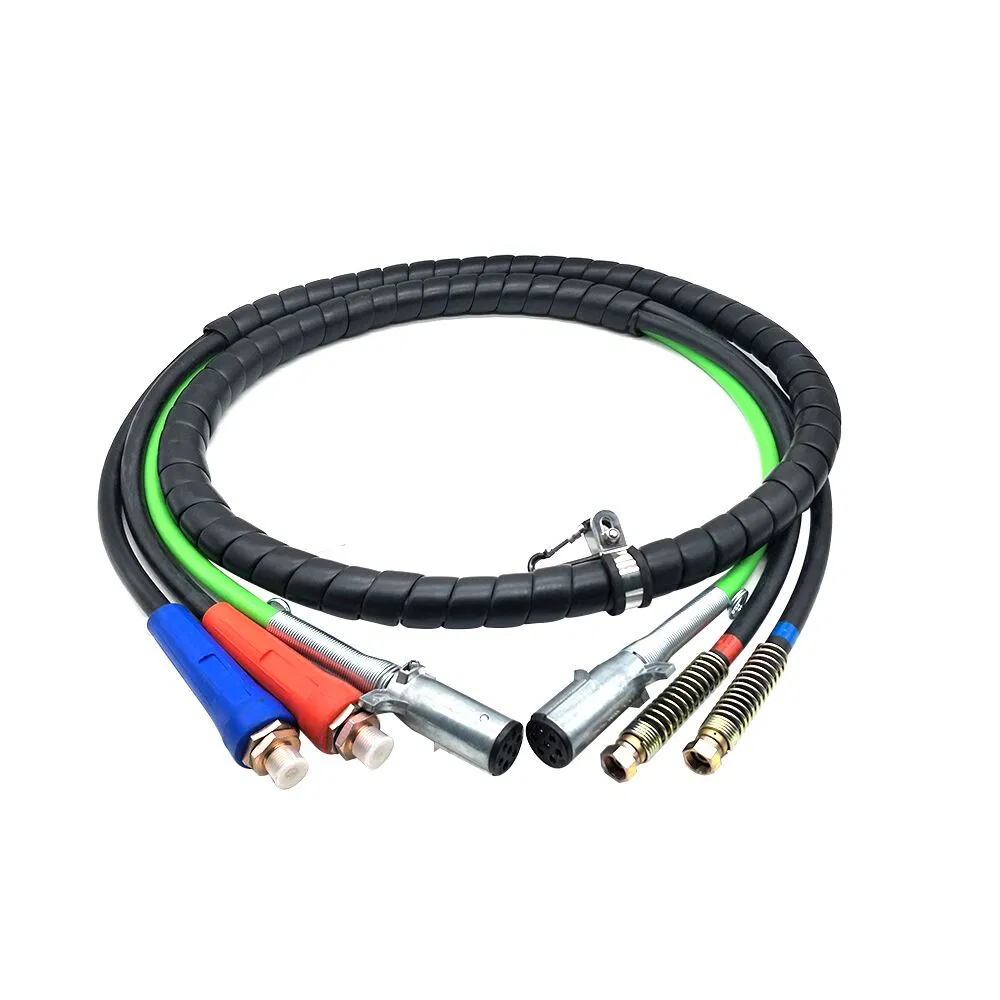

3 in 1 ABS Electric & Air Hose Assembly

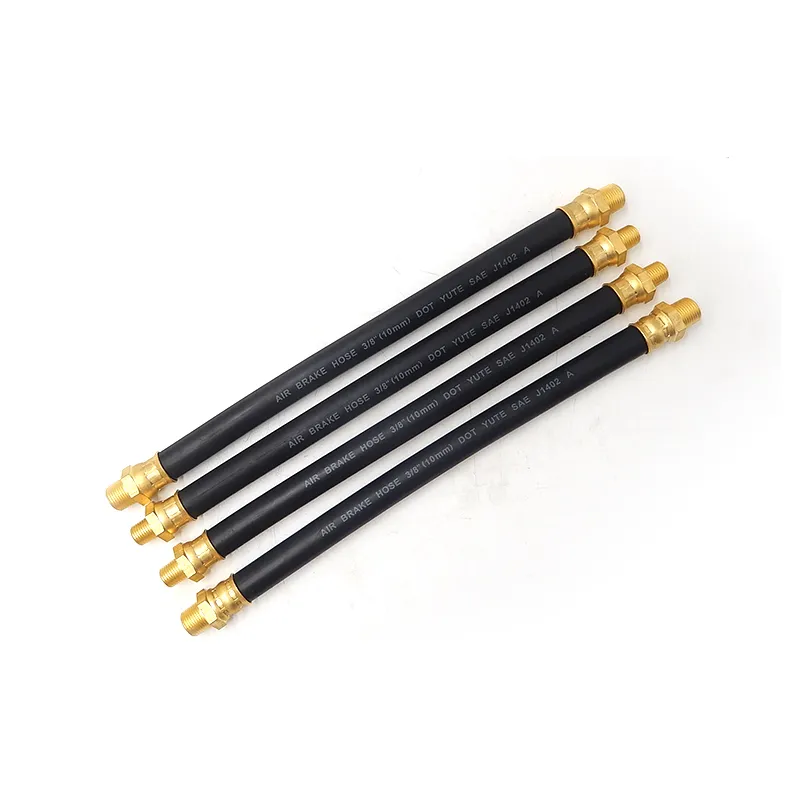

Air Brake Hose Assembly

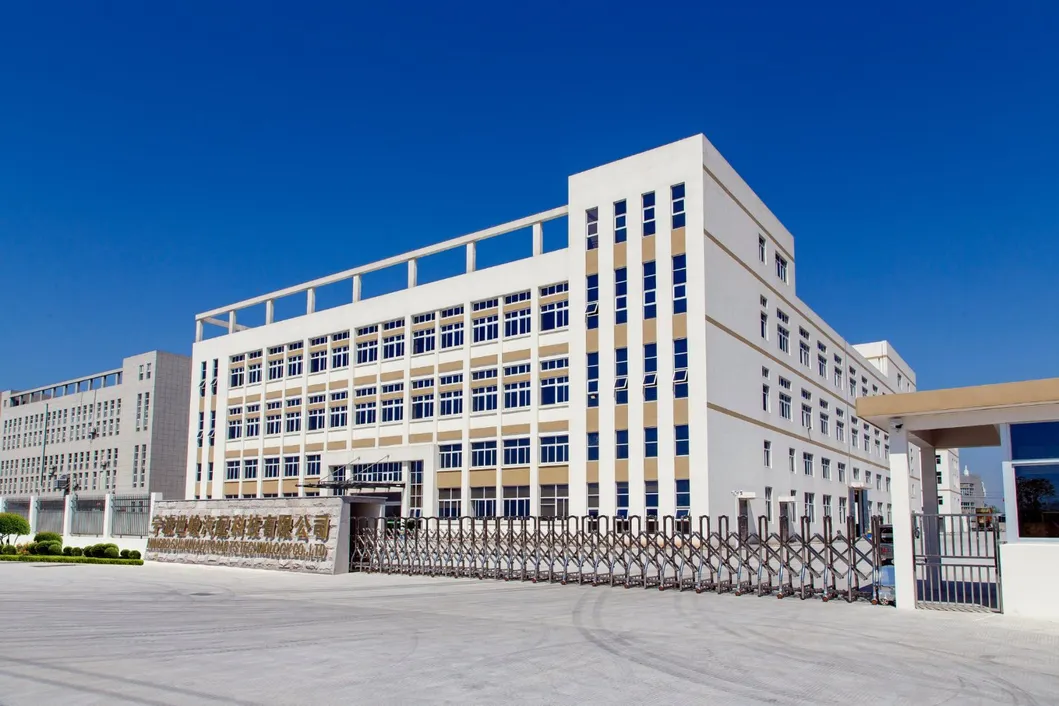

The factory is a national high-tech enterprise specializing in rubber hose manufacturing and exporting. Product lines include Air Brake Hose, Hydraulic Brake Hose, Fuel Hose, Radiator Hose, Refrigerant Charging Hose, and more. The company has passed the IATF 16949 quality management system. All production processes strictly follow quality control procedures.

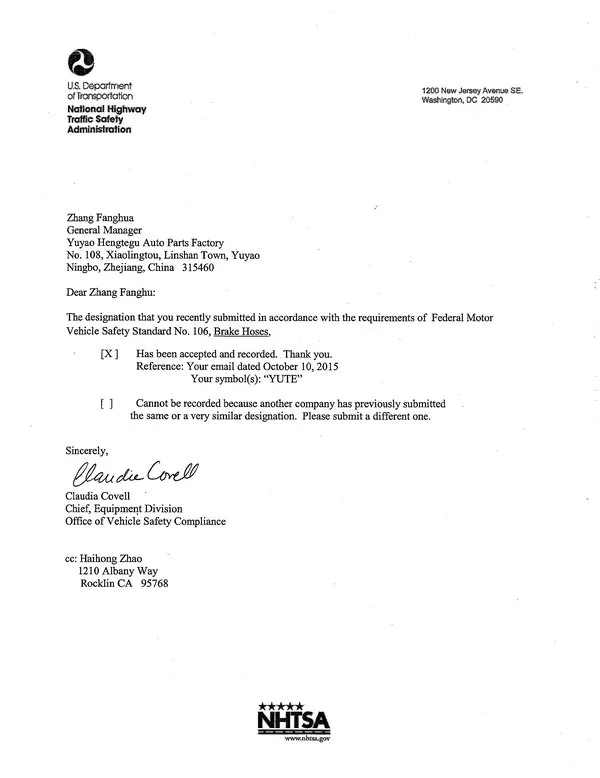

DOT APPROVED
