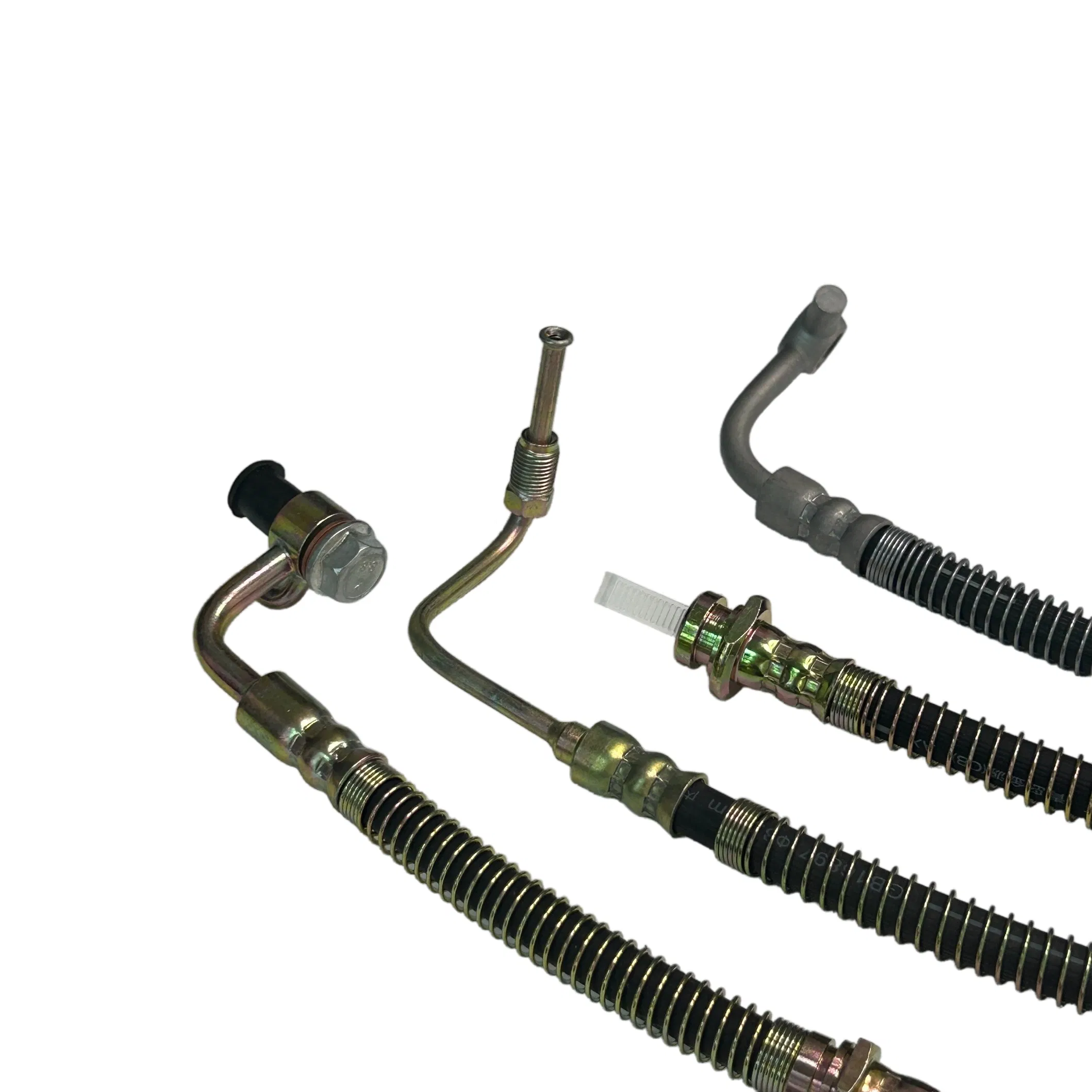

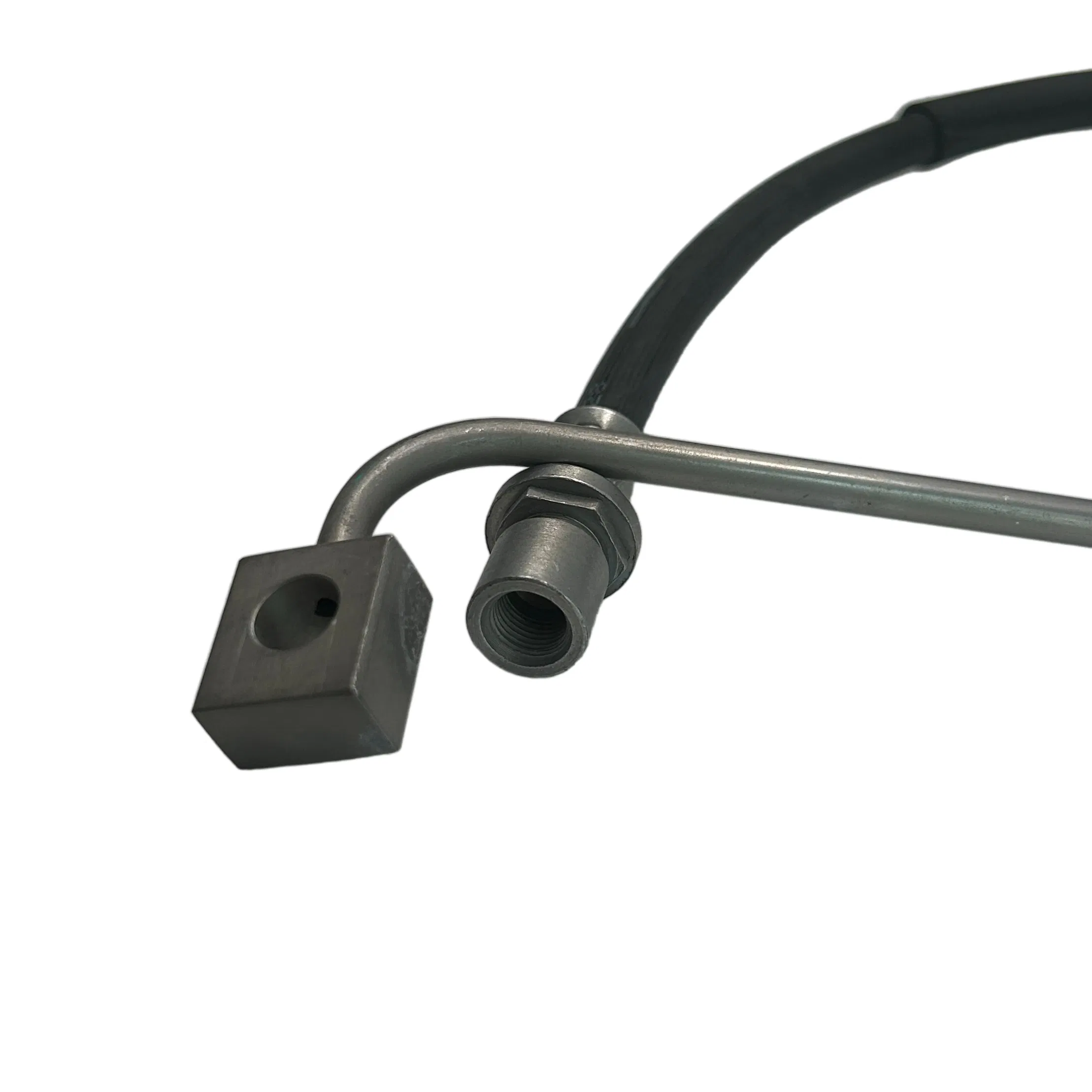

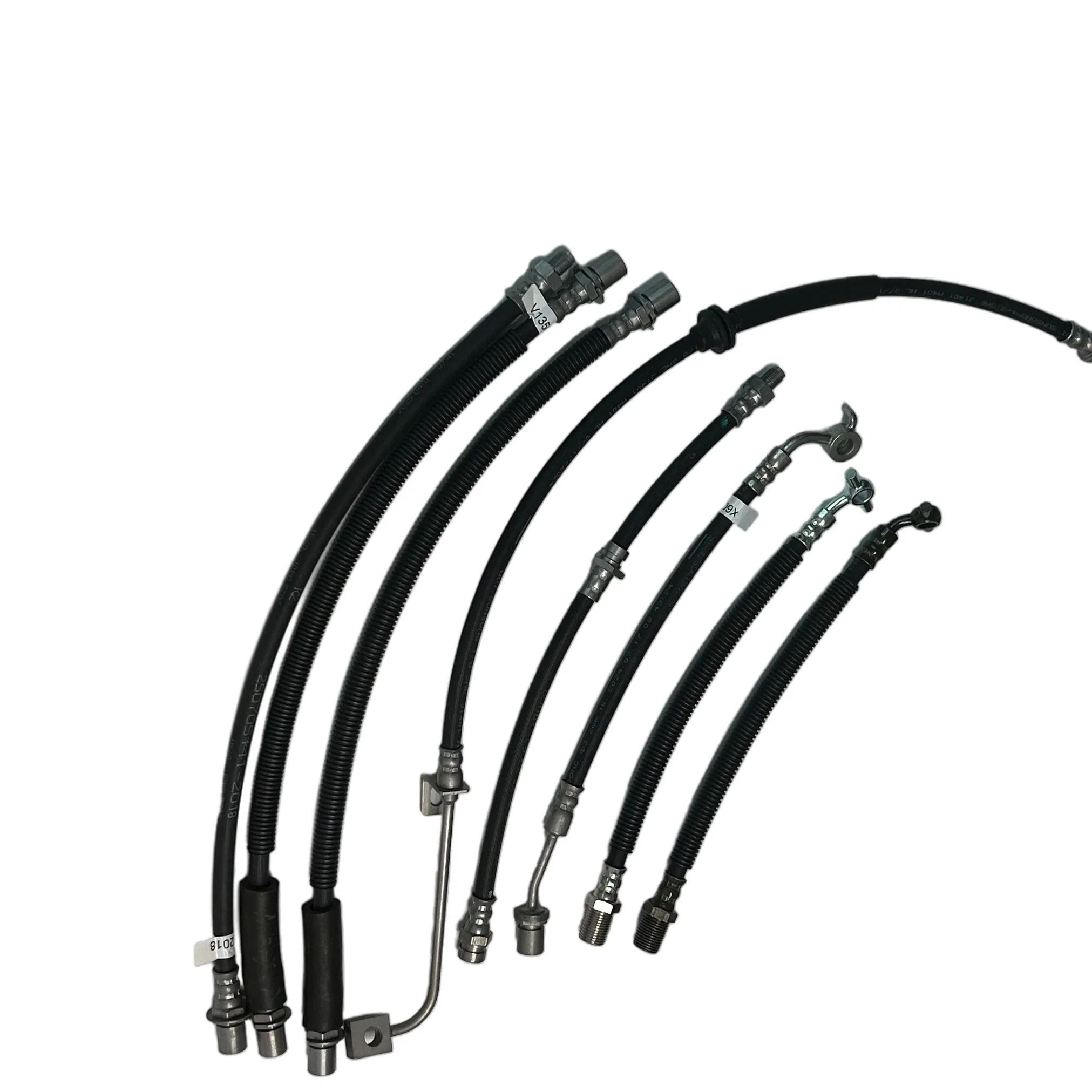

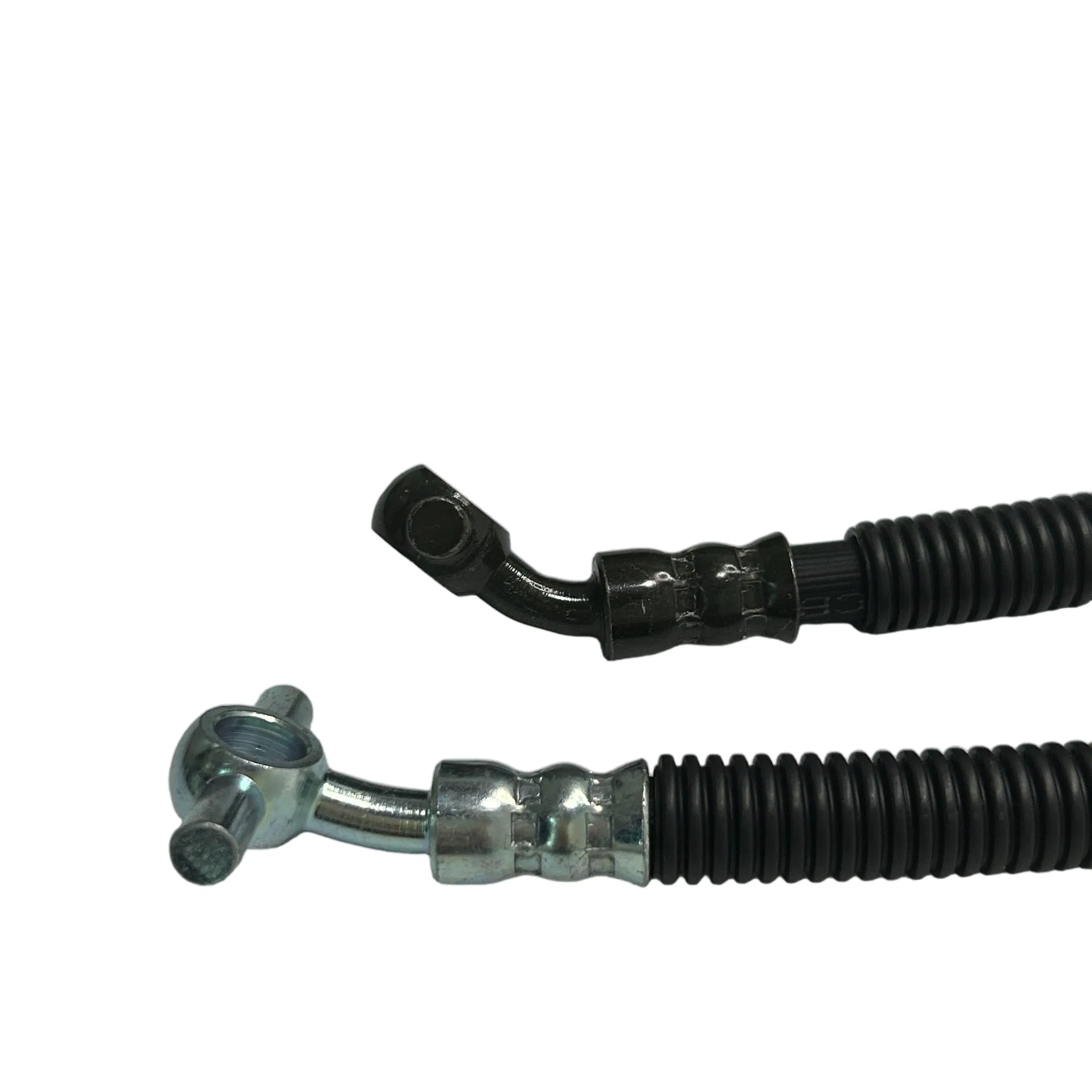

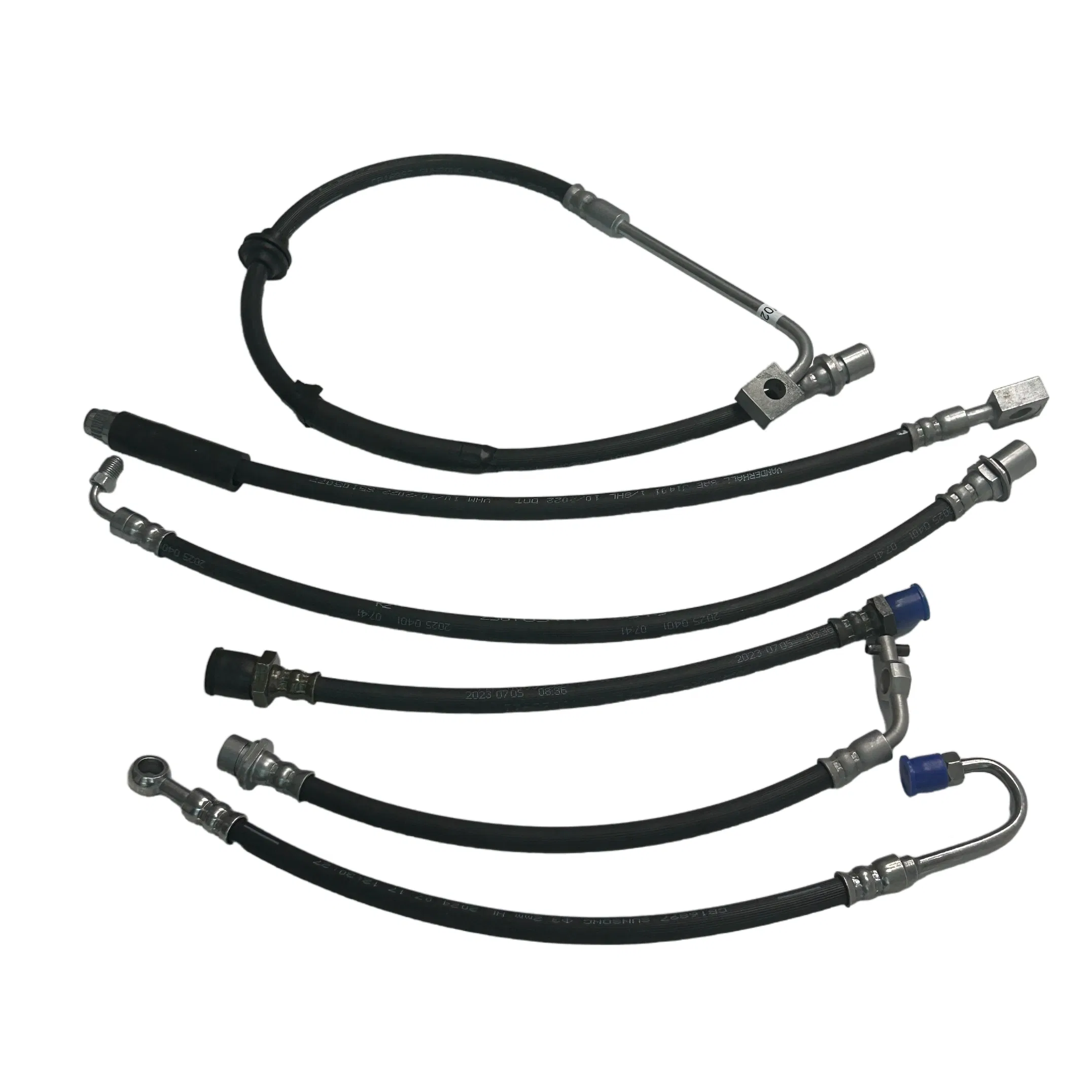

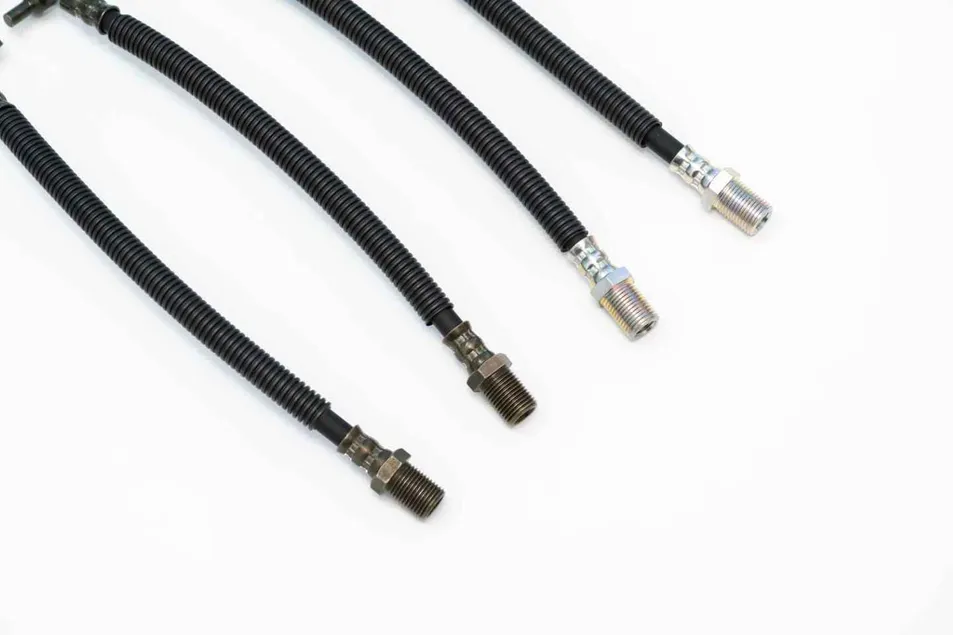

OEM Golf Cart Brake Hose Assembly Manufacturer Hydraulic Brake Line Supplier for Global B2B Buyers

Basic Specifications

Model NO.

Brake hose

Type

Brake System

Material

Steel / EPDM

Certification

ISO/TS16949, IATF-16949, DOT, CE

Inside Diameter

1/8 Inch

Inner Material

EPDM Synthetic Rubber

Enhancement

Fibre Weaving

Origin

China

Product Description

High-Performance Brake Line Systems

We specialize in the manufacturing of high-performance brake tubing systems, offering a complete range of products to meet the diverse needs of the global automotive industry. Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.

Technical Specifications

Category	Type	Construction & Material	End Fittings	Standard Dimensions	Pressure Rating	Customization
Brake Hose	Hydraulic Brake Hose	ECE R90 synthetic rubber, Textile/steel wire reinforcement	M10×1.0, M12×1.0, 3/8-24 UNF; Zinc-plated/Stainless steel	ID: 3/16" (4.75mm); Length: 12-60"	2,500 PSI (172 bar)	Custom length & fitting combinations
	PTFE Stainless Braided	PTFE inner liner, 304/316 stainless braid, PVC/Nylon cover	AN Fittings: -3AN, -4AN; Metric: M10, M12; Banjo	ID: 0.19-0.25"; Custom Length	4,000+ PSI (276+ bar)	Braid density, cover materials
	Air Brake Hose	Oil-resistant synthetic rubber, Weather-resistant cover	1/4" NPT, 3/8" NPT, M22×1.5; Push-to-connect	ID: 1/4" (6.3mm), 3/8" (9.5mm)	150 PSI (10 bar)	Special lengths & cams
Metal Brake Line	Steel Brake Line	Double-wall galvanized steel, SAE J1047, Zinc plating	45° inverted (SAE), bubble (ISO); M10×1.0	OD: 3/16", 1/4"; Wall: 0.028-0.035"	3,000 PSI (207 bar)	Specific bends and fittings
	Copper-Nickel Line	CuNiFe alloy (Kunifer), Corrosion resistant	45° inverted, bubble; Various adapters	OD: 3/16", 1/4"; Wall: 0.028-0.035"	3,000 PSI (207 bar)	Complex bend patterns
	Stainless Steel Line	304/304L stainless steel, High strength	AN Fittings: -3AN, -4AN; Metric/SAE Flare	OD: 3/16", 1/4"; Wall: 0.028-0.035"	4,000+ PSI (276+ bar)	Medical-grade polish, coatings

Customization Options

We provide highly flexible custom brake tubing solutions designed to meet your exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel, available in both metric and imperial sizes. We offer an extensive variety of end fittings with multiple options for threads, angles, and materials.

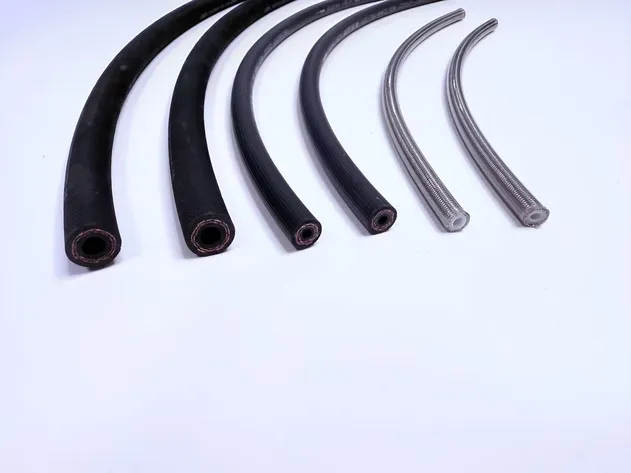

Flexible Hose Solutions

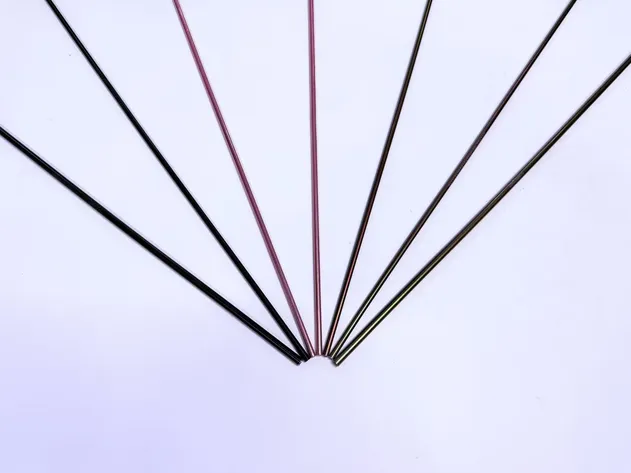

Precision Metal Piping

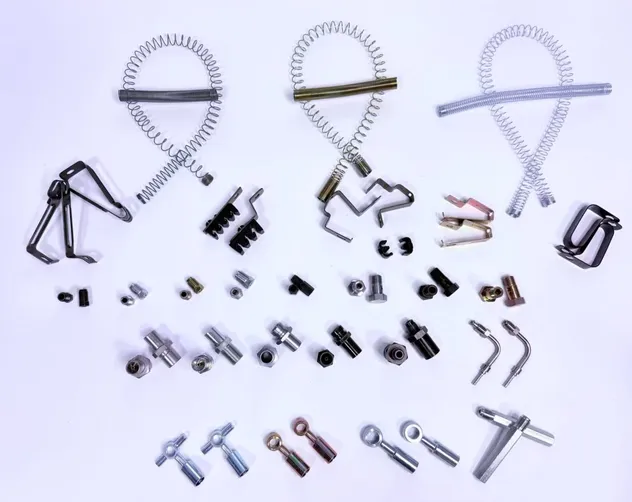

Specialized Metal Components

Product Types

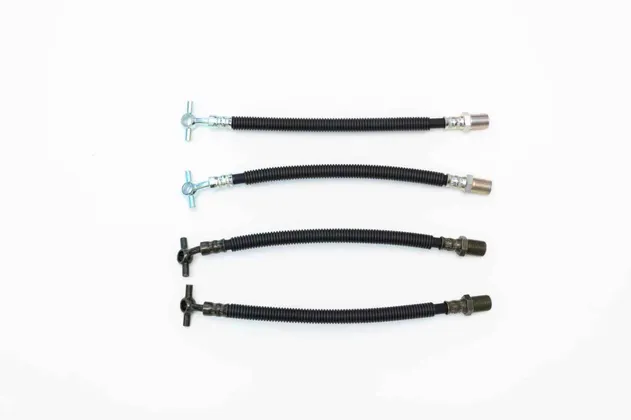

Rubber Brake Hose

PTFE Hose with Metal Braid

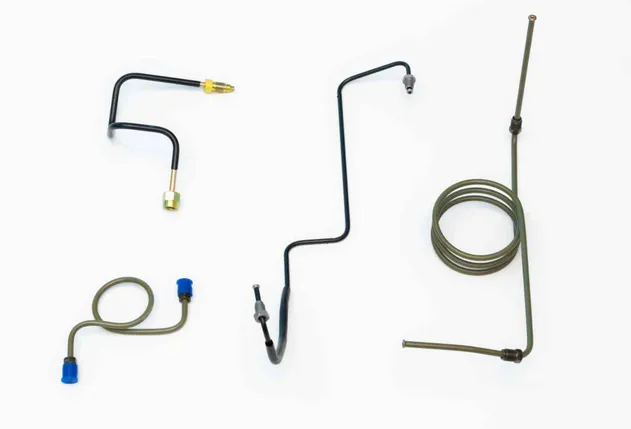

Rigid Metal Brake Line

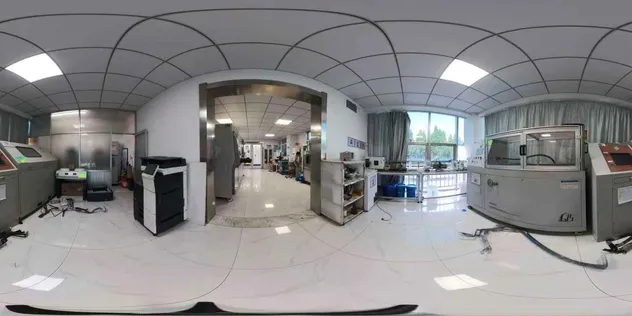

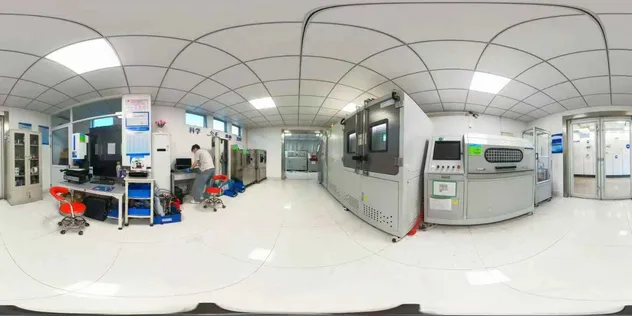

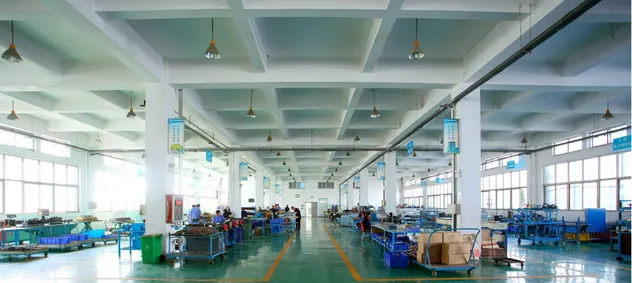

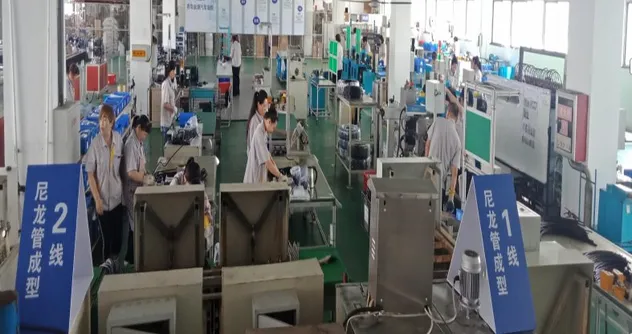

Manufacturing Capabilities & Testing

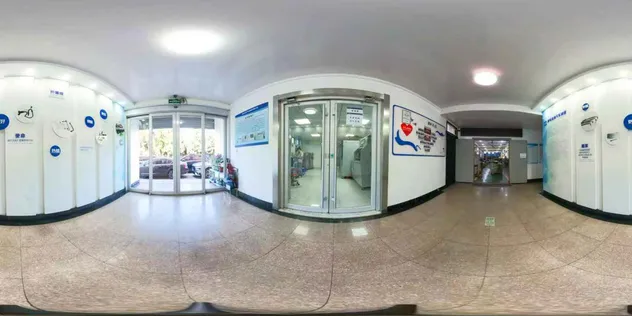

Our Quality Assurance Center utilizes state-of-the-art equipment to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements. We utilize pulse test rigs, environmental chambers, and burst pressure testers to ensure performance under demanding conditions.

Cooperation Models

OEM & Tier 1 2D/3D CAD drawings, Technical specifications, Material & performance standards (SAE / ISO / ECE R90).

Aftermarket Distributors OE part numbers and physical samples for precise replacement matching.

Modification & Motorsport Custom pressure/temperature data, 3D models, and specialized fitting styles for high-performance needs.

Frequently Asked Questions

What materials are used for the brake hoses?

We use EPDM synthetic rubber, PTFE with stainless steel braiding, and high-grade oil-resistant synthetic rubber depending on the specific application requirements.

Do your products meet international safety standards?

Yes, our products are compliant with IATF 16949:2016, ISO 9001, DOT certification, and ECE R90 standards to ensure global safety and quality compliance.

Can you provide custom lengths and fittings?

Absolutely. We offer comprehensive customization including any length, various thread types (Metric, UNF, NPT), and multiple fitting angles (45°, 90°, banjo, etc.).

What is the maximum pressure rating for your hoses?

Our PTFE Stainless Braided Hoses can handle pressures of 4,000+ PSI (276+ bar), while standard hydraulic brake hoses are rated for 2,500 PSI (172 bar).

What types of metal brake lines do you offer?

We manufacture double-wall galvanized steel lines, Copper-Nickel (Kunifer) alloy lines for superior corrosion resistance, and high-strength 304/304L stainless steel lines.

What surface treatments are available for metal components?

We offer various corrosion-resistant coatings including zinc plating, yellow chromate plating, nickel plating, and passivation.
