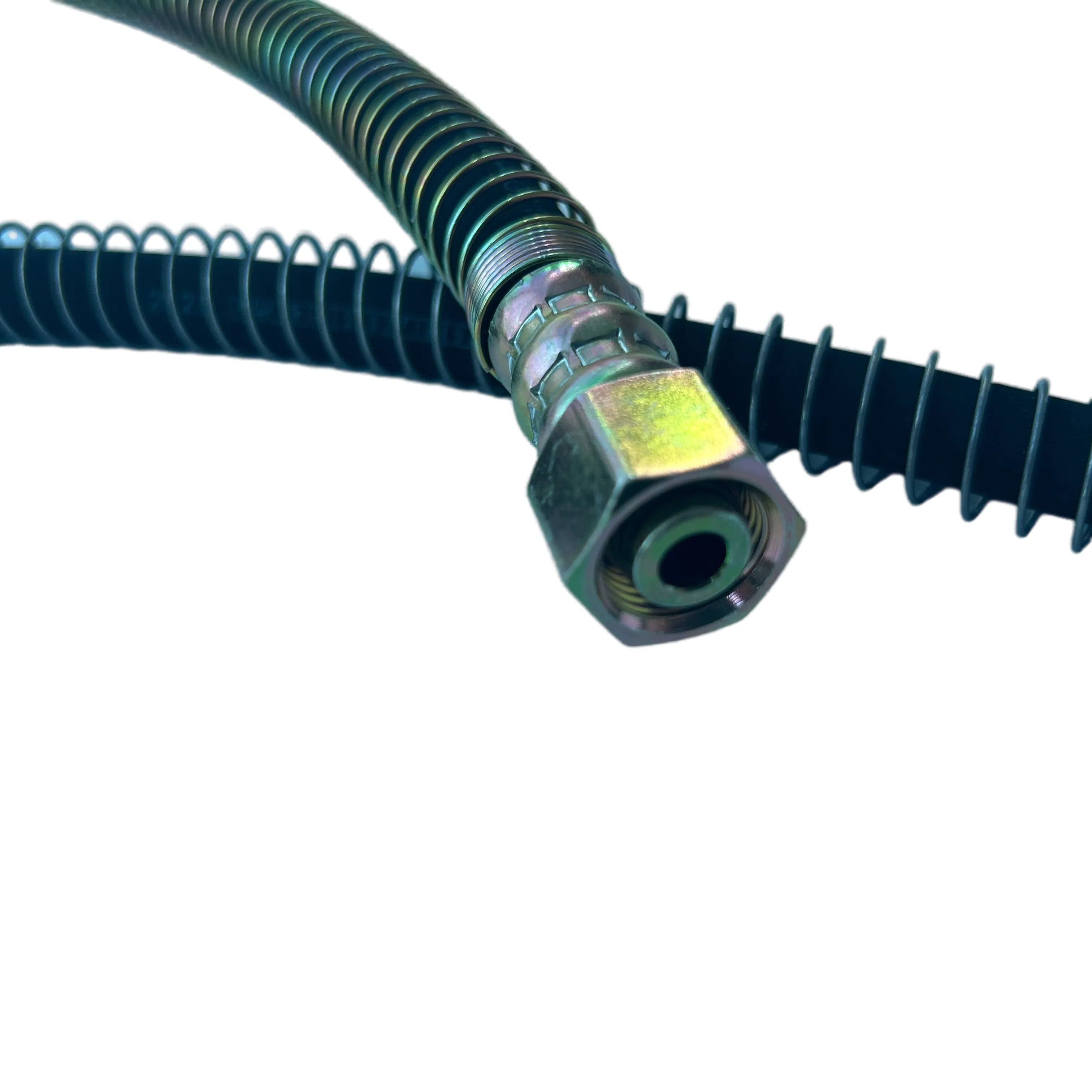

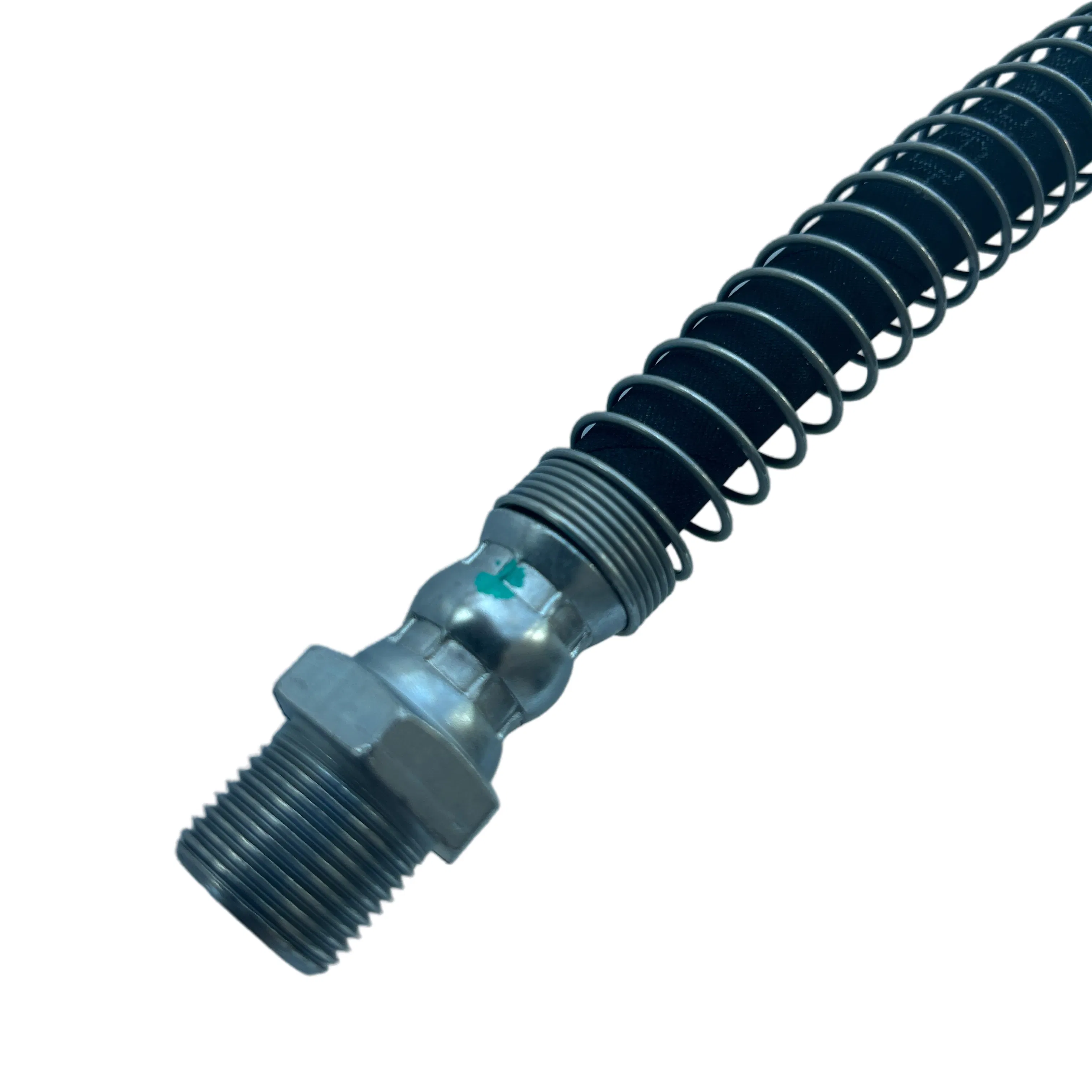

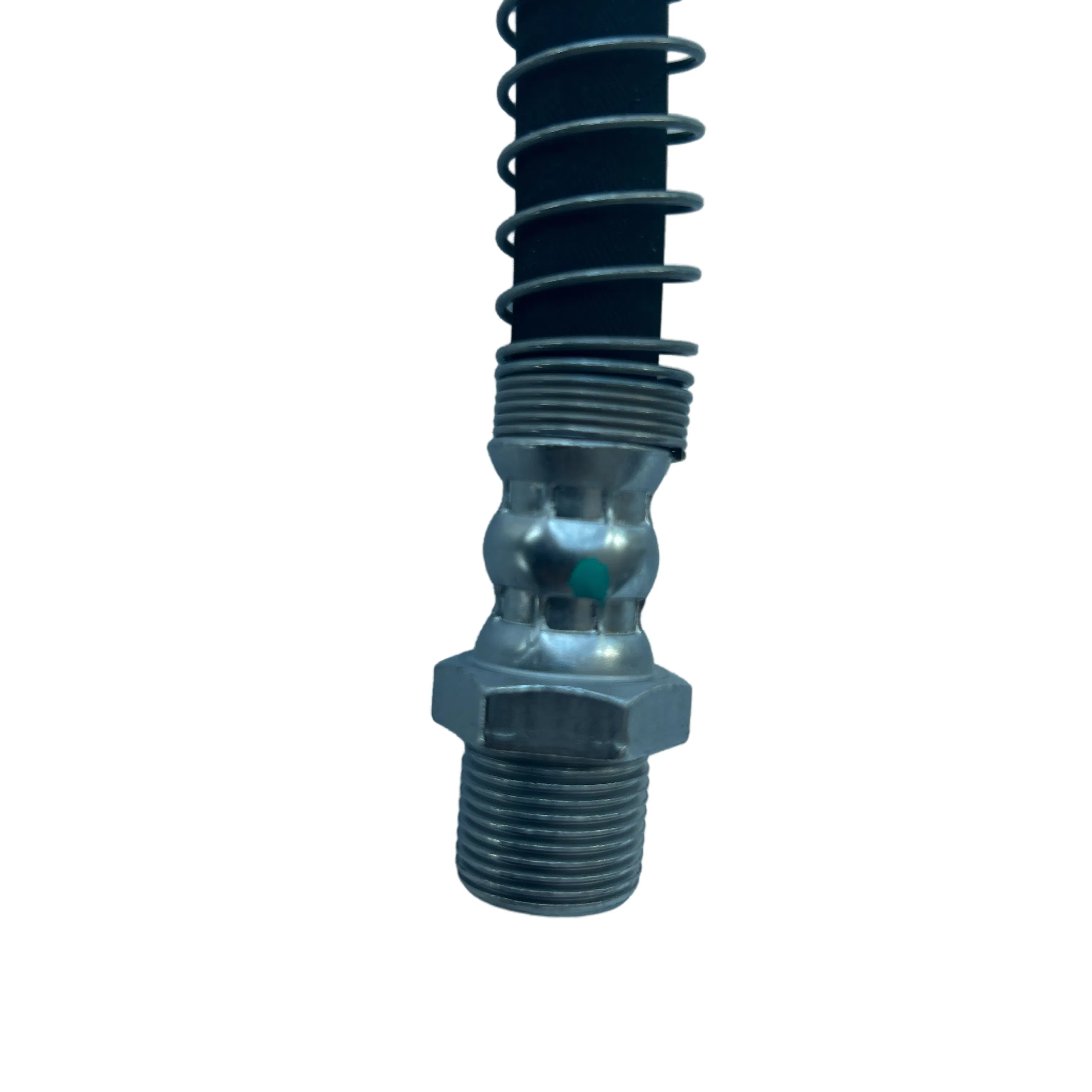

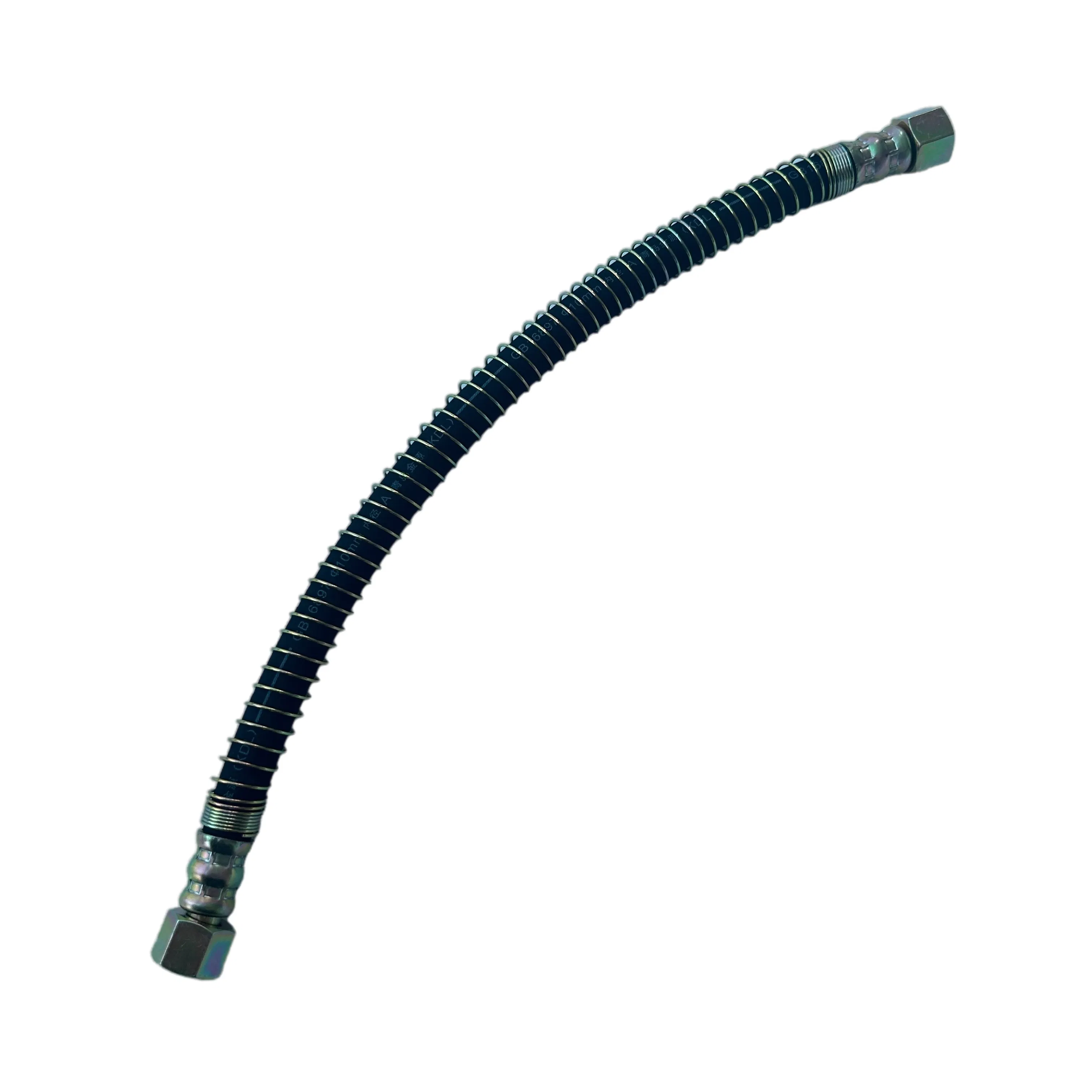

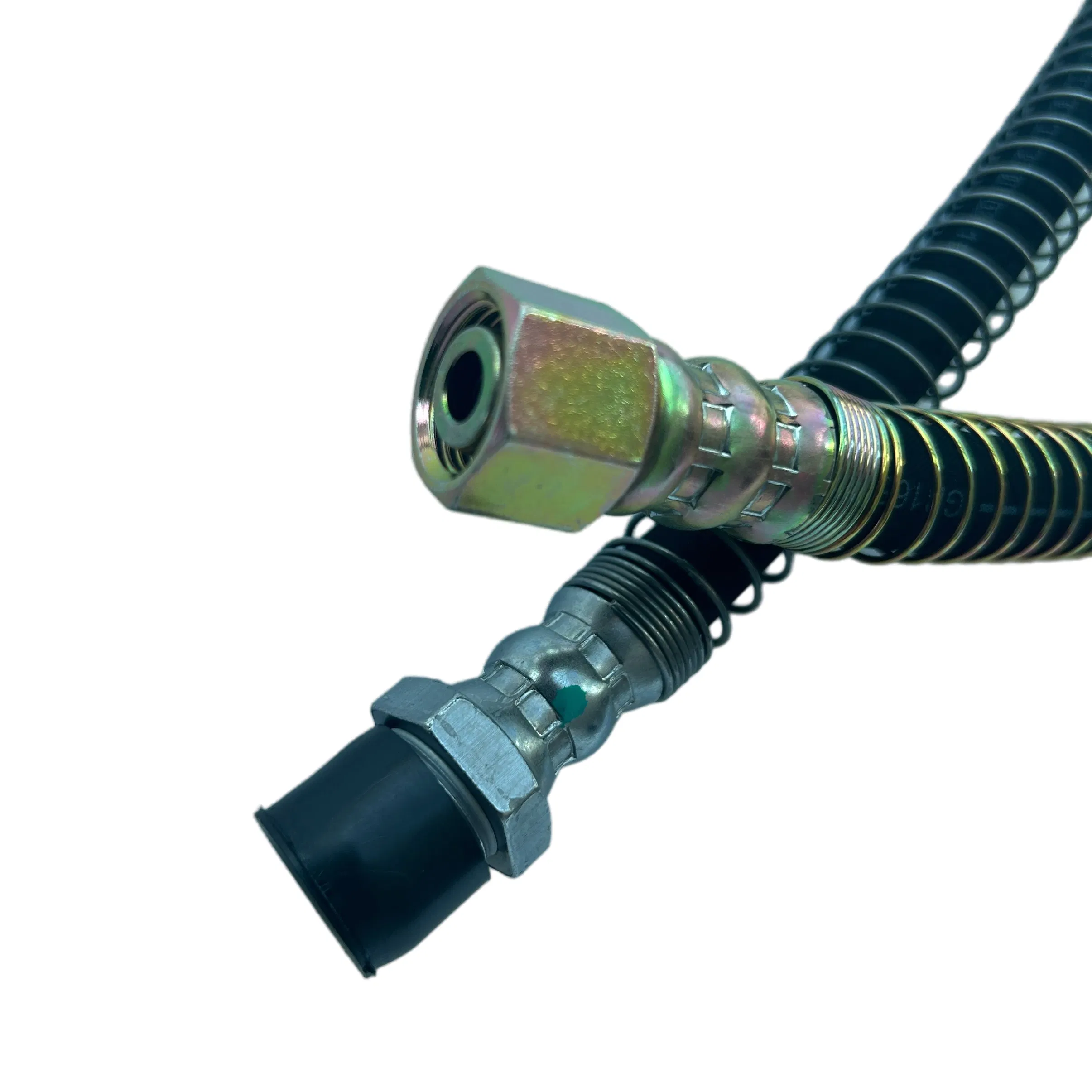

Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
1 / 5
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power
Heavy Duty EPDM Clad Brake Line for Superior Stopping Power

Heavy Duty EPDM Clad Brake Line for Superior Stopping Power

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
Brake hose
Type
Brake System
Material
Steel
Position
Front
Certification
ISO/TS16949, IATF-16949
Classification
Disc
Drum Brakes
Brake Drum
Inner Tube Material
EPDM
Cladding Material
EPDM Synthetic Rubber
Enhancement Layer
Fibre Weaving
Inside Diameter
1/8 Inch
Origin
China
Production Capacity
100000 Sets/Year
Trademark
JYLEAN

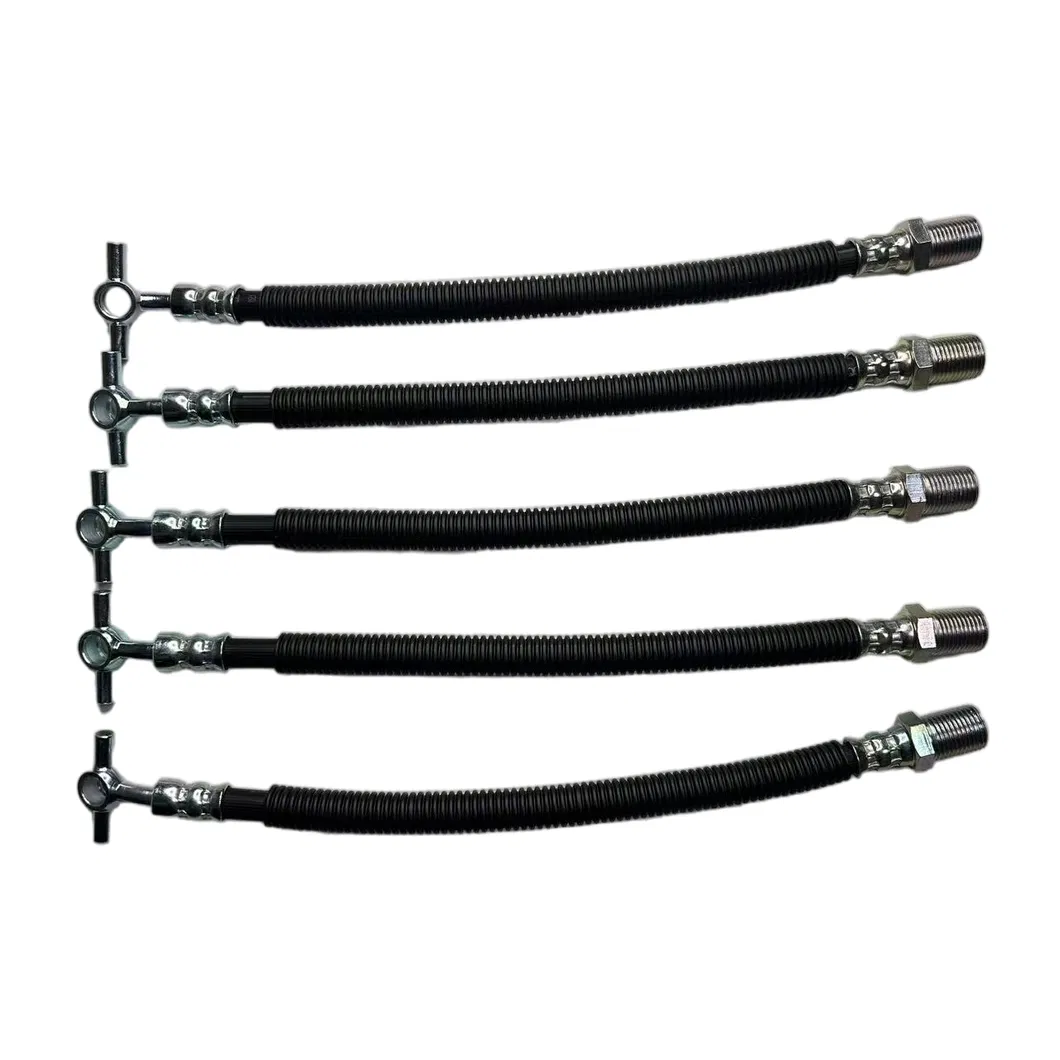

EPDM Brake Hose

Product Description

EPDM Rubber Hose 1/8 Inch Brake Hose
This high-performance EPDM rubber brake hose is engineered to deliver exceptional durability and reliability in demanding braking systems. Crafted with a 1/8-inch inner diameter, the hose features a robust braided reinforcement layer for enhanced pressure resistance and structural integrity, ensuring safe and precise fluid transmission in automotive, motorcycle, or industrial applications.
The EPDM (Ethylene Propylene Diene Monomer) rubber construction provides superior resistance to heat, ozone, abrasion, and hydraulic fluids, making it ideal for extreme temperatures (-40°F to +250°F) and harsh environments. Its flexibility allows for easy installation in tight spaces while maintaining leak-free performance under high-pressure conditions.
  • 1/8" ID, braided reinforcement for strength
  • EPDM rubber resists heat, oil, and weathering
  • High-pressure tolerance with minimal expansion
  • Flexible, kink-resistant design
  • Compliant with SAE/DOT safety standards

Technical Specifications

Stats Description Stats Description
Materials Inner: EPDM rubber; Reinforcement: High strength polyester/wire braid; Cover: EPDM Applicable Medium Brake fluid (DOT 3/4/5.1), air, water based liquid
Inside Diameter 1/8 inch (3.18 mm) Certification SAE J1401, DOT FMVSS 106, ISO 3996
Outside Diameter Approx. 6-8 mm Weather Fastness Ozone, UV, and aging resistance
Working Pressure 15-25 MPa (2175-3625 psi) Pliability High bending (radius approx. 5×OD)
Burst Pressure ≥ 60 MPa (8700 psi) Temperature -40°C to +120°C (Peaks up to 150°C)
Brake Line Detail 1
Brake Line Detail 2
Brake Line Detail 3

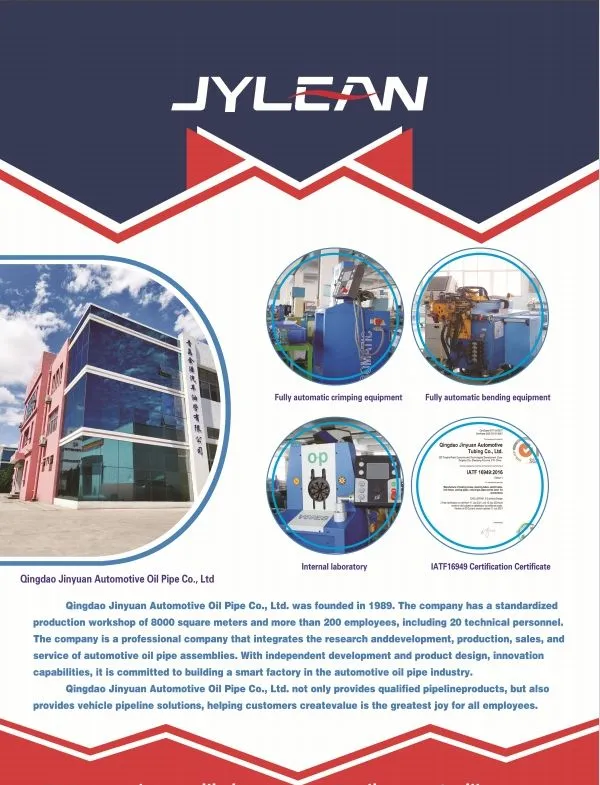

Product View 1

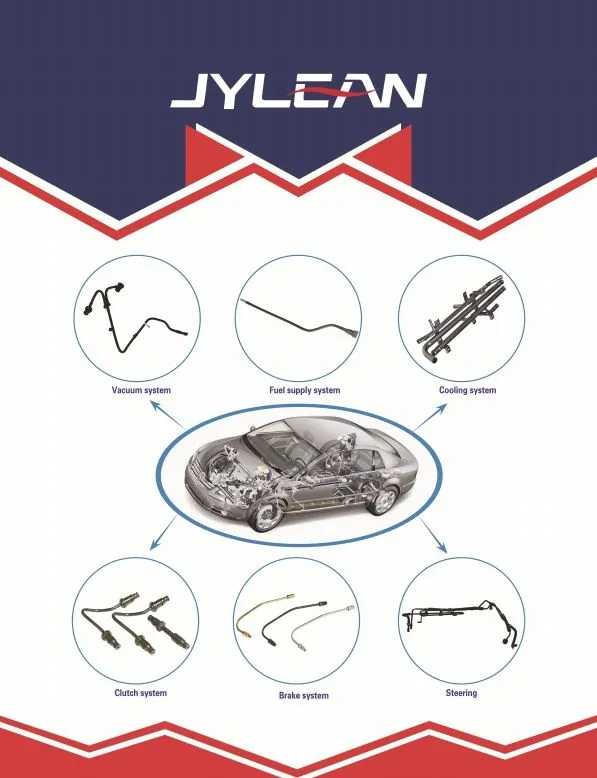

Product View 2

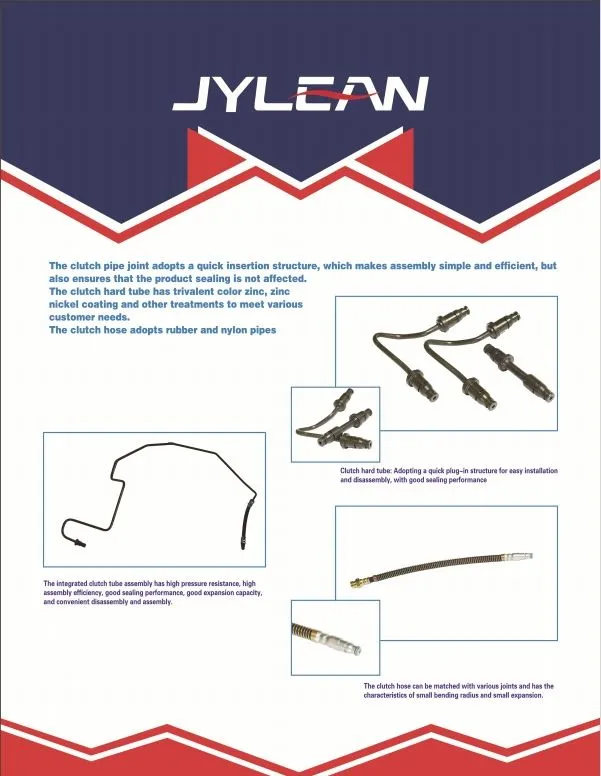

Product View 3

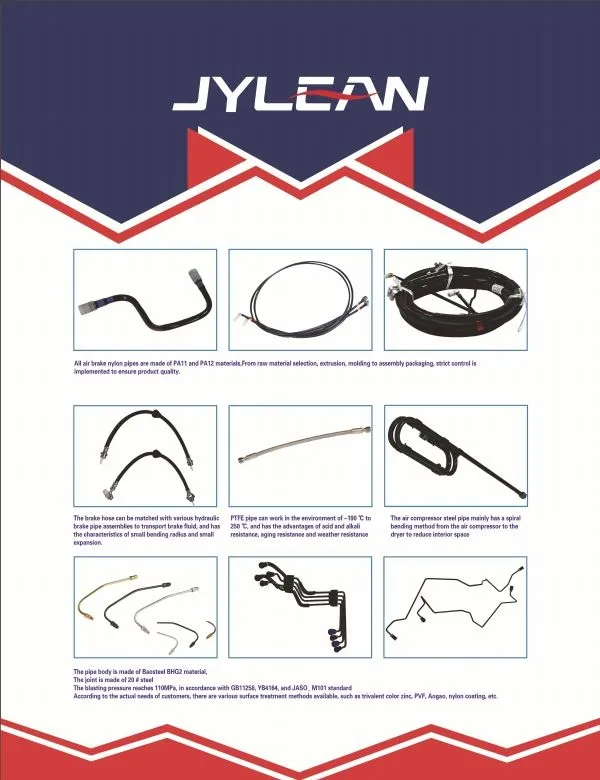

Product View 4

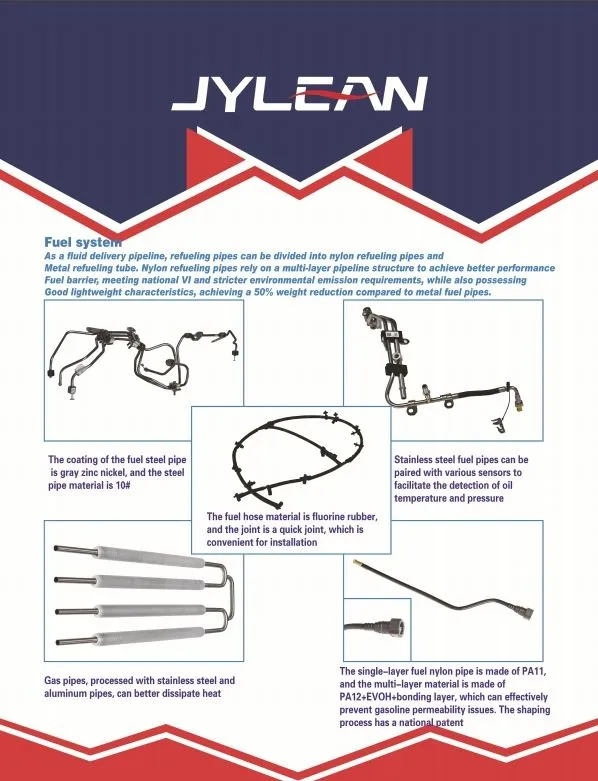

Product View 5

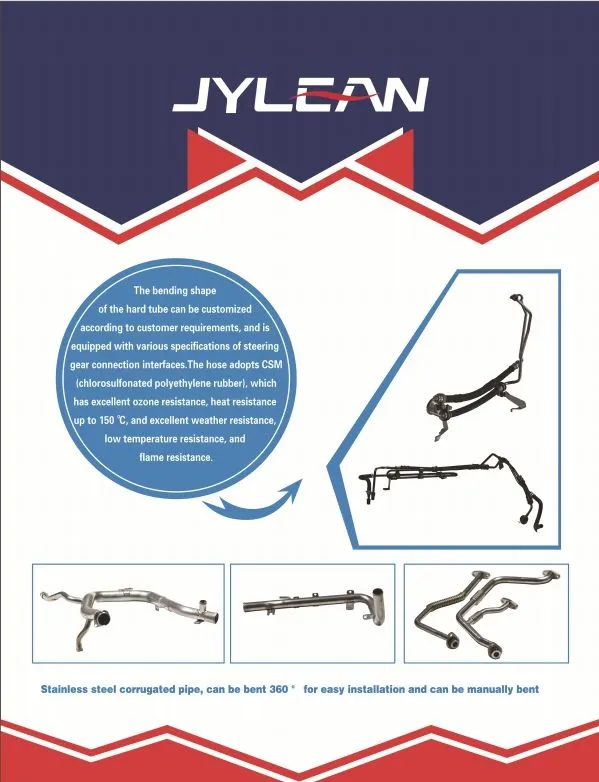

Product View 6

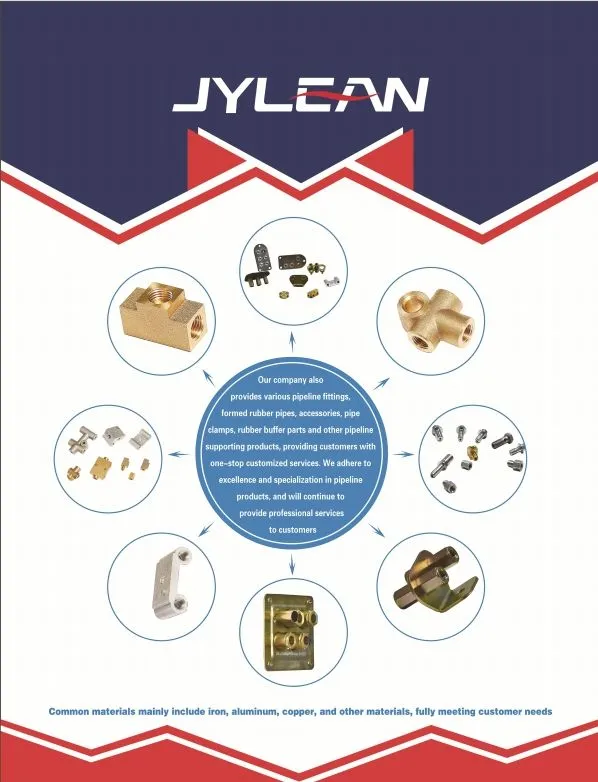

Product View 7

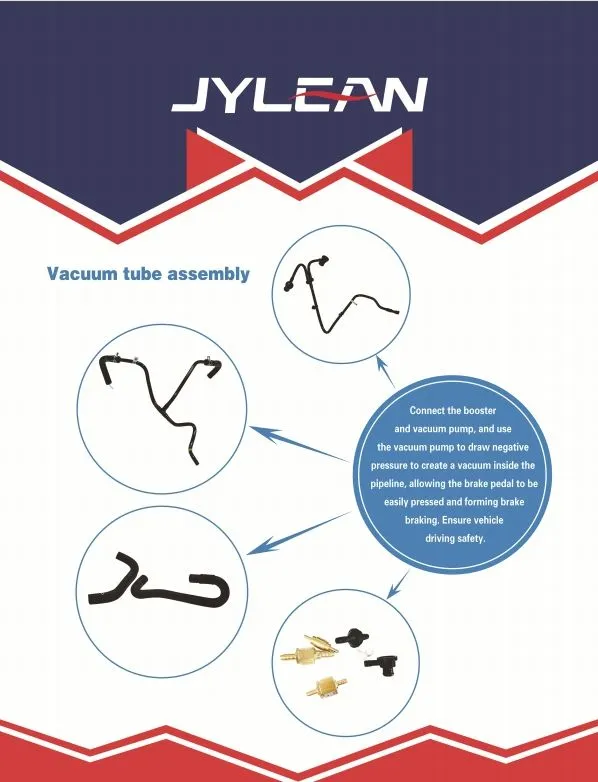

Product View 8

Frequently Asked Questions

Who is the manufacturer?
JYLEAN is a professional automotive pipe manufacturer with over 30 years of experience, exporting to more than 10 countries with a solid reputation.
Can you produce according to a sample?
Yes, we have the capability to manufacture products based on your specific samples or technical drawings.
What is your sample policy?
Usually, the product sample is provided free of charge, although the customer is responsible for the shipping costs.
What are your terms of payment and delivery?
We typically accept 30% via telegraphic transfer as a deposit and 70% before delivery. Standard delivery terms include FOB, CIF, EXW, and CFR.
What is the typical delivery timeframe?
Generally, the delivery time is approximately 45 days, depending on the specific items and order quantity.
Do you conduct quality inspections before shipping?
Yes, we conduct 100% visual inspections and performance tests on all goods before they are dispatched.
