Heavy Duty Truck Trailer Brake Drum America Type 13ton 3602b Axle Drum Brakes

1 / 5

Heavy Duty Truck Trailer Brake Drum America Type 13ton 3602b Axle Drum Brakes

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.:ZYKJ485B1

Type:Brake Drums

Material:Steel / HT250

Position:Rear

Classification:Drum / Brake Drum

OE No.:3600A

Application:Trucks / Trailer

Axle Tube:150X150/127mm

Thickness:12/14/16/18mm

HS Code:8708309500

Capacity:5000 Sets/Month

Origin:China

Certification: ISO/TS16949, ISO13485, ISO14001, BSCI, IATF-16949, ISO9001, ISO9002, AMECA, DOT, ECE, FSC, HACCP, GSV, GMP

🚚 Product Description

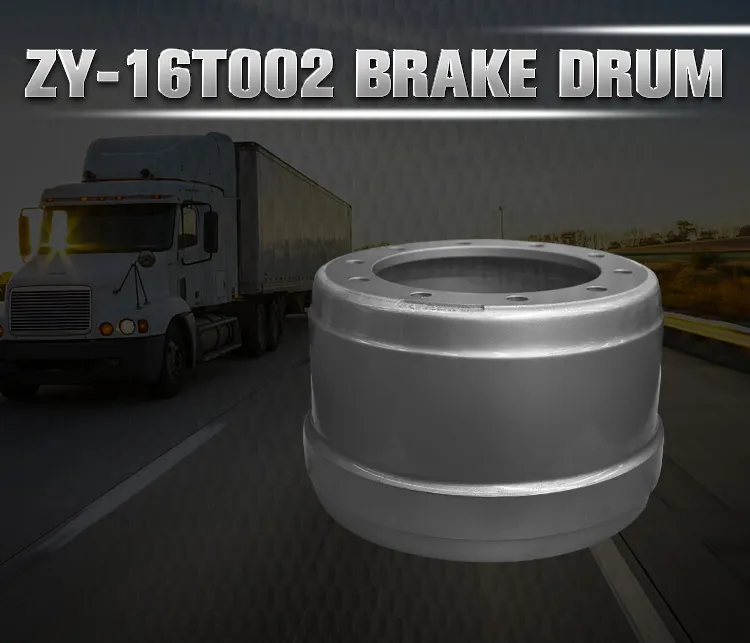

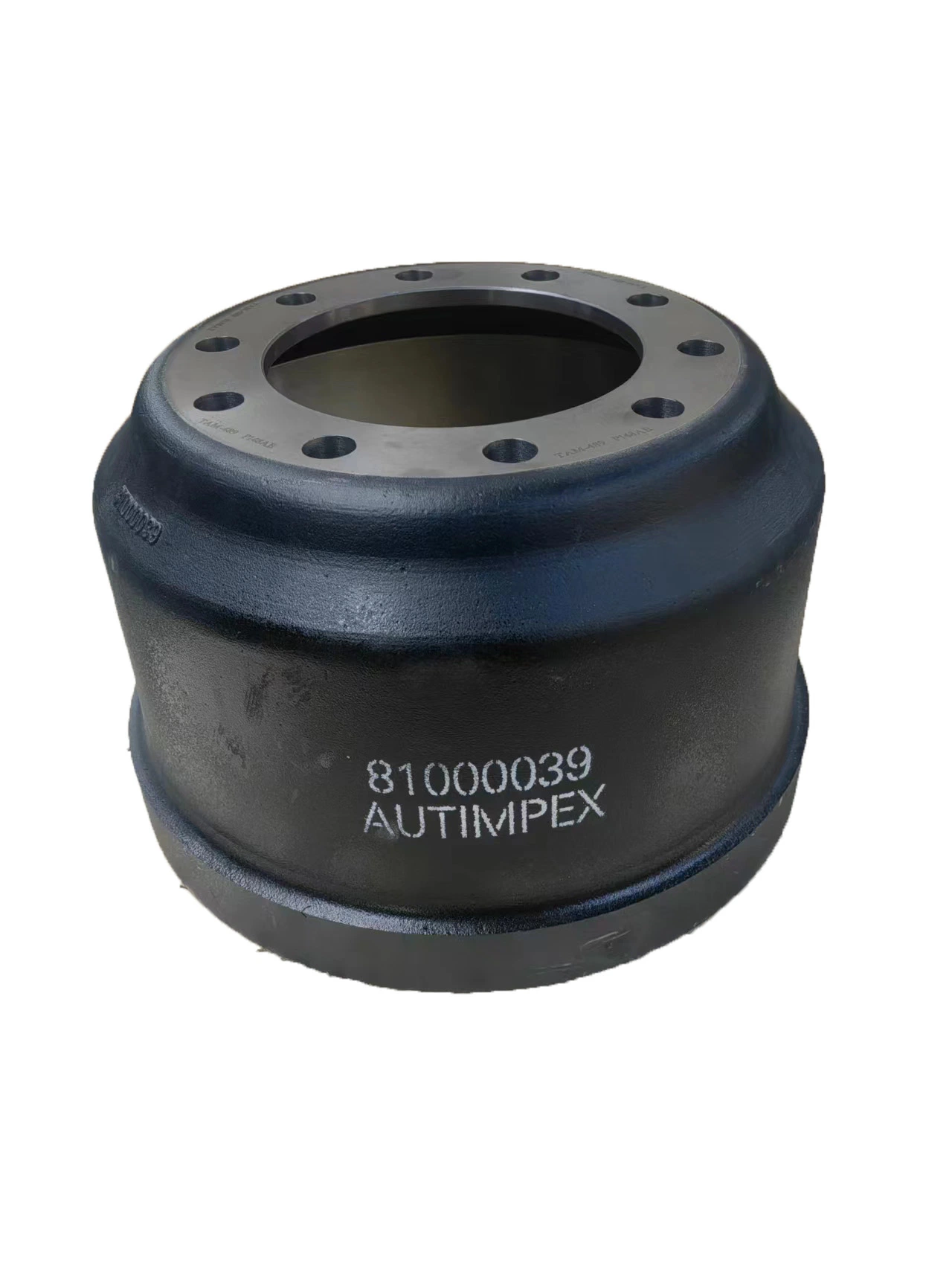

Heavy Duty Truck Trailer Brake Drum America Type 13Ton 3602B Axle Drum Brakes

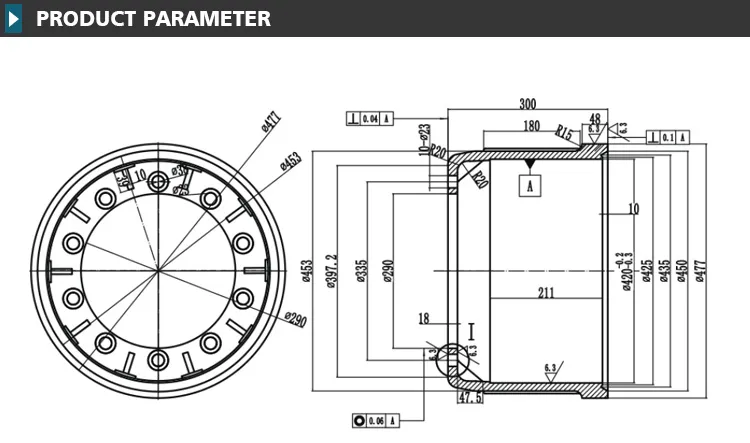

MODEL	INSTALL HOLE DIAMETER	BOLT HOLES	SIZE	BOLT CIRCLE DIAMETER	BRAKE FACE	DEPTH	TOTAL HEIGHT	BIGGEST DIAMETER
116AN11055	183	10	24.3	225	311.3	211	266	355
ZYKJ1601C	281.9	10	23.5	335	419	235	289	475
ZYKJ1601D	281.9	10	23.5	335	419	235	289	475
ZYKJ1304B	281.9	10	23.5	335	419	193	247	475
ZYKJ300C1	298	10	23	335	410	230	289	466
ZYKJ300G2	282	10	23	335	410	228(234)	292.5(298.5)	470
ZYKJ1191A2	282	10	24	335	420	210	285	475
ZYKJ485B1	282	10	23	335	410	232	255	474
ZYKJ-12TJ007	290	10	23	335	419	200	252	477
ZYKJ1601D2	281.9	10	23.5	335	420	230	266	468

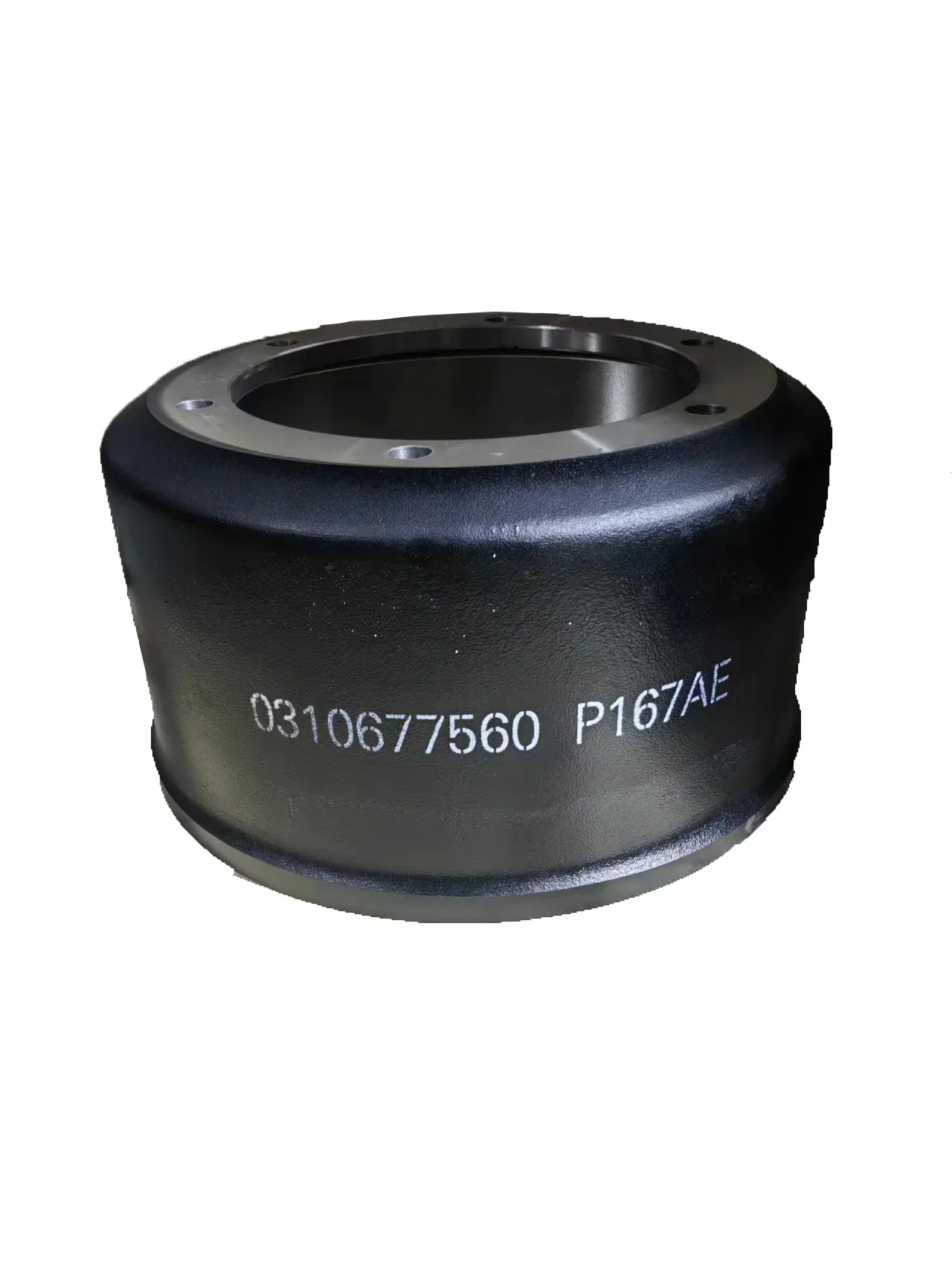

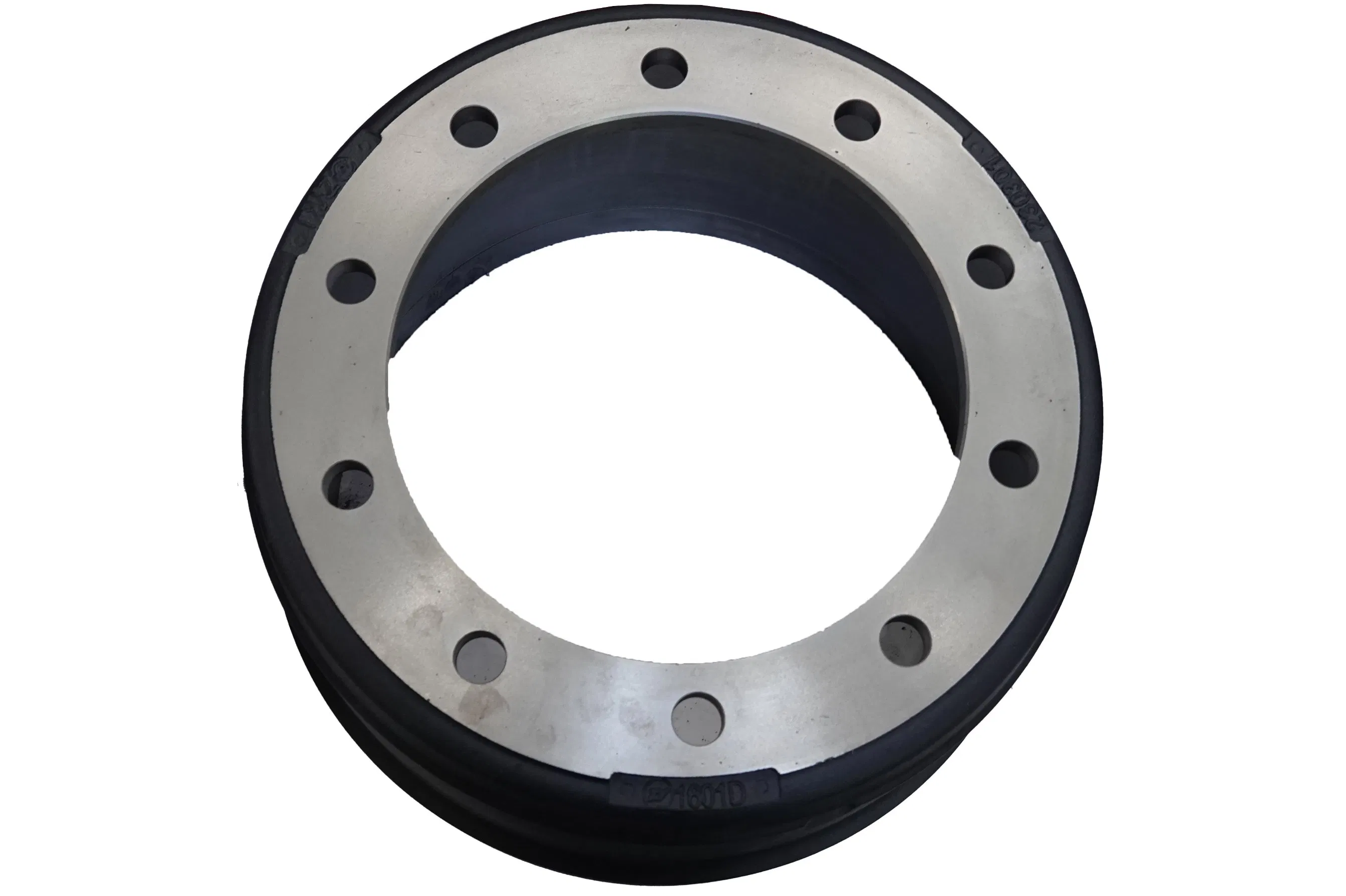

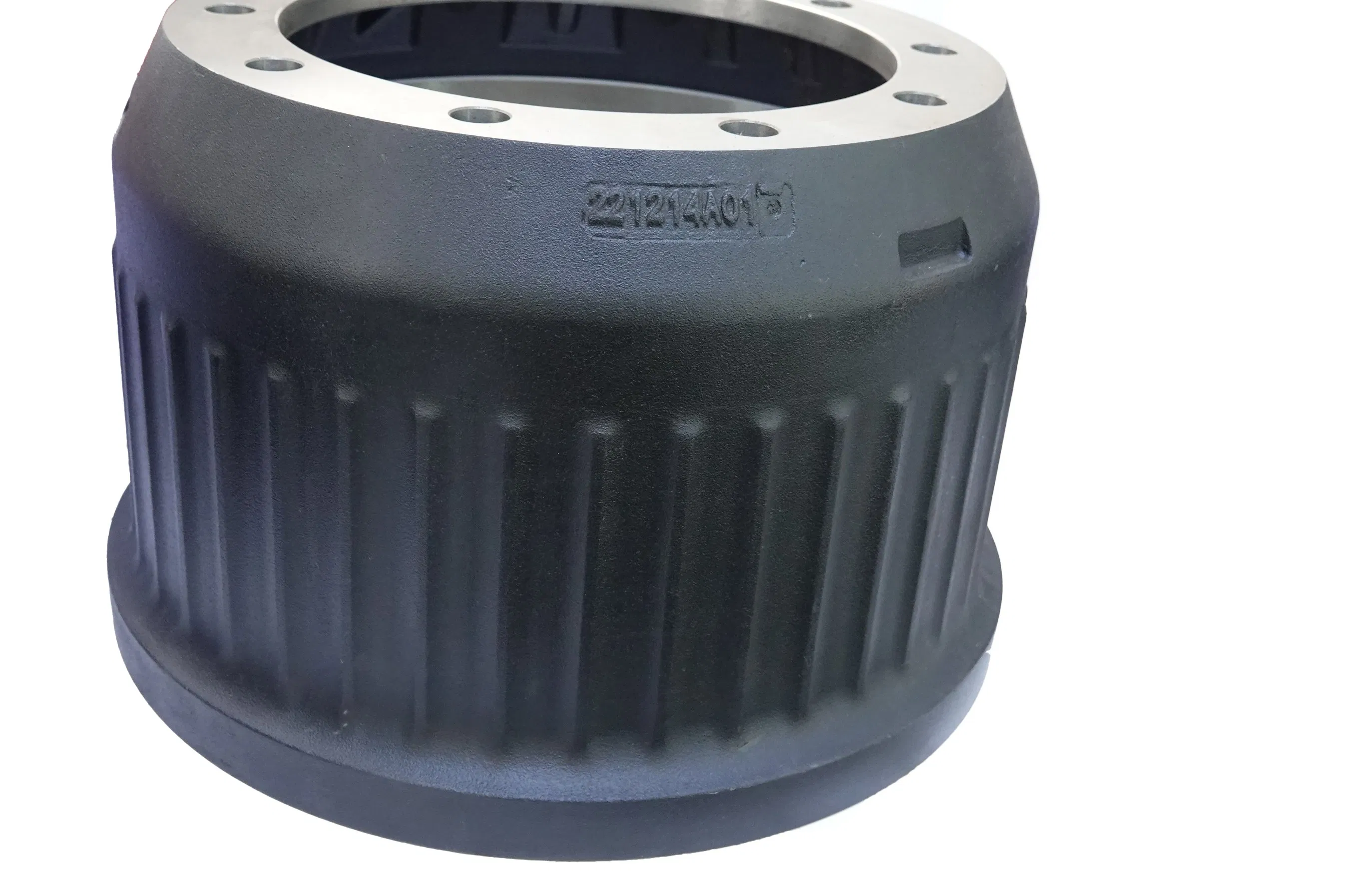

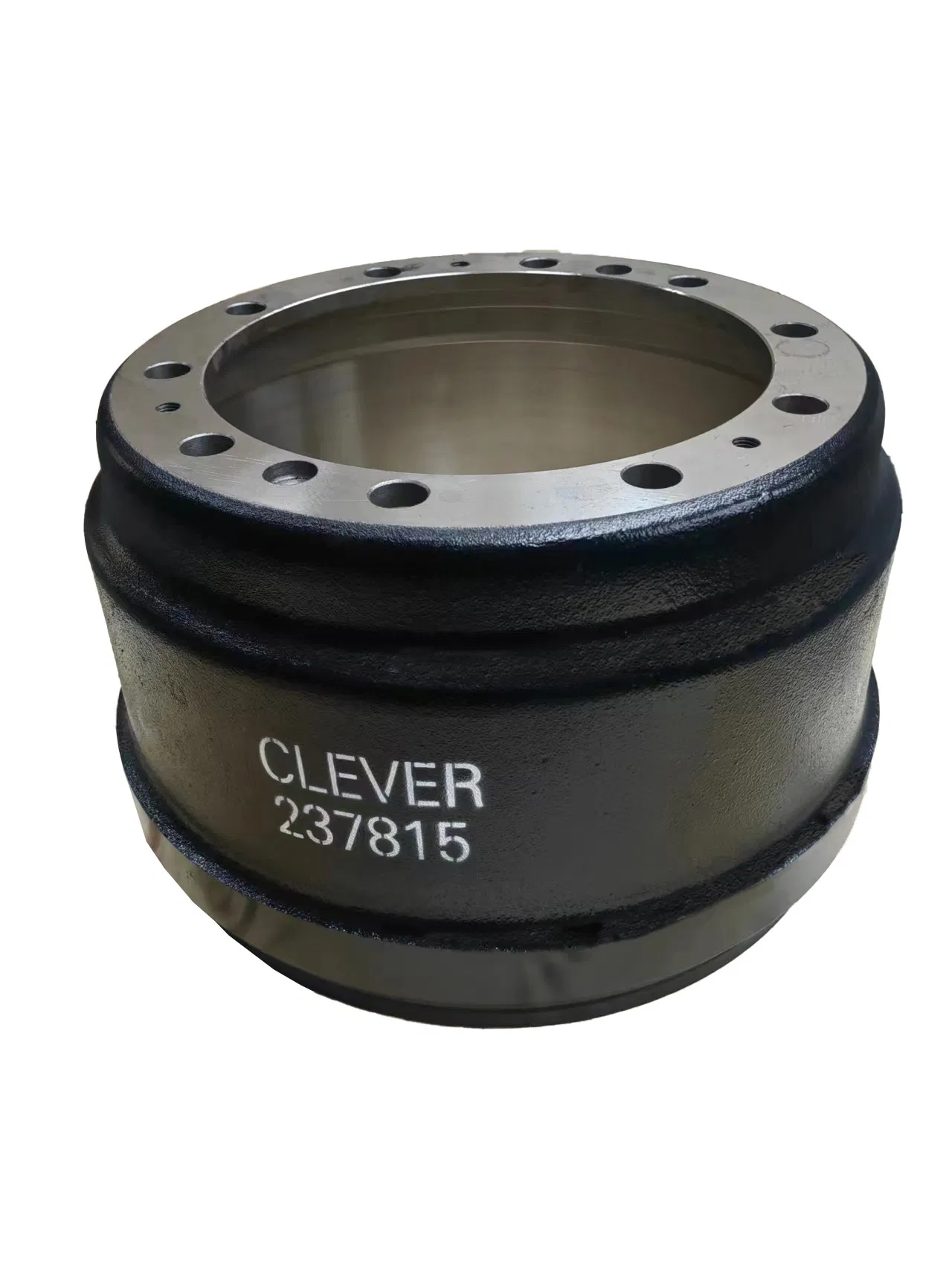

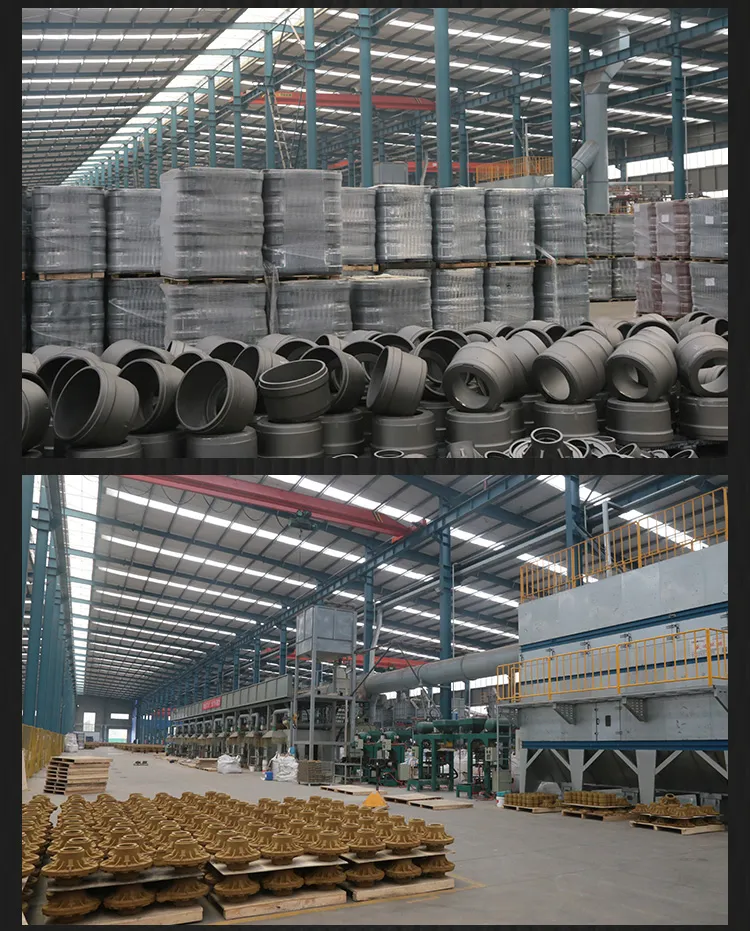

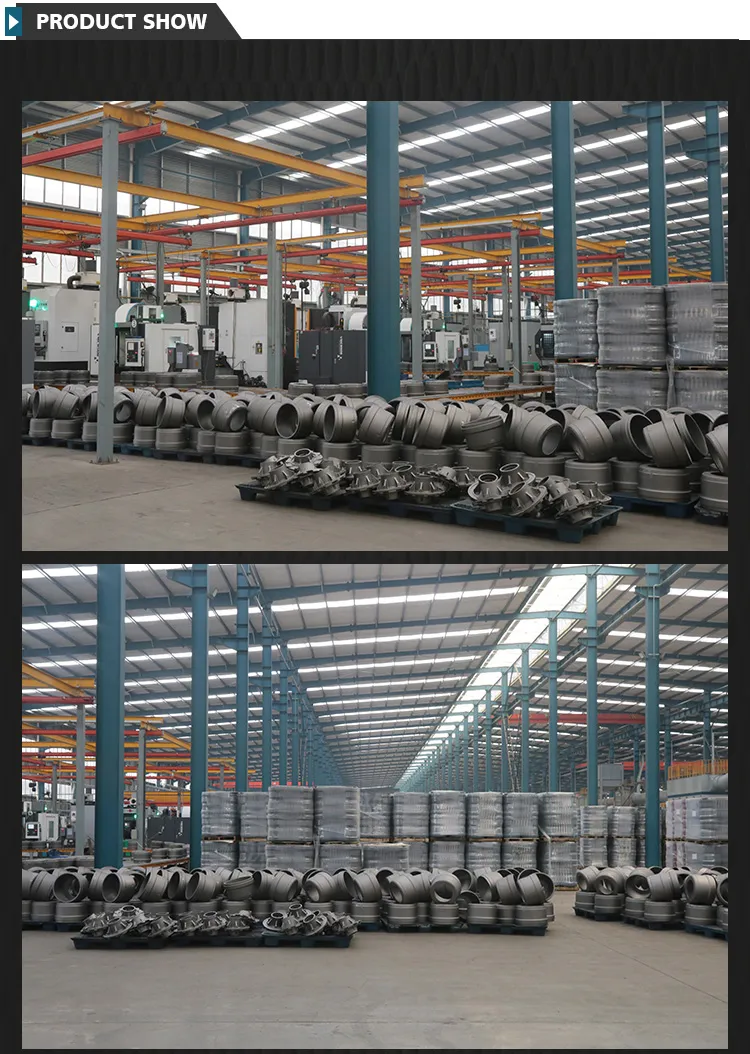

📸 Detailed Photos

⭐ Advantages & Features

📦 Packaging & Shipping

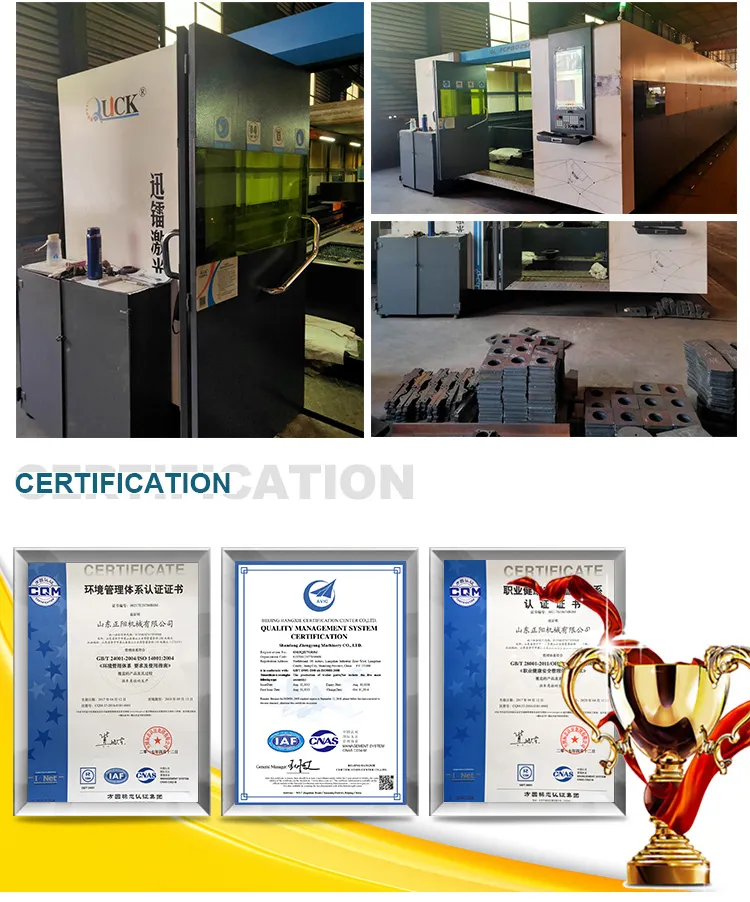

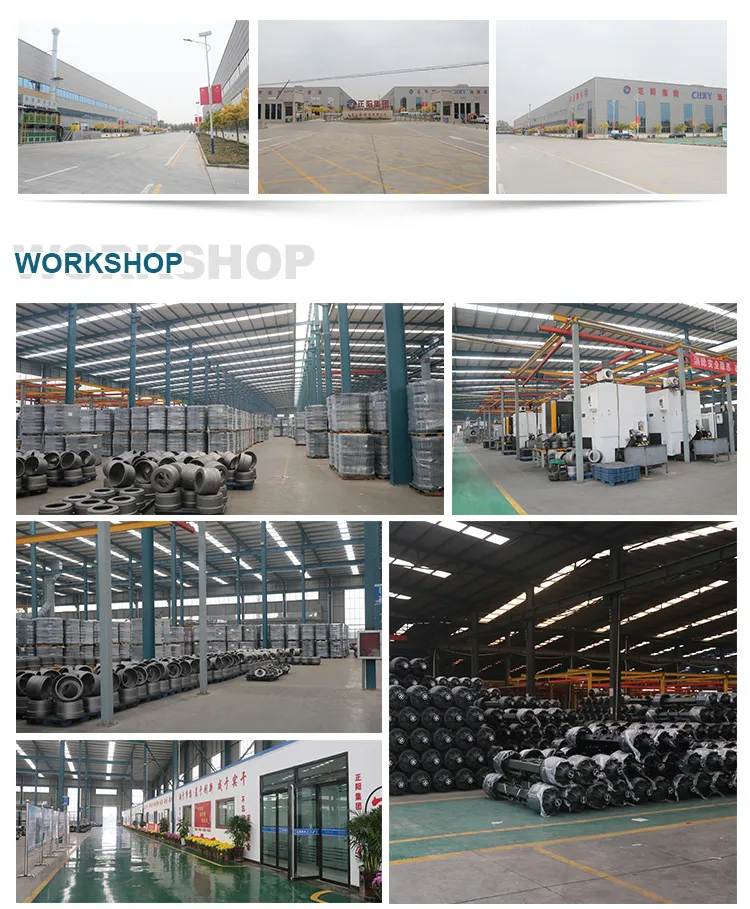

🏭 Production Capability

Frequently Asked Questions

What materials are used in your brake drums?

Our brake drums are primarily manufactured using high-quality Steel and HT250 cast iron to ensure maximum durability and heat dissipation.

Which truck and trailer types are compatible with these drums?

These are designed for America Type 13Ton heavy-duty trucks and trailers. We support various models including OE No. 3600A and multiple ZYKJ series specifications.

What quality certifications do your products have?

Our manufacturing process is certified under IATF-16949, ISO9001, ISO14001, and our products meet international standards such as DOT, ECE, and AMECA.

What is the monthly production capacity?

We have a stable production capacity of approximately 5000 sets per month to meet both large-scale and specialized orders.

How are the products packaged for international shipping?

Products are secured with plastic foam and placed on wooden pallets. The packaging is specifically designed to be seaworthy for long-distance transport.

Can you provide customized specifications?

Yes, we can adjust technical specifications such as hole diameter, bolt circle, and total height based on specific customer requirements.
