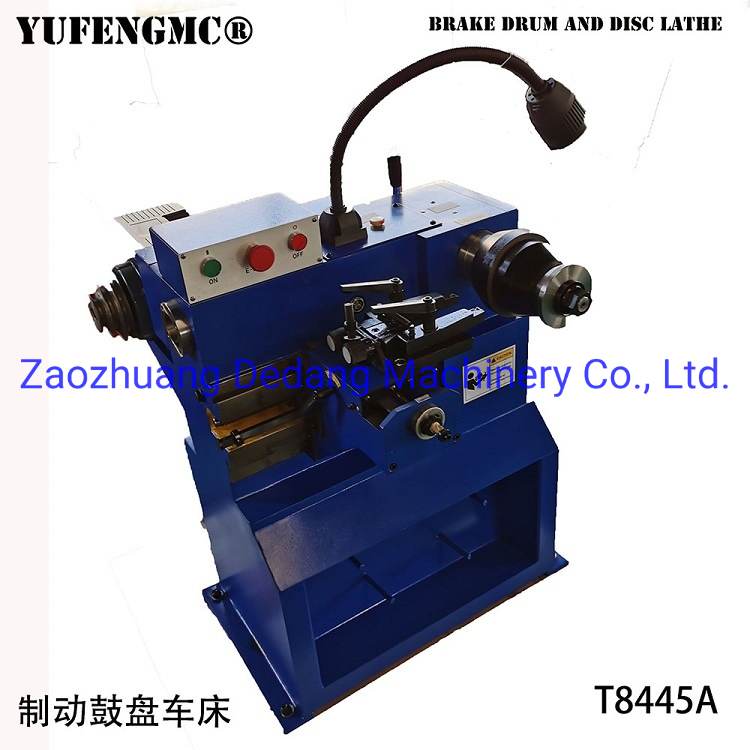

Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A

1 / 5

Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

T8445A

Specification

900*930*1100MM

HS Code

8458190000

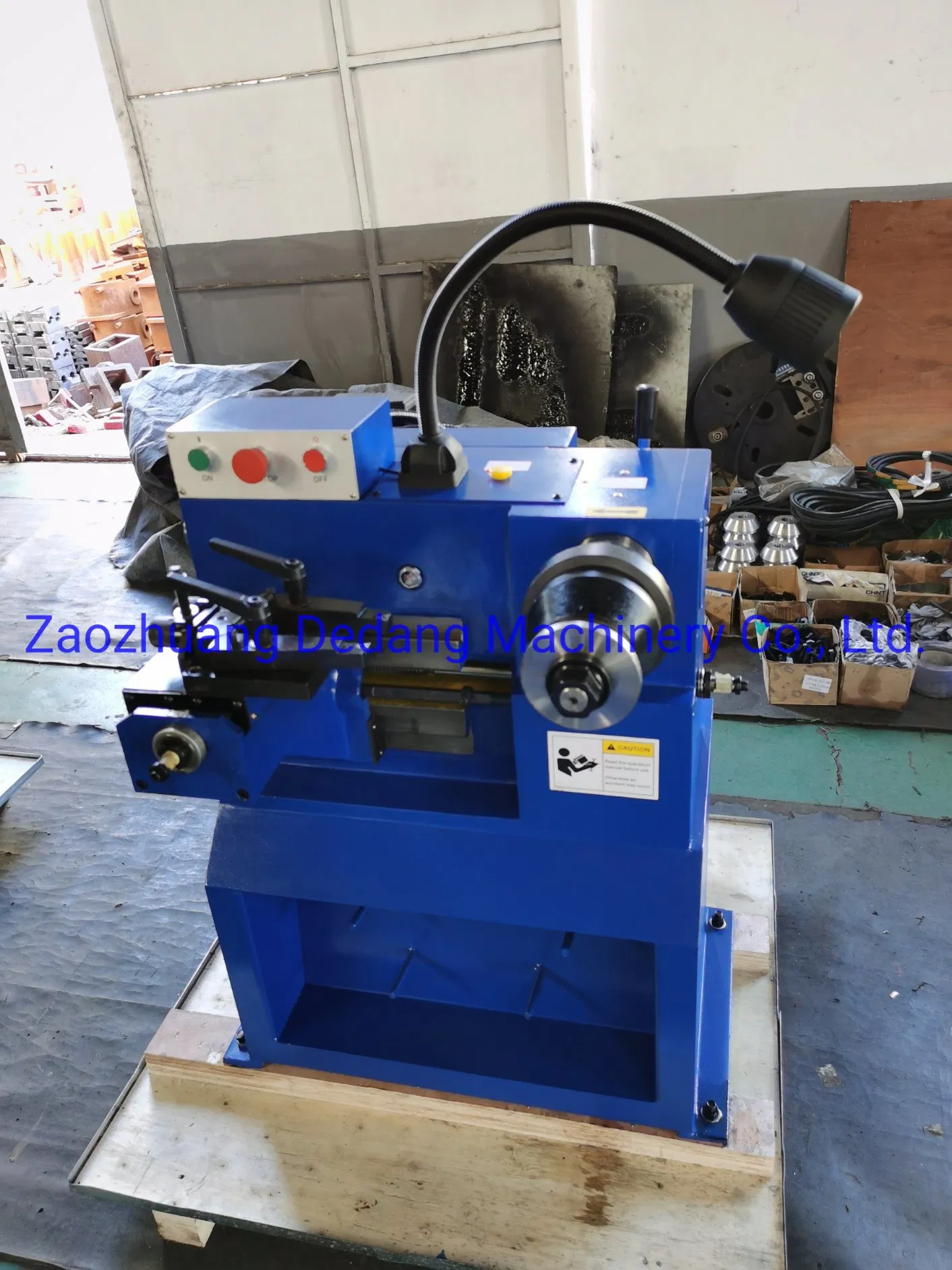

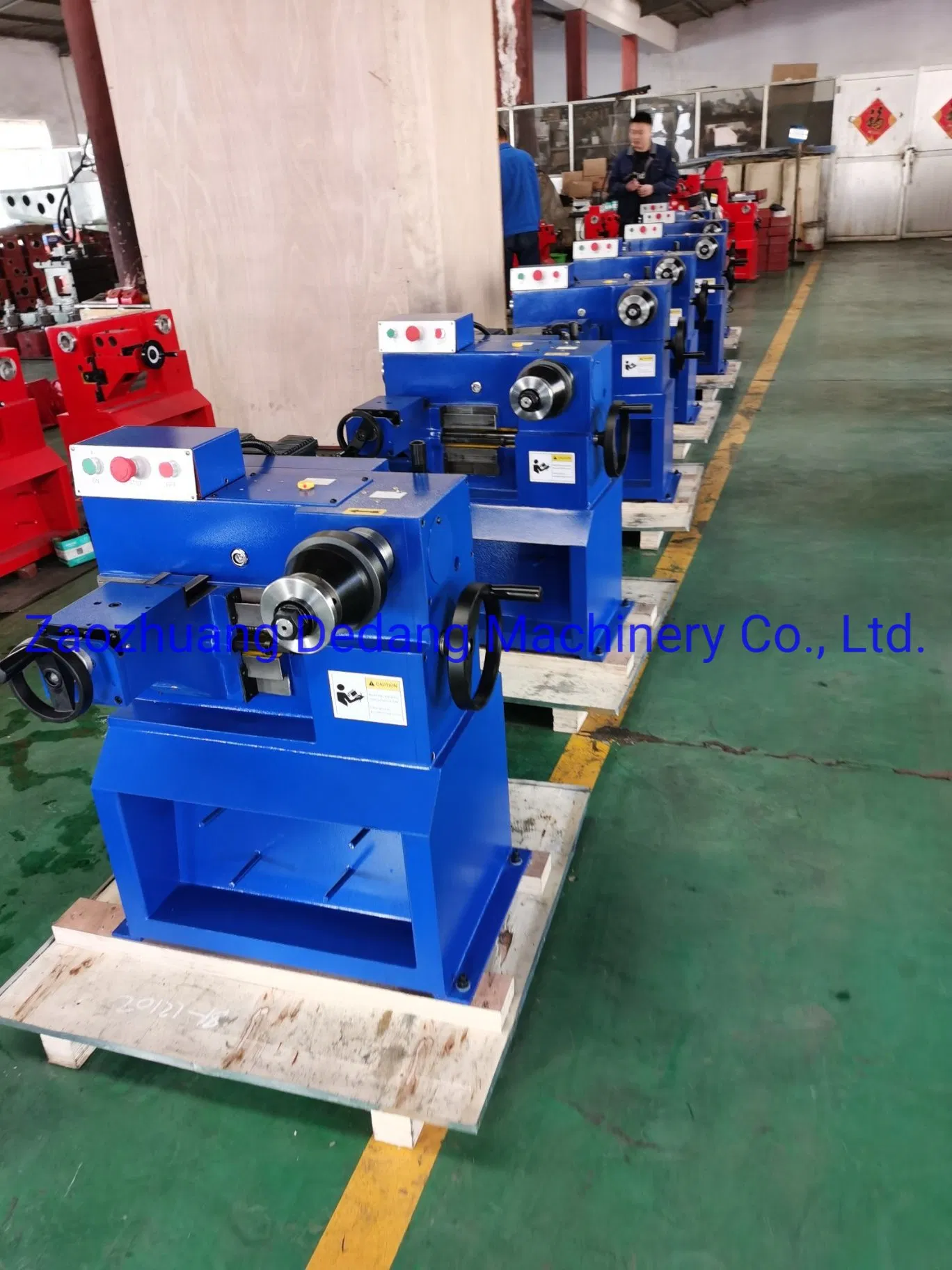

Product Display

Technical Specifications

BRAKE DRUM AND DISC LATHE	T8445/T8445A	T8465
DRUM DIA	180-450MM	180-650MM
DISC DIA	102-400MM	102-520MM
CUTTING TRAVEL	190MM	265MM
SPINDLE SPEED	20, 52, 85 RPM	20, 52, 85 RPM
FEED SPEED	0.16MM	0.16MM
MAIN MOTOR	1.1KW	1.1KW
MACHINE SIZE WITH LIFTING	11008701000MM	158010201050MM
PACKING SIZE WITH LIFTING	9009301100MM	102010651100MM
G WEIGHT / N.W	350/290KG	530/470KG

Main Features

"Replacement adapter" system eliminates the need for traditional bell clips and cones.

Continuously variable spindle and cross feed speed set for fast rough and fine finishing.

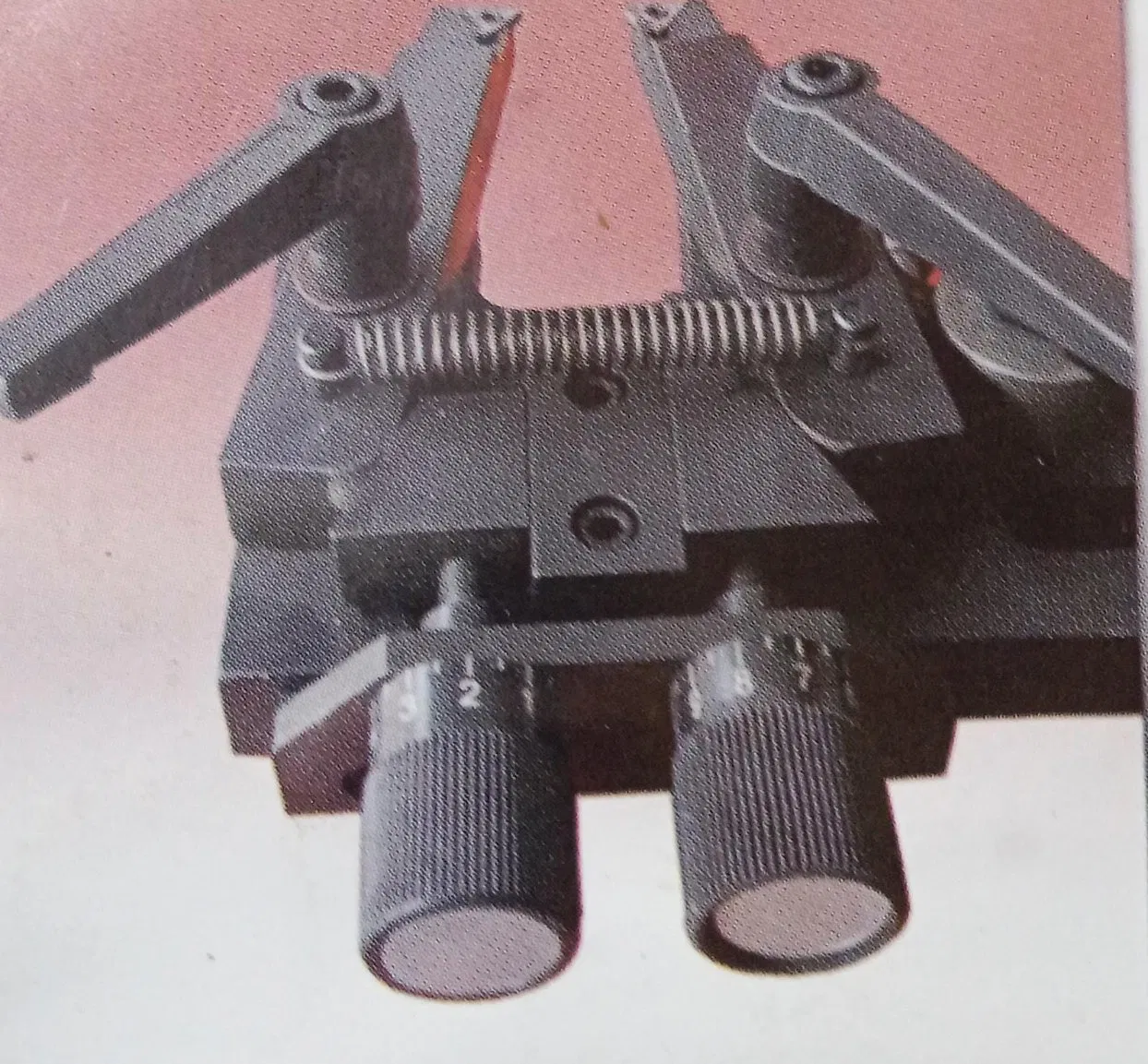

Precision double cutter and fast drum to rotor conversion help improve your service capability.

DC motor designed to meet the requirements of industrial motion control.

Positive rake cutter tip angle provides for a one pass finish virtually every time, allowing you to complete your work fast.

Frequently Asked Questions

Q1: What is the maximum drum diameter the T8445A can handle? The T8445A model supports a drum diameter range from 180mm up to 450mm.

Q2: Does this machine support both brake discs and drums? Yes, it is a versatile lathe designed for both brake drum and disc processing, with a fast conversion system between the two.

Q3: What are the available spindle speeds for this lathe? The machine offers three spindle speed settings: 20, 52, and 85 RPM to suit different machining requirements.

Q4: What are the advantages of the DC motor used in this model? The DC motor is specifically designed to meet industrial motion control requirements, providing reliable power and precise control during operation.

Q5: Is it possible to achieve a fine finish in a single pass? Yes, the positive rake cutter tip angle is engineered to provide a one-pass finish virtually every time, significantly increasing work efficiency.

Q6: Do I need traditional bell clips for the adapter system? No, the "Replacement adapter" system is designed to eliminate the need for traditional bell clips and cones, simplifying the setup process.
