● Basic Specifications
Specification
1020*1065*1100MM

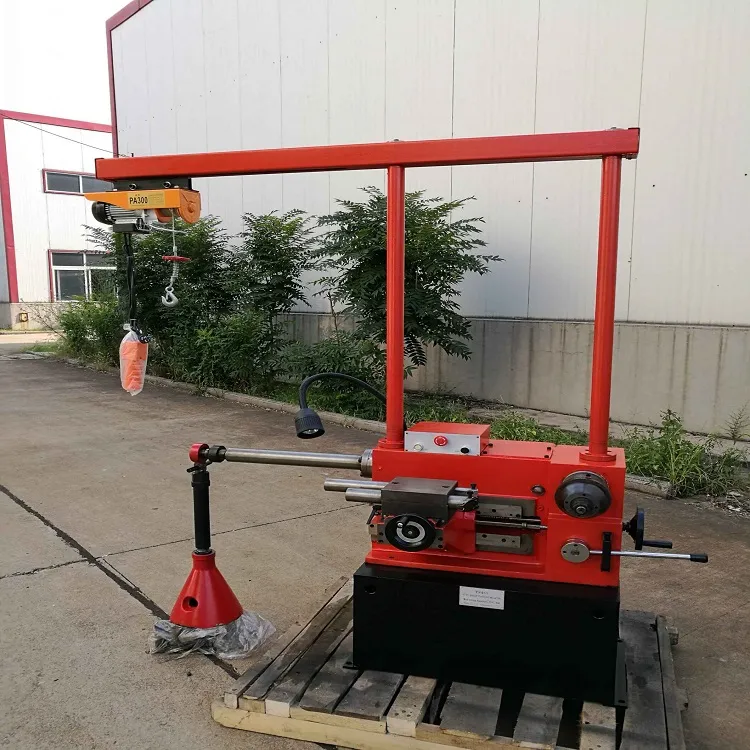

● Product Presentation
● Technical Comparison
| BRAKE DRUM AND DISC LATHE |
T8445/T8445A |
T8465 |
| DRUM DIA |
180-450MM |
180-650MM |
| DISC DIA |
102-400MM |
102-520MM |
| CUTTING TRAVEL |
190MM |
265MM |
| SPINDLE SPEED |
20, 52, 85RPM |
20, 52, 85RPM |
| FEED SPEED |
0.16MM |
0.16MM |
| MAIN MOTOR |
1.1KW |
1.1KW |
| MACH WITH LIFTING UNIT |
1100*870*1000MM |
1580*1020*1050MM / 1880*1020*1970MM |
| PACKING SIZE |
900*930*1100MM |
1020*1065*1100MM / 1420*1065*1100MM |
| G WEIGHT / N.W |
350/290KG |
530/470KG |
● Key Features & Advantages
1
The "Replacement adapter" system effectively eliminates the need for traditional bell clips and cones, simplifying setup.
2
Continuously variable spindle and cross feed speed settings allow for fast roughing and high-precision fine finishing.
3
Equipped with a precision double cutter and fast drum-to-rotor conversion system to significantly improve service capability.
4
Features a DC motor specifically designed to meet the rigorous requirements of industrial motion control.
5
The positive rake cutter tip angle ensures a one-pass finish virtually every time, allowing for rapid task completion.
● Frequently Asked Questions
What is the difference between T8445 and T8465?
The T8465 model offers a larger processing range, supporting drum diameters up to 650mm and disc diameters up to 520mm, compared to the T8445's smaller capacity.
Can this machine handle both brake drums and discs?

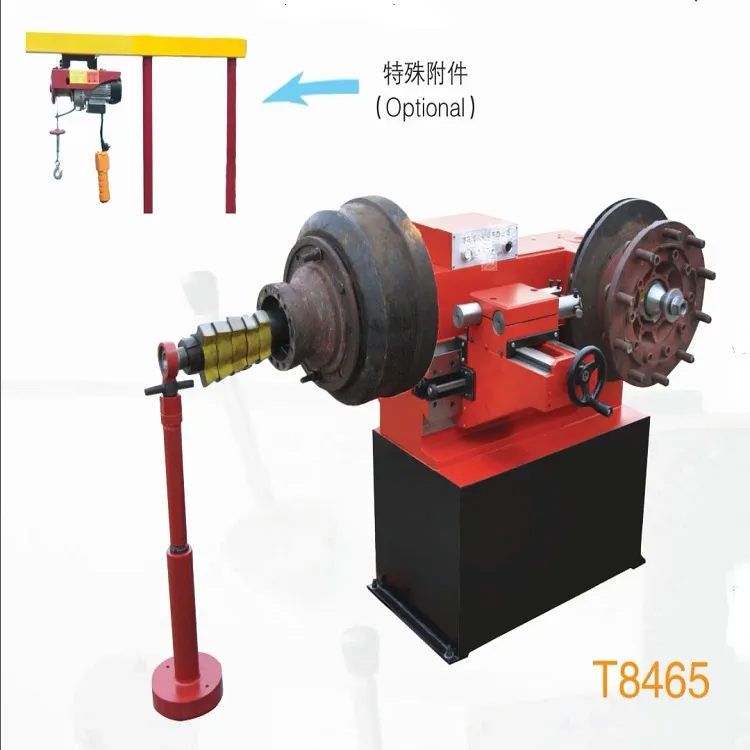

Yes, it is a versatile two-spindle lathe designed specifically to cut both brake drums and brake discs with precision.
What are the spindle speed options available?
The machine features three spindle speed settings: 20, 52, and 85 RPM, which provides flexibility for different materials and finishing requirements.
Is the motor powerful enough for industrial use?
Absolutely. It uses a 1.1KW main motor and a DC motor system specifically engineered for industrial motion control and durability.
Does it require a complex setup for different rotors?
No, the "Replacement adapter" system and fast drum-to-rotor conversion features make switching between different tasks quick and easy.
What is the cutting travel of the T8465 model?
The T8465 model features a cutting travel of 265mm, allowing for deeper and more extensive cutting operations compared to standard models.
