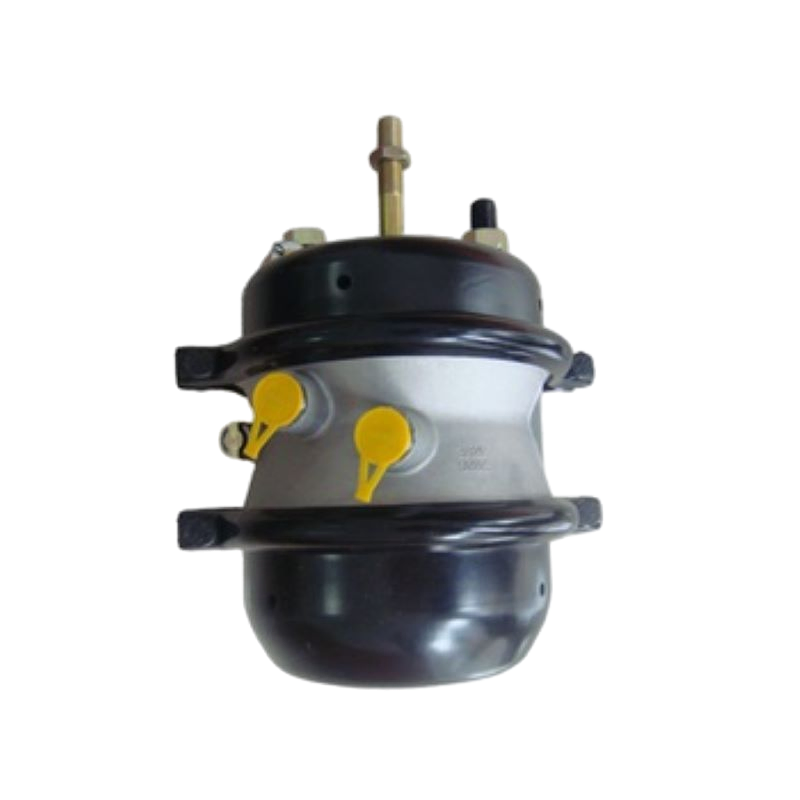

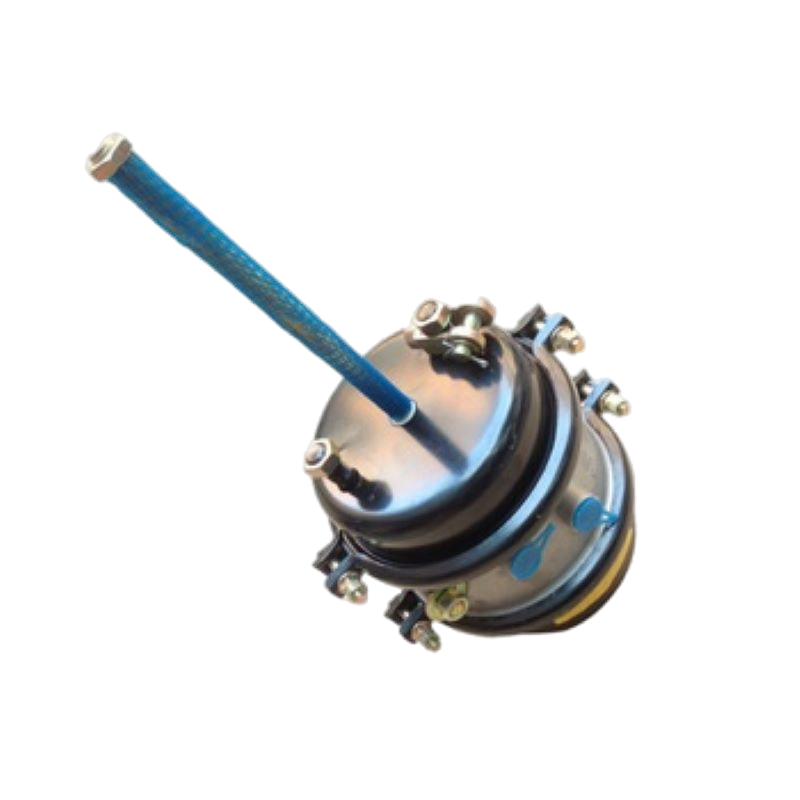

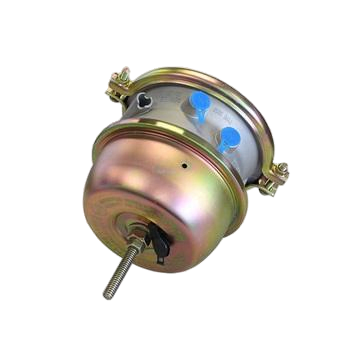

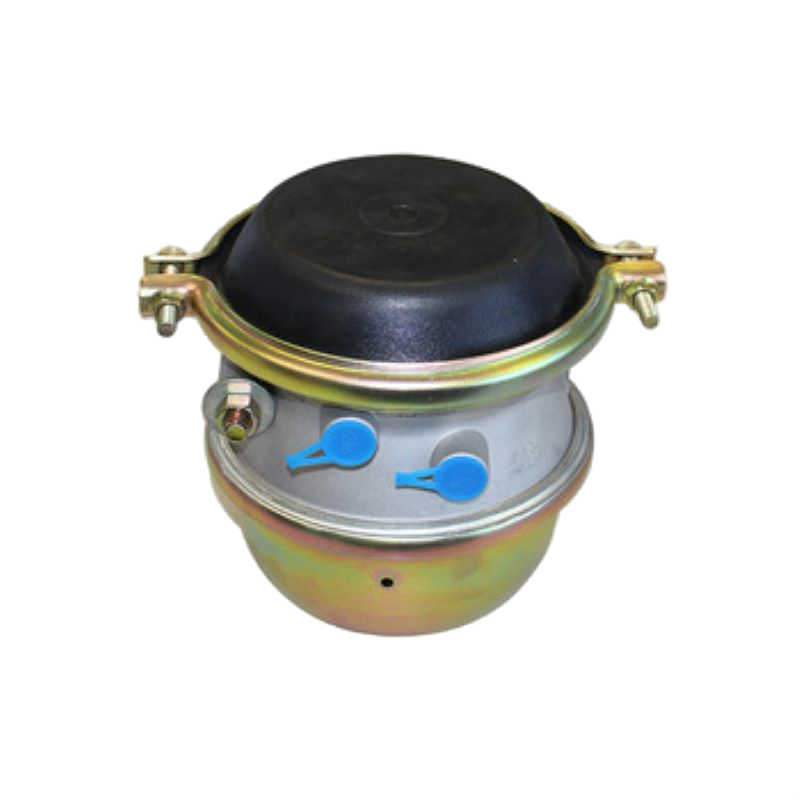

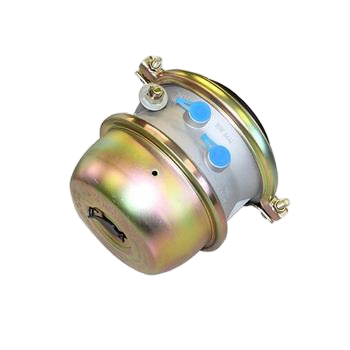

Heavy Duty Truck Trailer T3030 Spring Brake Booster

1 / 5

Heavy Duty Truck Trailer T3030 Spring Brake Booster

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

T3030

Type

Brake Booster

Material

Steel & Aluminum Alloy

Position

Rear

Certification

ISO9001

Classification

Drum

Stroke

64mm

Air Inlet Thread

3/8"-18nptf

Operating Temp

-40c~+80c

Weight

9.5kg

Product Description

T3030 Freightliner Truck Spring Air Brake Chamber Assembly

Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. There are two kinds of air brake chambers - service and spring brake chambers.

Product Parameters

Model Number	T30/30DD	T30/30DD	T30/30DD
Stroke	64/64mm	64/64mm	64/64mm
Port Thread	M16*1.5	3/8"NPT	3/8"NPT
Bolt Thread	M16*1.5	M16*1.5	5/8"UNC
Bolt Centre	120.7	120.7	120.7
Push Rod Thread	M16*1.5	M16*1.5	5/8"UNF
Push Rod Length	285MM	285MM	285MM

Product Features & Details

Material: High-grade Steel and Aluminum
Max Operating Pressure: 800Kpa ~ 1Mpa
Operating Temperature: -40 °C to +80 °C
Stroke Range: 0-76MM
Service Chamber Life-time: ≥ 1,000,000 times
Parking Chamber Life-time: ≥ 200,000 times
Leading Standard: SAE J1469-95 (Society of Automobile Engineers USA)

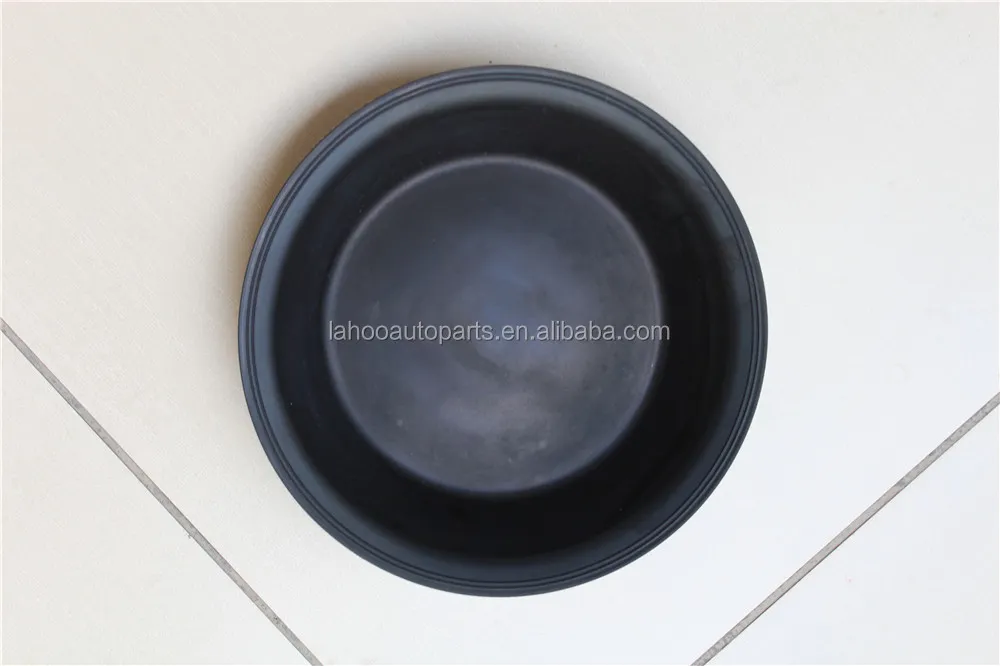

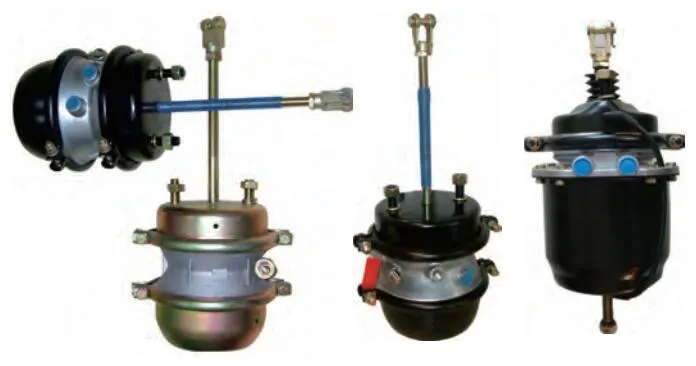

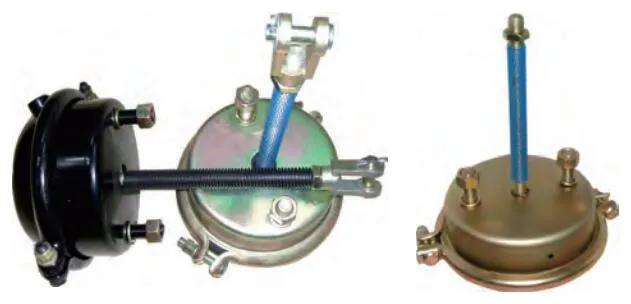

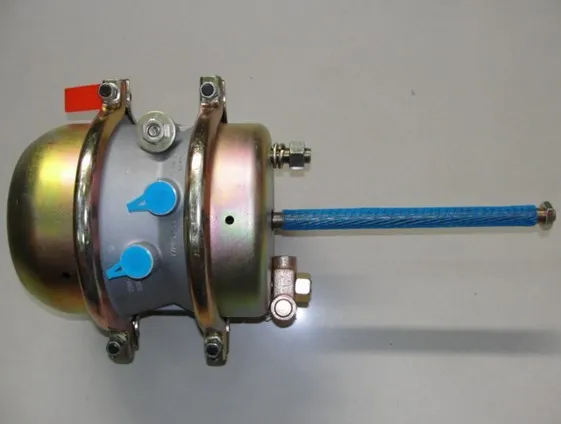

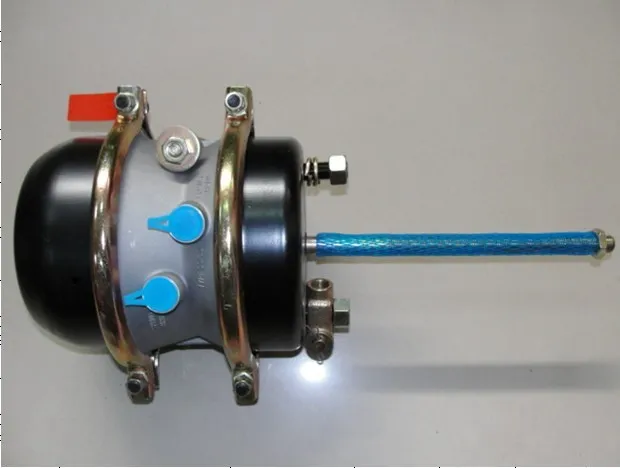

Detailed Photos

Frequently Asked Questions

Q1: What is the main application of the T3030 brake booster? A: It is primarily used for heavy-duty truck trailers, designed to convert compressed air into mechanical force for reliable braking performance.

Q2: What materials are used in the construction of this chamber? A: The chamber is manufactured using high-quality Steel and Aluminum Alloy to ensure durability and resistance to harsh road conditions.

Q3: What is the expected service life of the air brake chamber? A: The service chamber is tested for at least 1,000,000 cycles, while the parking chamber is rated for over 200,000 cycles.

Q4: Can this product operate in extreme weather conditions? A: Yes, it is designed to operate effectively within a temperature range of -40°C to +80°C.

Q5: What quality standards does the T3030 meet? A: It is ISO9001 certified and follows the SAE J1469-95 leading standard set by the Society of Automobile Engineers USA.

Q6: What are the port and bolt thread specifications? A: Depending on the variant, it features port threads of M16*1.5 or 3/8"NPT, and bolt threads of M16*1.5 or 5/8"UNC.
