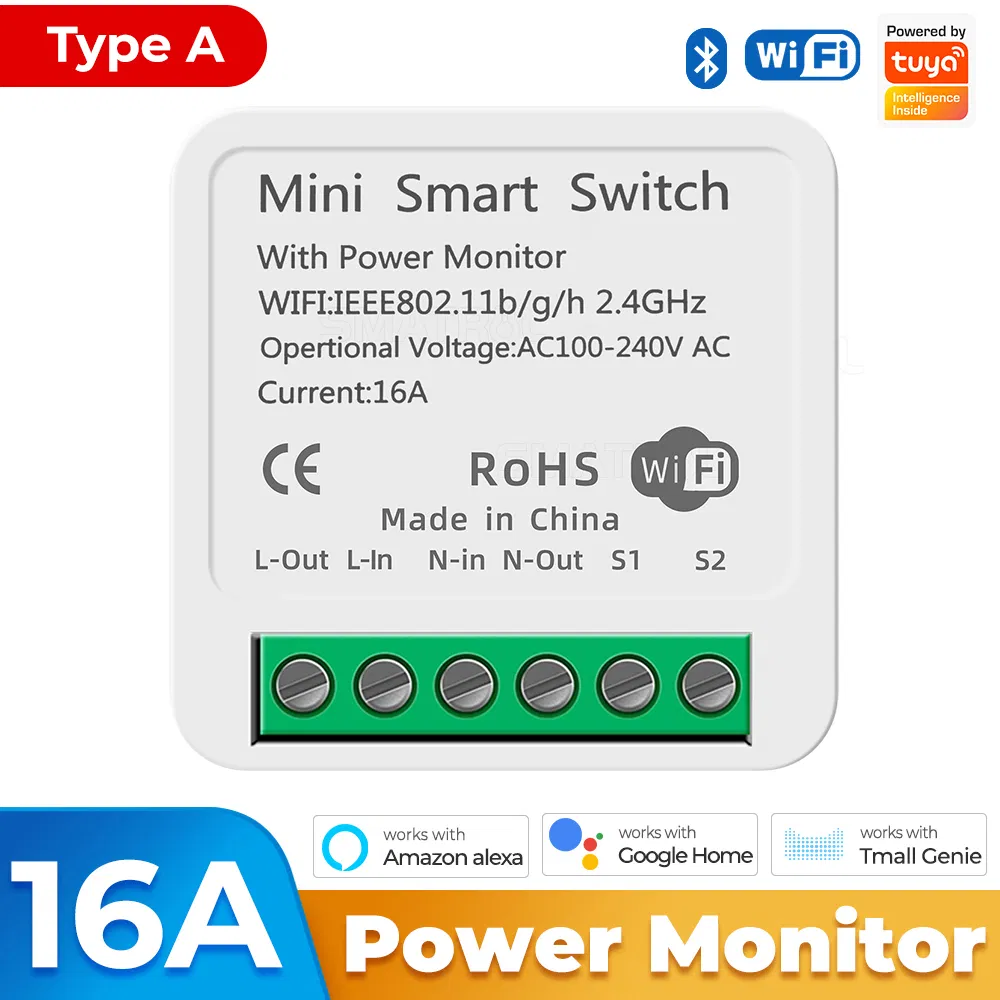

SLS Mini WiFi Smart Switch 16A Universal DIY Relay Module for Smart Home Automation B2B Global Procurement

i

Basic Specifications

Model NO.	FS-02W
Function	APP Control, Remote Control, Smart Linkage, Timer, Voice Control
Material	Fireproof ABS
Voltage Range	AC 100-250V 50/60Hz
Protocol	WiFi 2.4GHz
Voice Control	Google Home, Amazon Alexa Echo
Mechanical Life	100,000 Times
Dimensions	41 * 41 * 20mm

★

Product Description

16A Mini WiFi Smart Switch Module: In the newly installed market, the controller is connected in series with the input line of the light, and the mobile phone can access WiFi to control electrical equipment through Smart Life voice. One mobile phone can control multiple connectors, and multiple family members can share control to achieve control of multiple locations of electronic devices.

📷

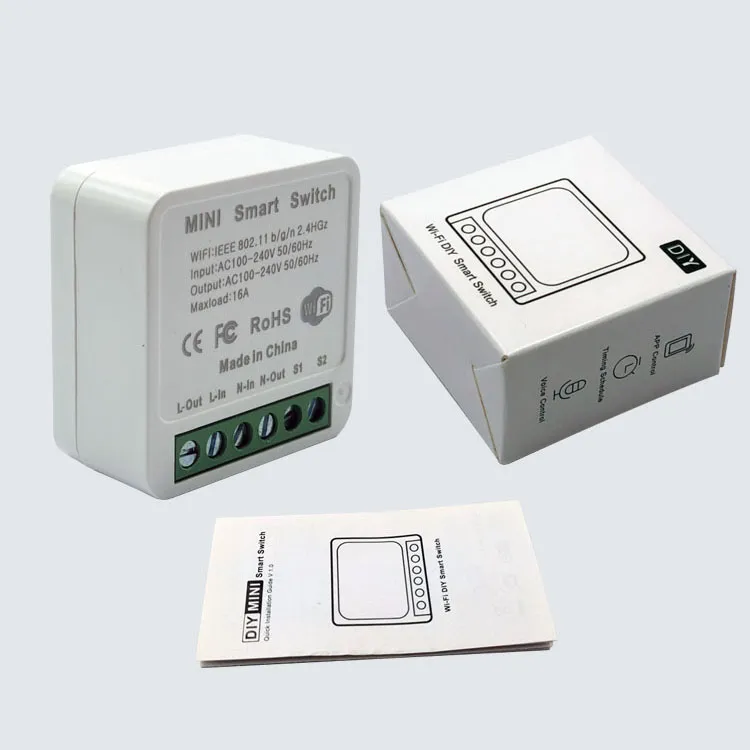

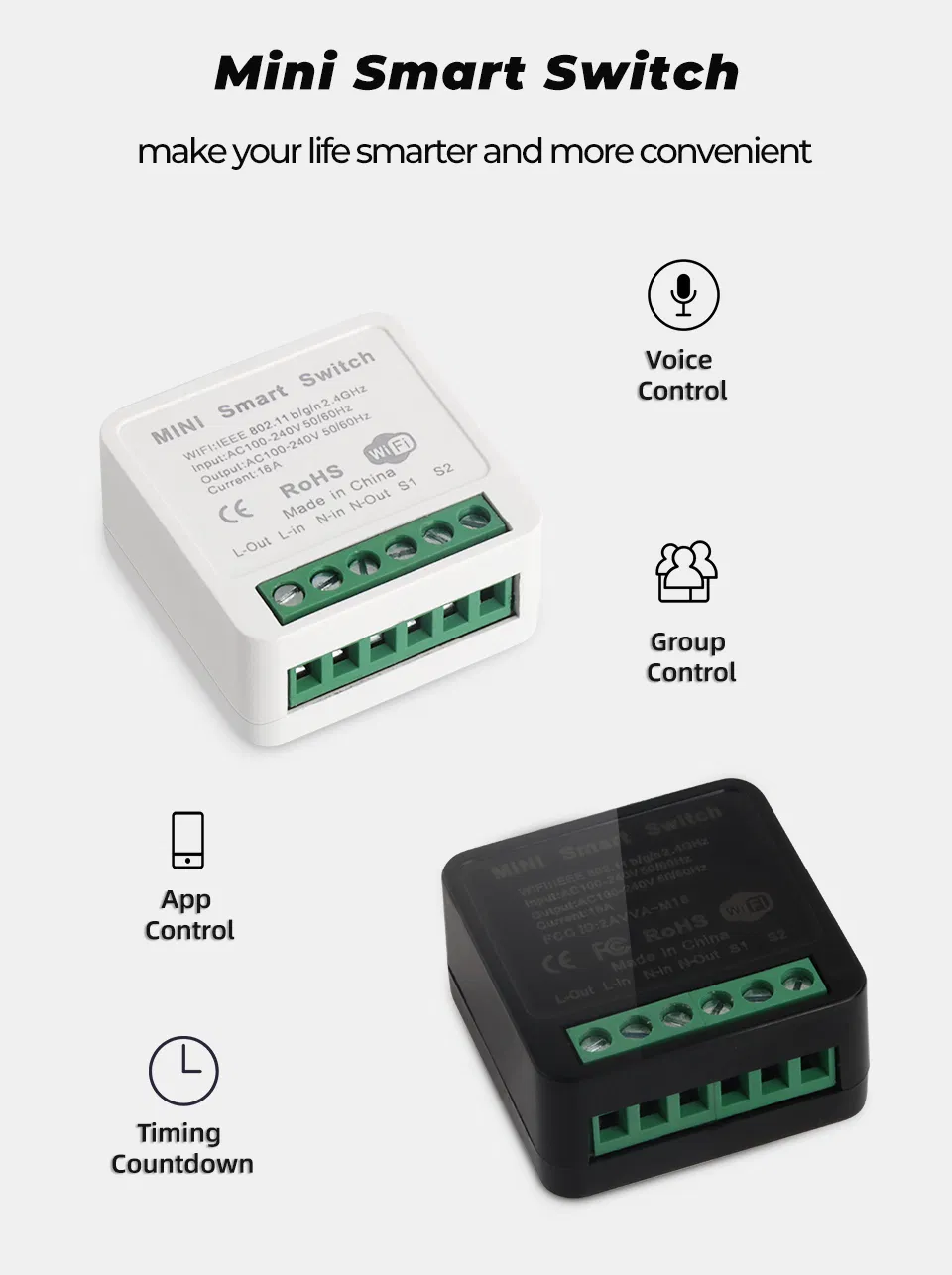

Detailed View

🏠

Application Scene

⚙

Technical Parameters

Model	Mini Smart Switch Module
Input Voltage	AC 100-240V
Plastic Material	Fireproof ABS
Start Method	Touch / Mobile APP / Voice Speaker
APP Name	Tuya Smart / Smart Life
Dimensions	41 * 41 * 20mm

🛠

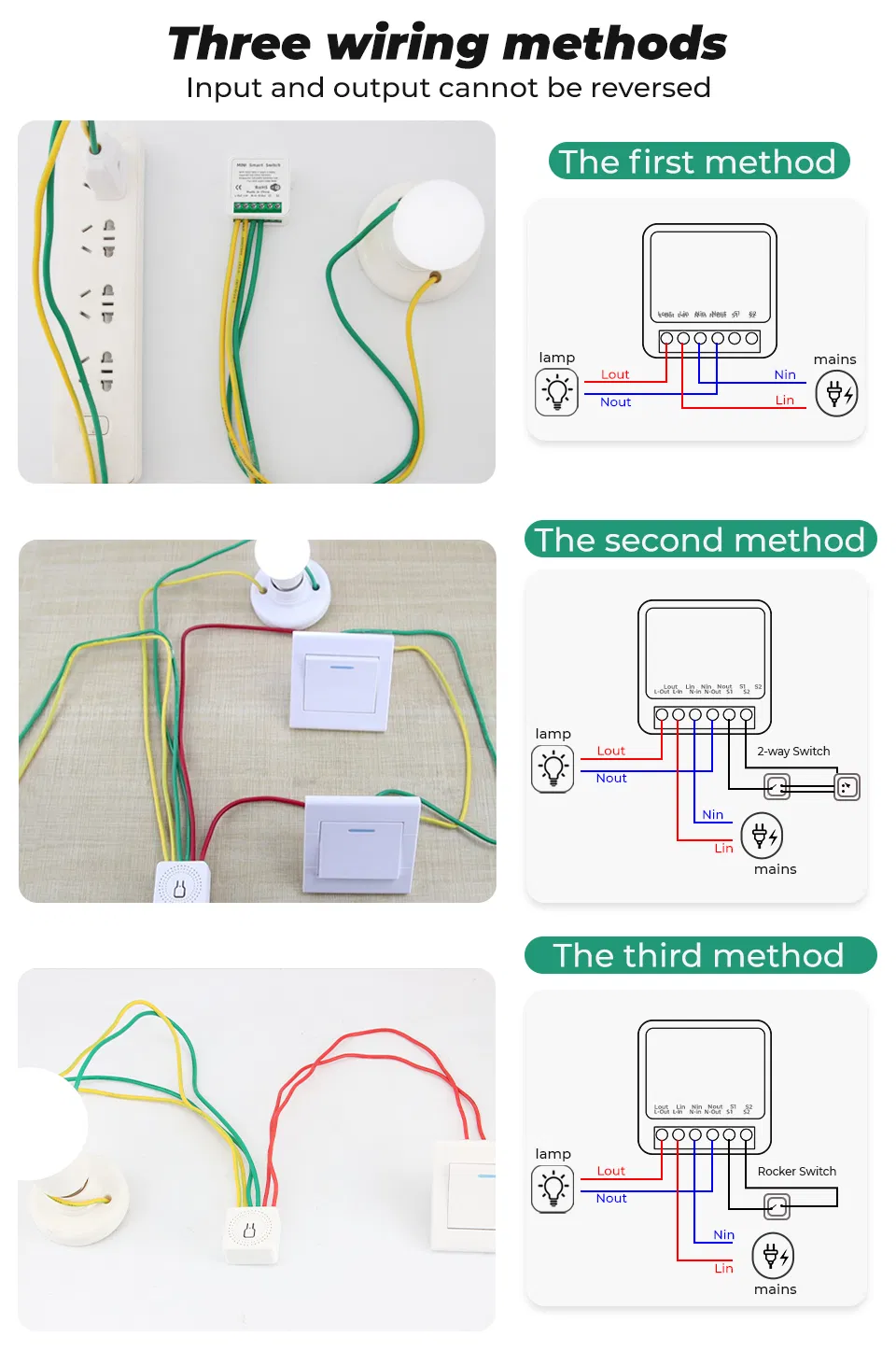

Installation Guide

?

Frequently Asked Questions

Q1: Does this mini smart switch module require a neutral wire for installation? A1: Yes, it does. This is a Neutral plus Live wire version which provides better stability and constant power for the smart chip.

Q2: Can I control this 16A smart relay module without a hub or gateway? A2: Yes, it connects directly to your 2.4G WiFi network, so there is no need for an extra hub.

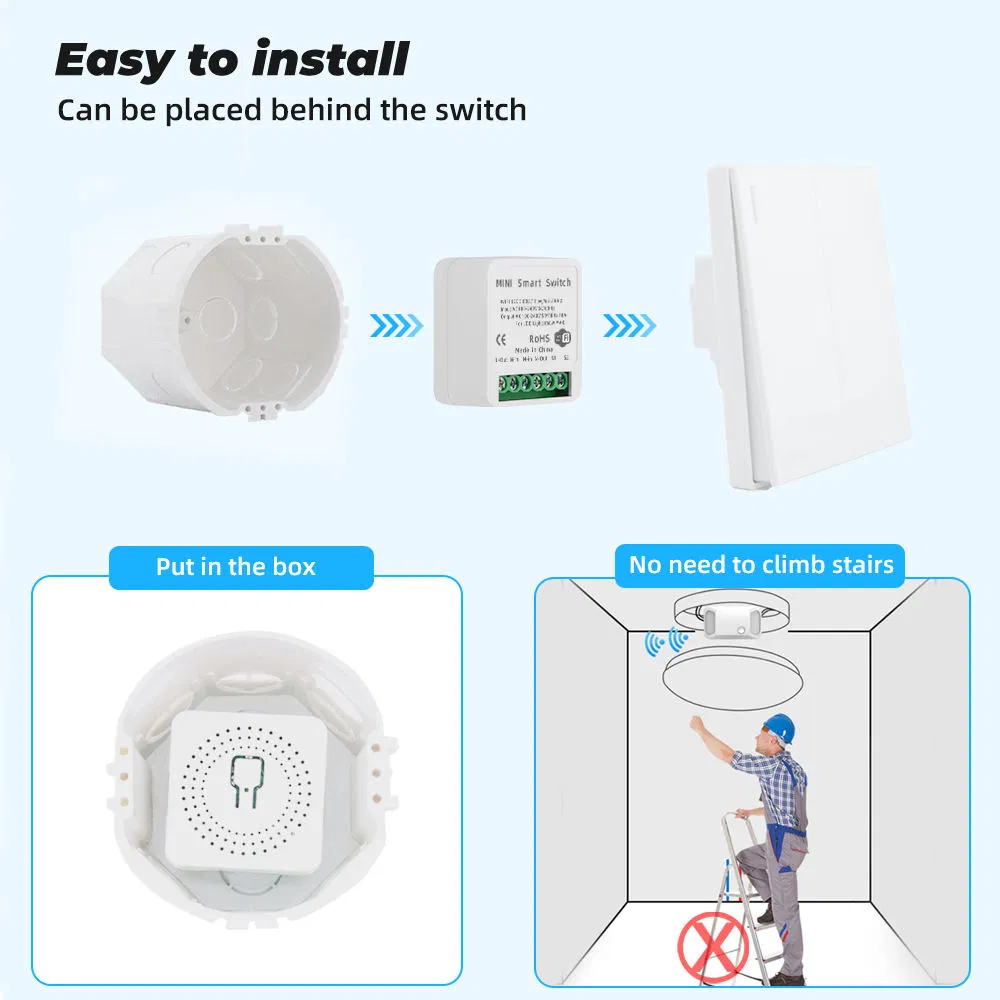

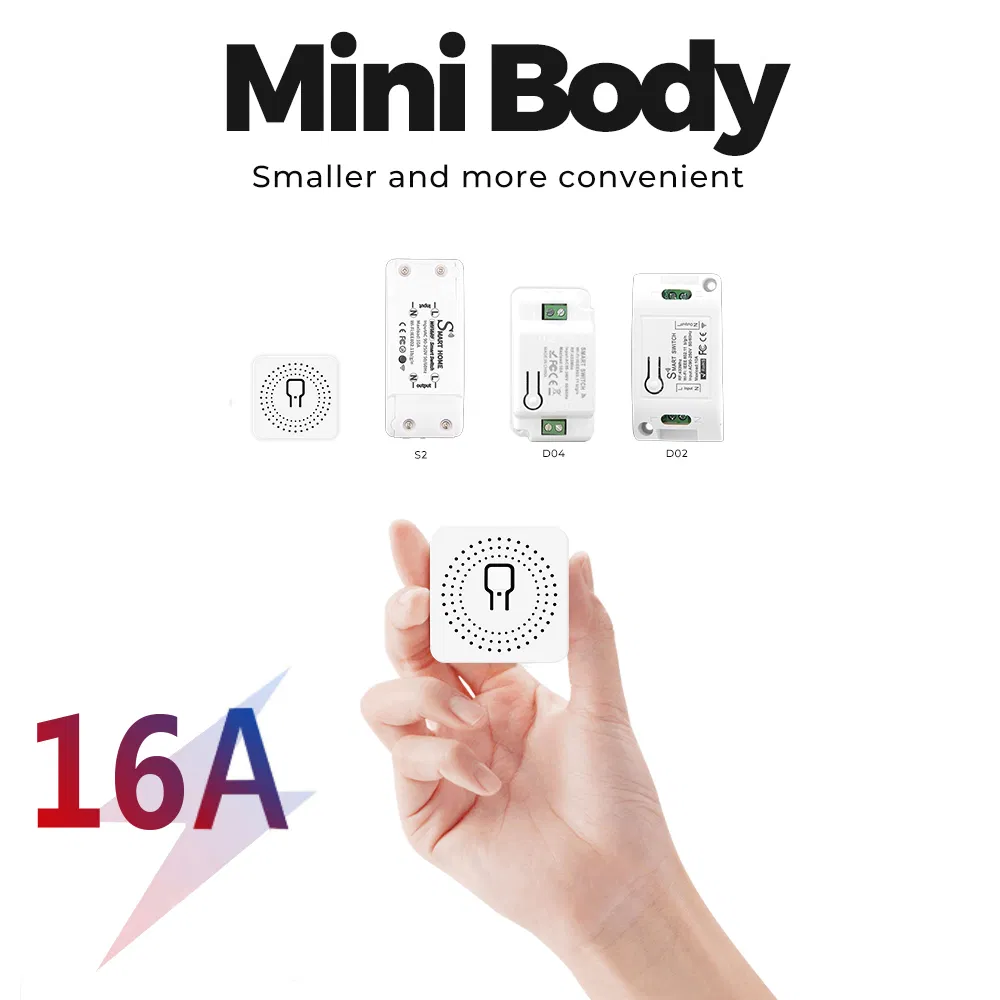

Q3: Is this switch module small enough to fit into my existing wall box? A3: Yes, the ultra-mini design (41*41*20mm) allows it to be hidden easily behind your traditional wall switch in most standard mounting boxes.

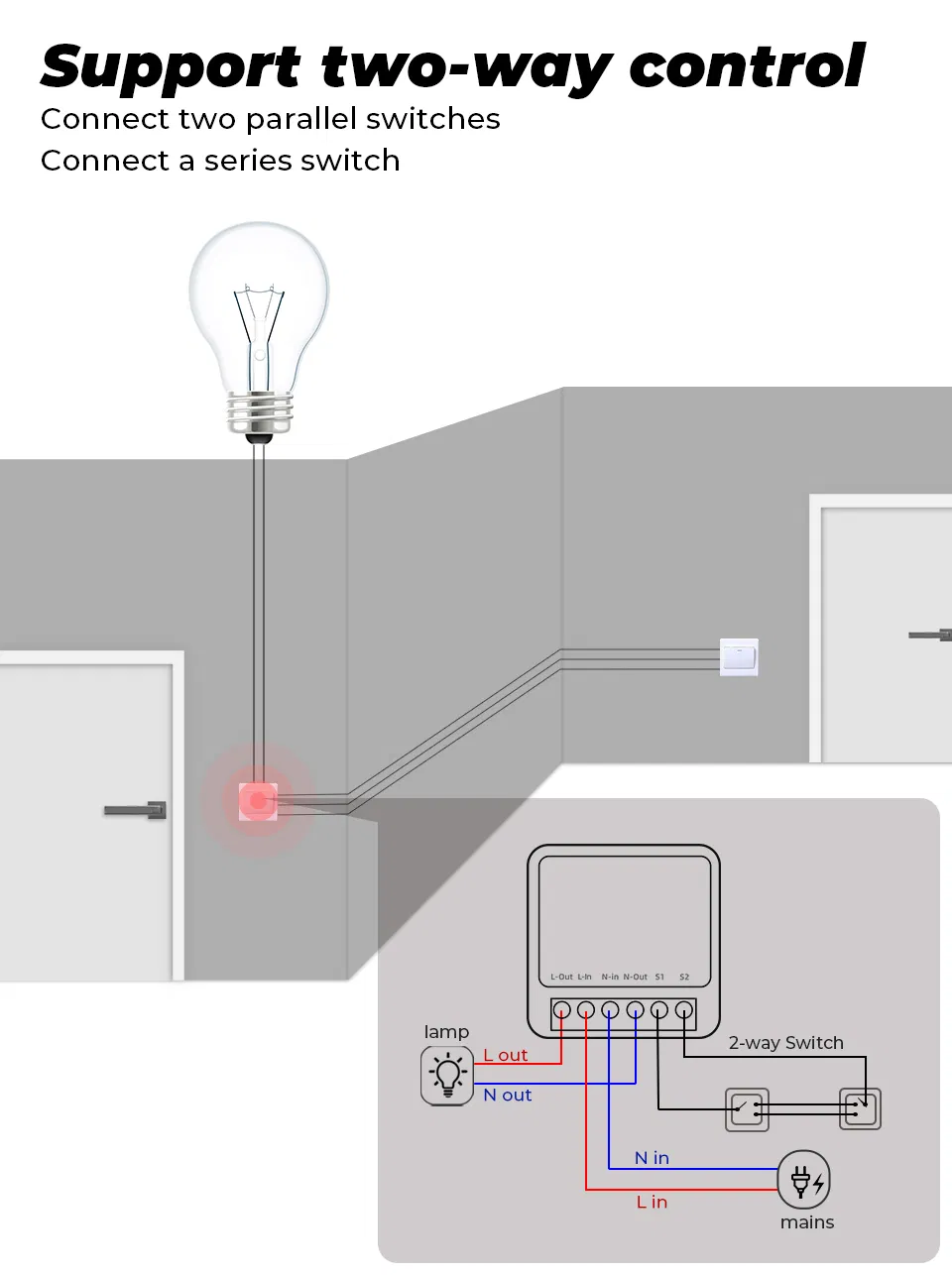

Q4: Can I still use my physical manual wall switch with this smart module? A4: Yes, it is compatible with both rocker and push-button manual switches to maintain traditional control while adding smart features.

Q5: Does this 16A module support high power appliances? A5: Yes, it supports up to 16A current and 3500W load, which is suitable for most household appliances and lighting systems.

Q6: Is it compatible with voice assistants like Alexa or Google Home? A6: Yes, it is fully compatible with Alexa and Google Assistant for a hands-free voice control experience.
