Product Description

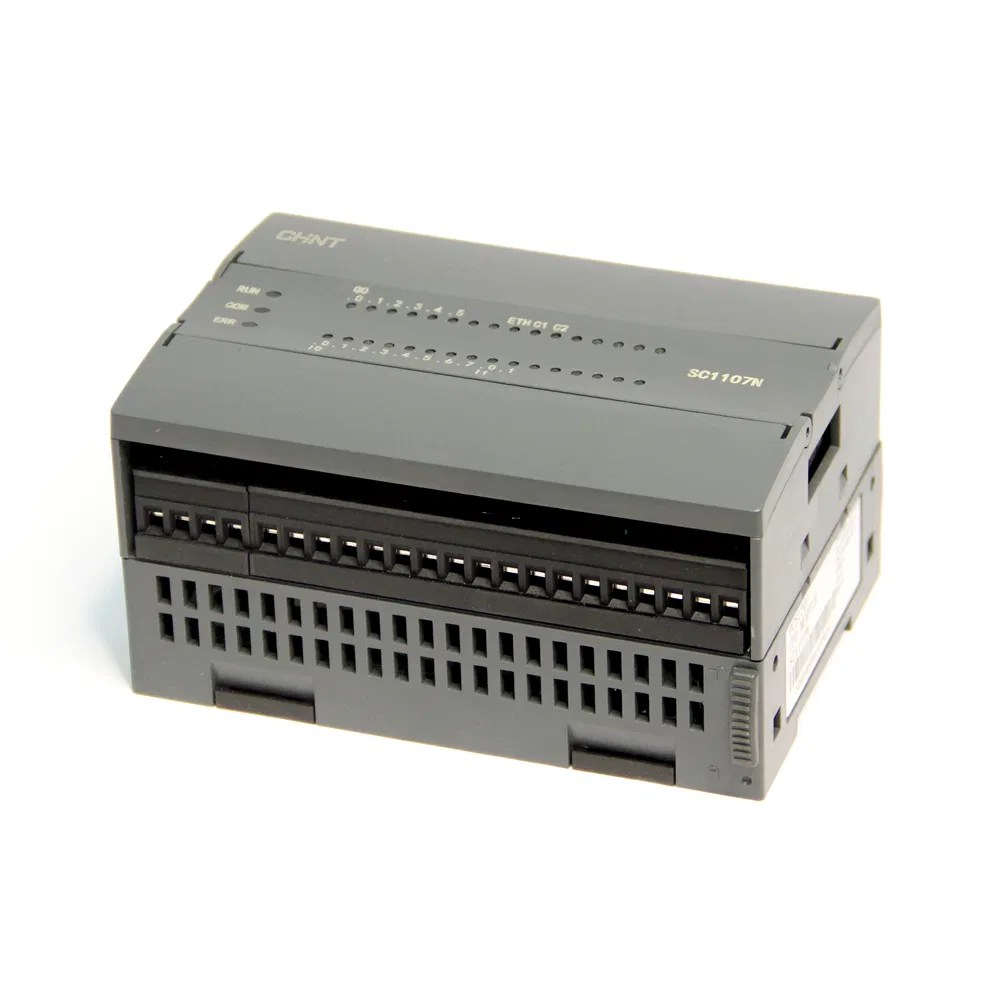

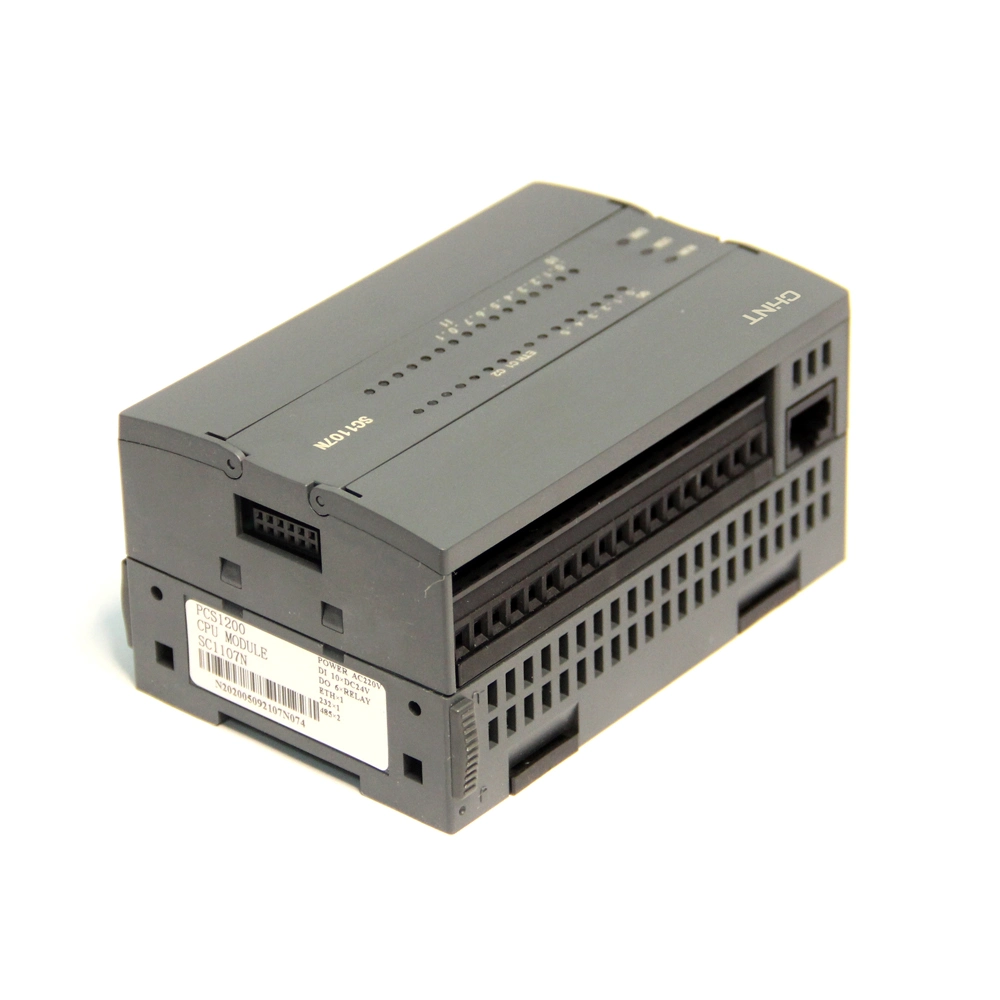

PLC CPU Module Main Banner
ℹ️ Basic Information
Model NO.: SC1107N
Mathematical Model: Linear
Signal: 4-20ma HART RTD
Function: Automatic Control, Protection, Monitoring, Measurement
Certification: ISO: 9001, CE, CMMI5
Material: ABS
Warranty: 1 year
Dimensions: 120mm(L)× 80mm(W)× 63mm(H)
HS Code: 853710
Production Capacity: 50000 Pieces/Year
⚙️ Technical Specifications
Support Codesys v3.5 SP13
CPU Performance Electrical Parameters
I/O Configuration 10-CH 24VDC input, 6-CH Relay output Supply Voltage 220VAC @50Hz (Range: 187~264VAC)
Expansion capability Up to 20 modules (relay module required) Output Voltage/Current 24VDC / 400mA
Storage capacity Program: 400KB | N Area: 8KB | M Area: 5KB Short-circuit protection 800mA, 24VDC output
Timer/Counter Hardware timing: 0.1ms ~ 500ms | Counter: 16bit Communication interface 1*RS232, 2*RS485, 1*RJ45
Operating rate 0.06μs (Boolean operation) Protocol MODBUS RTU, MODBUS TCP (4 Server links)
Input Channel details Output Channel details
Type P/M-lesend, Rated 24VDC Type Relay (Rated 24VDC or 24-230VAC)
Isolation Optoelectronic (1000VDC) Contact Capacity 2A, Impedance load
Switch Delay < 0.6ms Mechanical Life > 10,000,000 times (No load)
🔌 Interface & Terminal Definitions

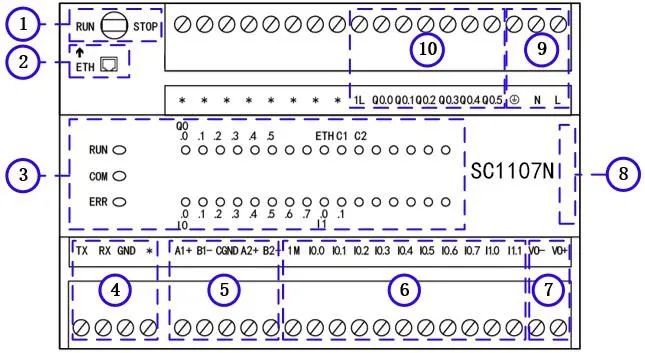

Interface Diagram
1 Switch: RUN and STOP control for program execution.
2 Ethernet: RJ45 interface for HMI, PC, and Cloud (MODBUS TCP).
3 Indicators: LED status for RUN, COM, ERR, I/O points, and Port activity.
4 RS232 Port: Terminal wiring for program downloads and MODBUS RTU.
5 RS485 Ports: Dual interfaces for third-party instruments and HMI.
6 Input Terminals: 1M common terminal with Source/Leakage support.
7 Power Supply: AC220V (L, N, GND) and external 24VDC (VO+, VO-).
📊 Connection Modes
Input Connection
Output Connection
🏢 Business Sector & References
Business Sector

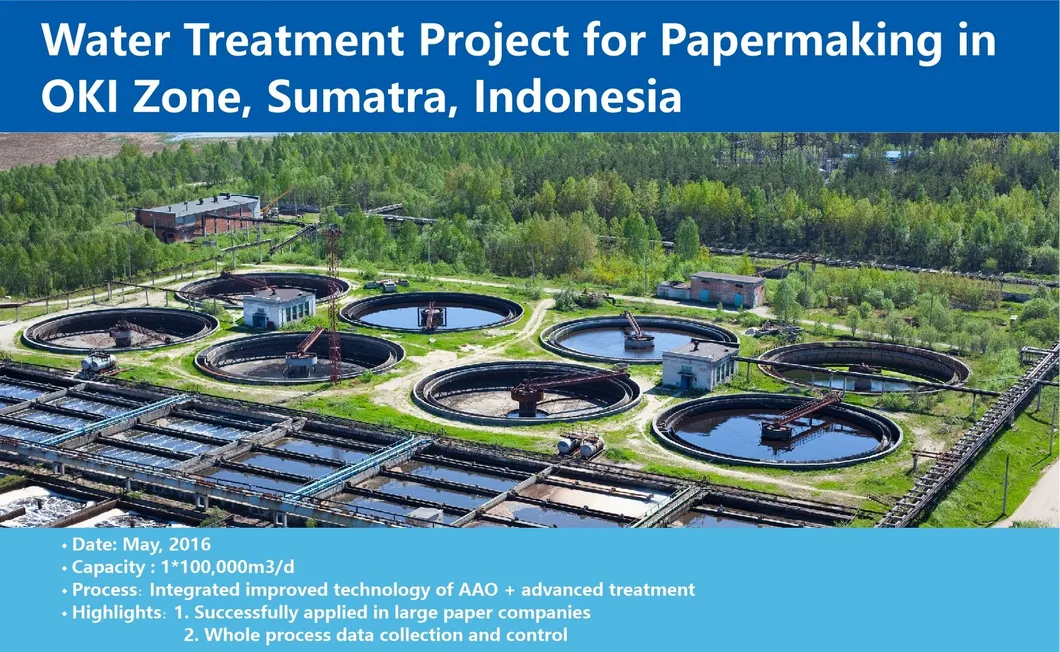

Typical Reference 1
Typical Reference 2
Frequently Asked Questions
Q: What programming software is compatible with this PLC module? A: This module fully supports Codesys v3.5 SP13 for programming and logic control.
Q: How many I/O channels are available on the SC1107N? A: It features 10 channels of 24VDC input and 6 channels of Relay output.
Q: Can this module be expanded with additional units? A: Yes, it supports expansion for up to 20 additional modules using the built-in extension interface.
Q: What communication protocols are supported via the Ethernet port? A: The RJ45 Ethernet interface supports the MODBUS TCP protocol and allows for up to 4 simultaneous server links.
Q: What are the environmental requirements for operation? A: The operating temperature range is 0 to +55ºC, with a relative humidity tolerance of 5% to 95% (non-condensing).
Q: What is the power requirement for the module? A: The primary supply voltage is 220VAC at 50Hz, with an allowable range of 187~264VAC.
