| Name | 8-point Transistor Output Unit with Terminal Block (Sinking Outputs) |

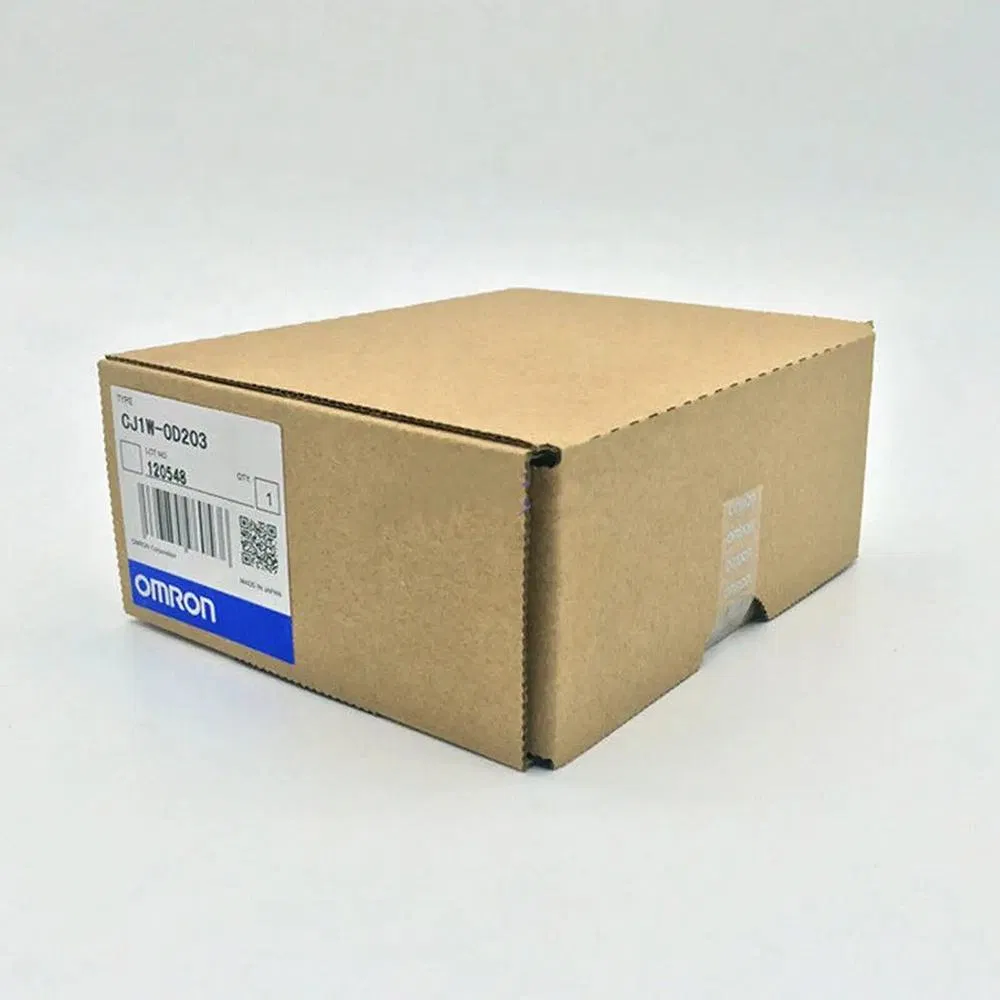

| Model | CJ1W-OD203 |
| Maximum Load Current | 0.5 A/point, 4.0 A/Unit |
| Maximum Inrush Current | 4.0 A/point, 10 ms max. |
| Leakage Current | 0.1 mA max. |
| Residual Voltage | 1.5 V max. |
| ON Response Time | 0.1 ms max |
| OFF Response Time | 0.8 ms max |
| Insulation Resistance | 20 MΩ between external terminals and the GR terminal (100 VDC) |

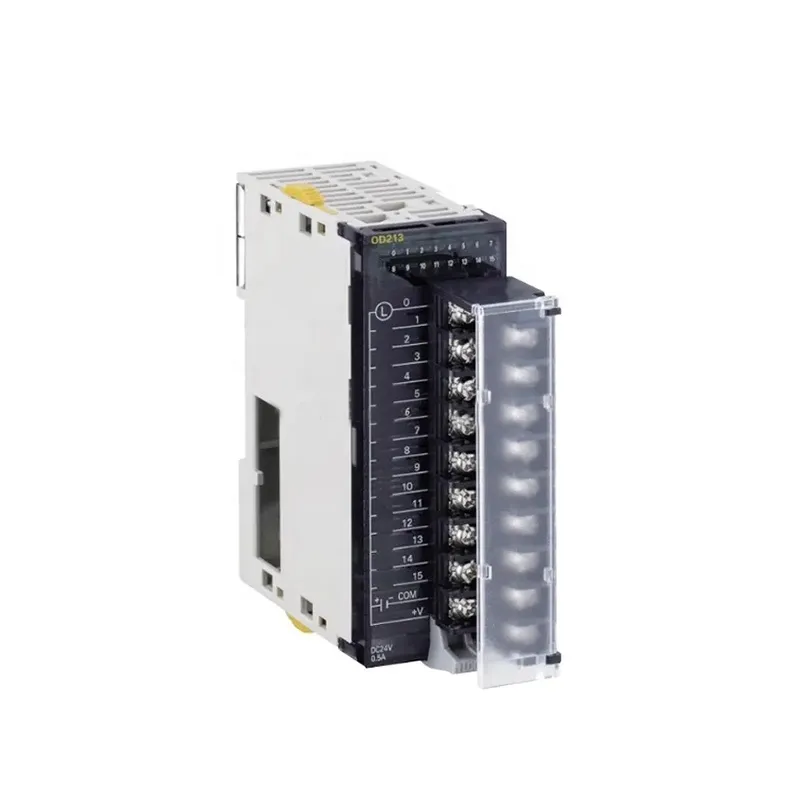

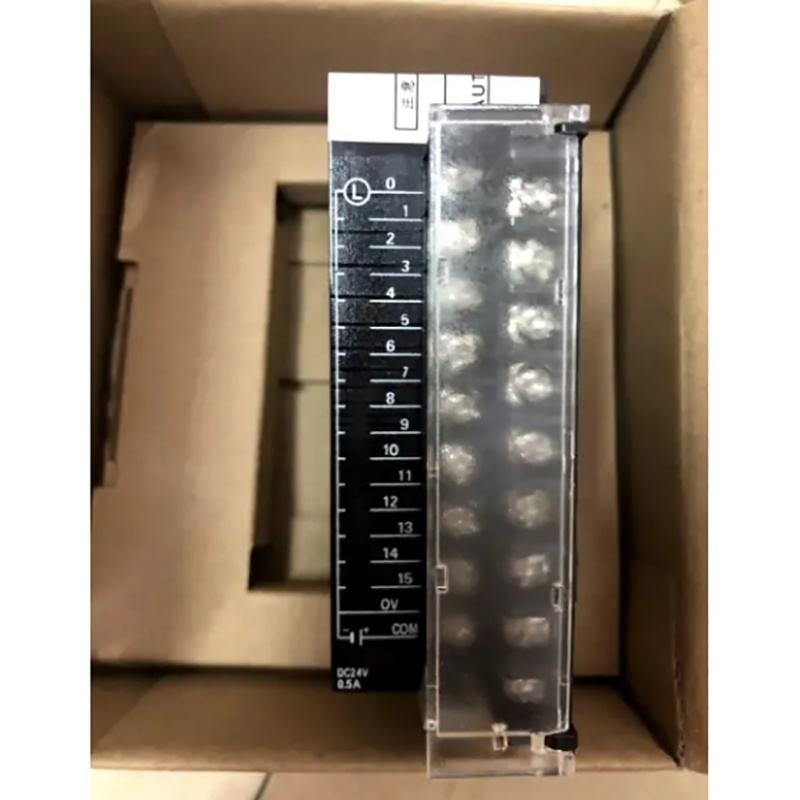

| Name | 16-point Transistor Output Unit with Terminal Block (Sinking Outputs) |
| Model | CJ1W-OD213 |
| ON Response Time | 15 μs max |
| OFF Response Time | 80 μs max |
| Internal Current Consumption | 5 VDC 150 mA max. |
| Weight | 110 g max |
Our Superiority:
We are a professional electric and electronic automation supplier providing technical support for PLC, HMI, Inverter, Servo motor drive, circuit breaker, sensor, limit switch, and Pneumatic components.
We offer one-stop supply services with tens of thousands of products in inventory, ensuring low prices and longer warranty periods to help customers save costs while maintaining performance.

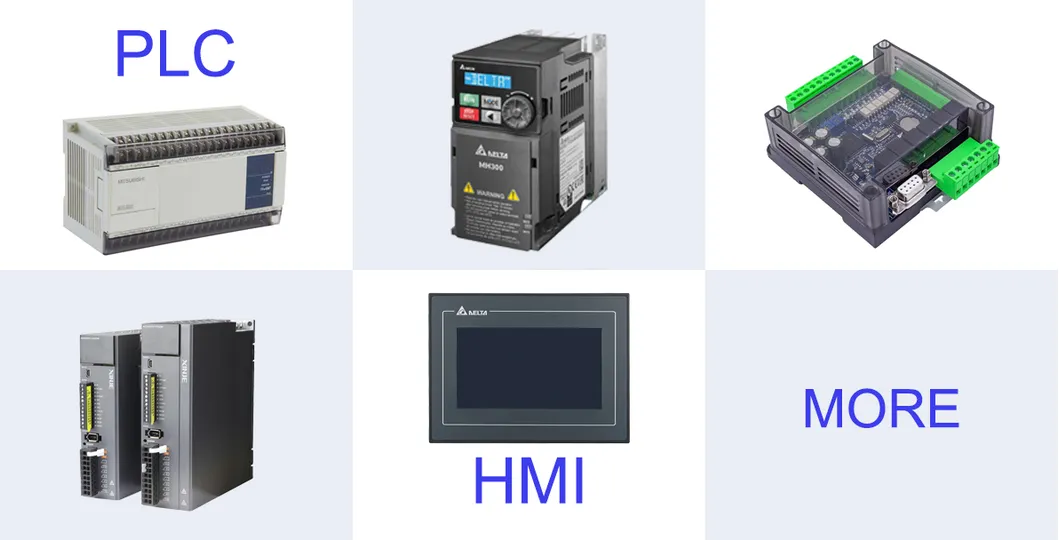

Main Categories: PLC, Encoder, HMI, Inverter, Servo motor and driver, sensor, touchscreen, and more.
