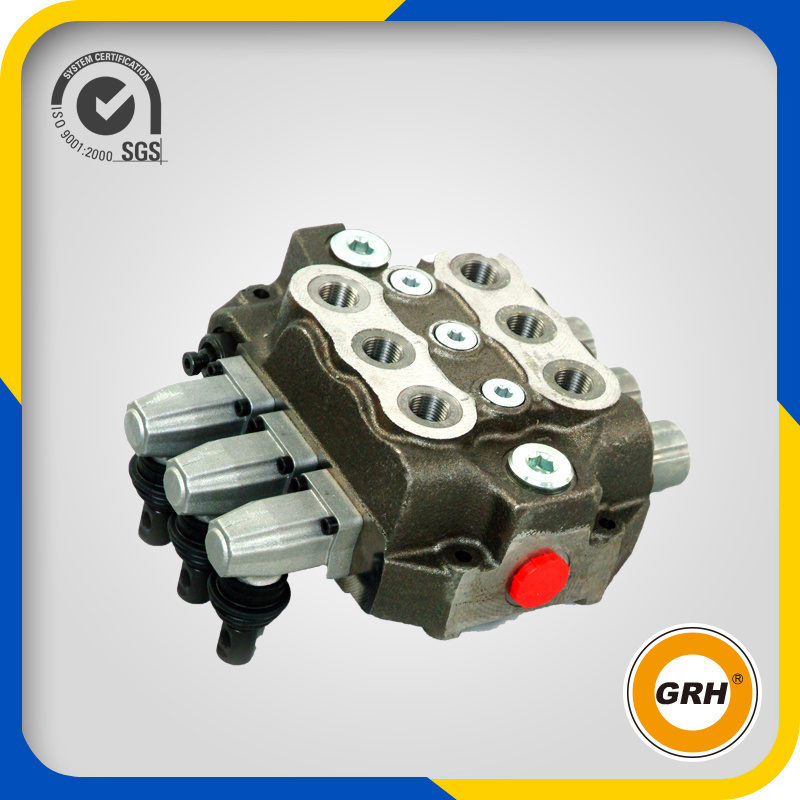

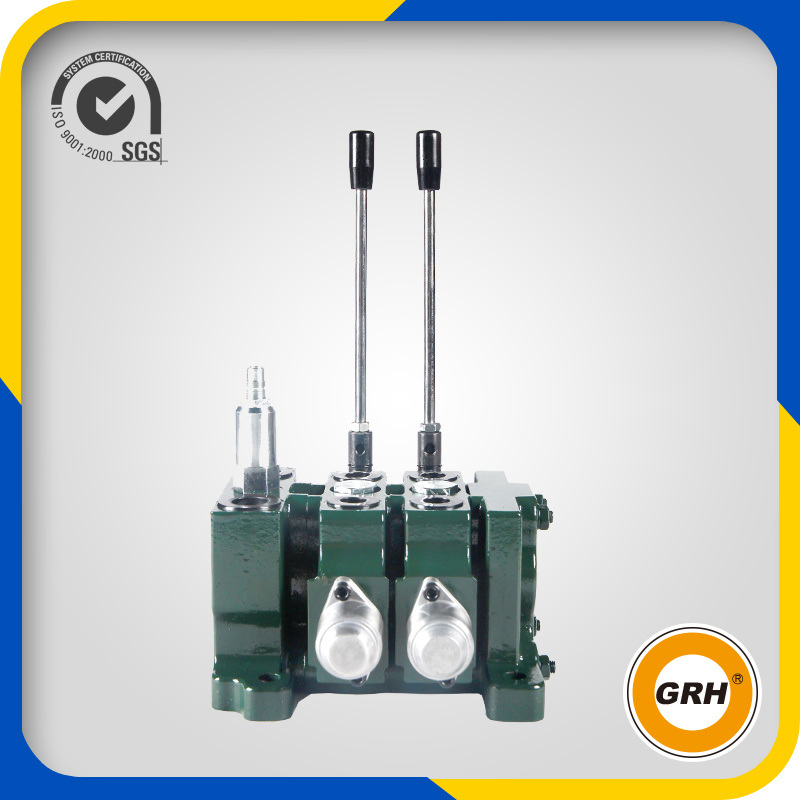

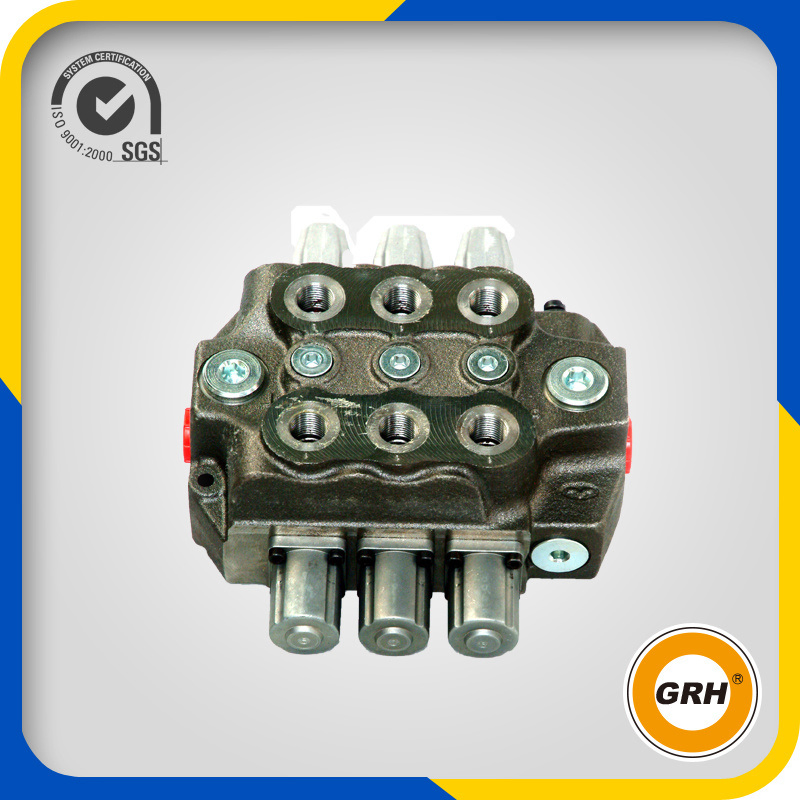

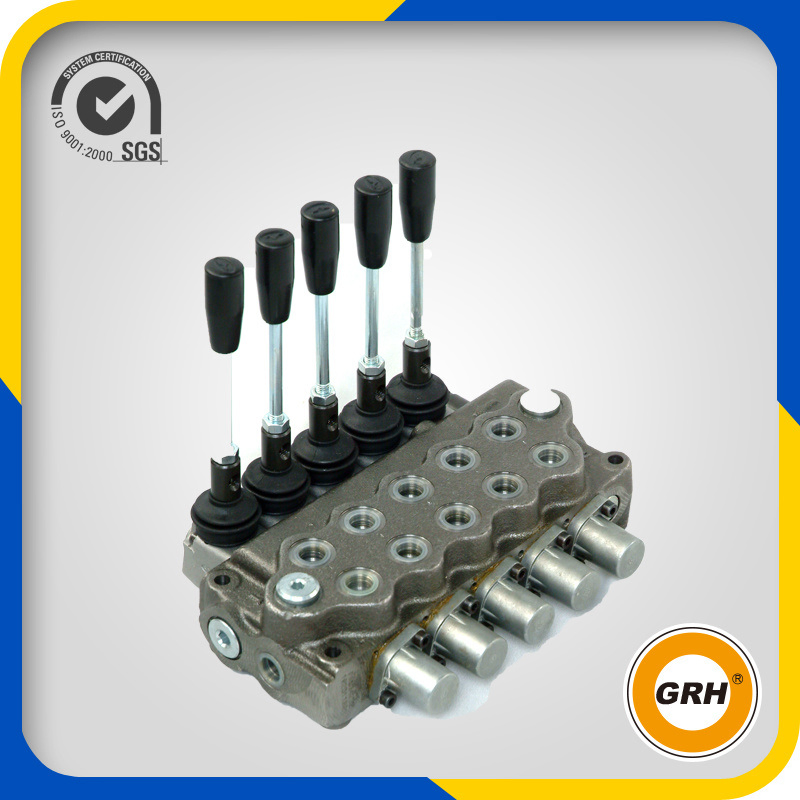

Hydraulic Grh All Goods Are in Our Standard Packing No Rear Brakes Proportioning Valve Nut with CE

Customization: Available
Temperature: Ordinary Temperature
Certification: CE, ISO9001

Product Description

Technical Specifications
Name
80L/Min Electro-Hydraulic Directional Valves
Media
Oil
Standard
Standard
Connection Mode
Internal Thread
Power
Hydraulic
Material
Cast Iron
Type
Self-Operated
Color
Black
Warranty
One Year
Flow Rate
26 L/Min
Structure
Proportional Directional Control Valve
Supply Voltage
24 V DC
Pressure
High Pressure
Returning Way
Spring Return, Ball Locking/Detent, Floating Spool
Production Capacity
20000 PCS Per Month
Certification
CE
Product Overview

Specialized in providing high-performance hydraulic components and professional solutions for advanced hydraulic systems. With continuous improvement and technical expertise spanning over 30 years, we have emerged as a significant power in the fluid power industry since our establishment in 1986.

Our extensive product catalogue features primary components including hydraulic gear pumps, pump valve assemblies, hydraulic power units, proportional valves, monoblock directional control valves, cycloidal speed reducers, hydraulic gear motors, and geared flow dividers.

Following strict quality management system standards, we utilize advanced ERP production management systems to deliver high-quality hydraulic products. To maintain technological leadership, the facility is equipped with over 300 sets of specialized machining centers, including German high-speed cutting centers, American honing machines, and diamond boring equipment.

80L/Min Electro-Hydraulic Directional Valve
Manufacturing & Quality Control

Every product undergoes 100% rigorous testing before delivery. Inspectors perform sampling according to international standards, monitoring critical parameters such as time, pressure, temperature, flow, and stroke to ensure maximum stability and reliability.

Manufacturing Facility
Quality Inspection

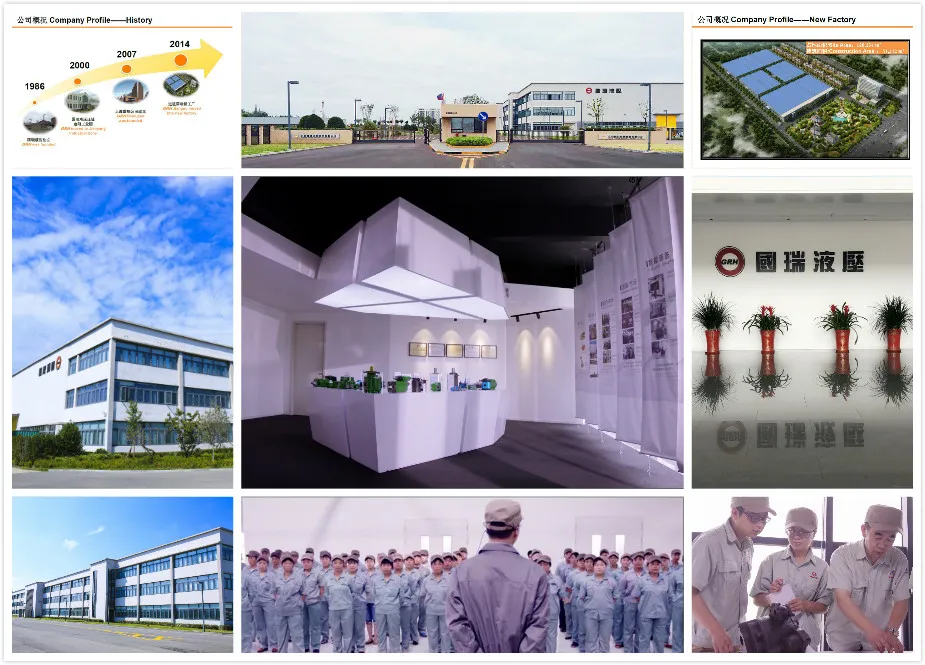

Production Process
Applications
Hydraulic Component Applications
Frequently Asked Questions
1. What is the maximum flow rate of this directional valve?
This specific electro-hydraulic directional valve supports a flow rate of up to 80L/min, with standard operating flow at 26 L/min.
2. What type of power supply is required for operation?
The valve operates on a standard 24 V DC supply voltage, making it compatible with most industrial hydraulic control systems.
3. In what environments can these valves be used?
These valves are designed for high-pressure industrial applications, including lifting machinery, construction equipment, and agricultural machinery.
4. What material is used for the valve body?
The valve body is constructed from high-quality cast iron to ensure durability and resistance under high-pressure conditions.
5. What are the available returning options for the spool?
The valve supports multiple positioning and returning ways, including Spring Return, Ball Locking/Detent, and Floating Spool configurations.
6. Does the product come with a warranty?
Yes, we provide a one-year warranty on our hydraulic directional valves, ensuring quality and performance reliability.
