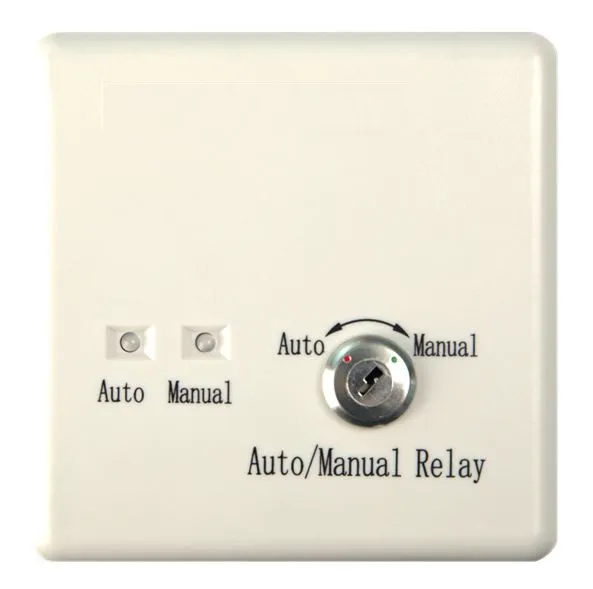

Product Description
Key Features
Conversion between manual operation mode and automatic operation mode.
Installed at the entrance of the protected area for easy access.
System linkage is disabled in manual state to prevent accidental activation.
Automatic state enables full system linkage for immediate response.

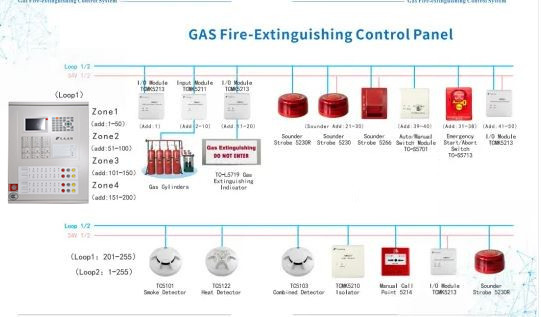

Fully configurable with Gas fire-extinguishing control panels.
Technical Parameters
| Product Name |
Auto/manual switch module for gas fire extinguishing system |
Coding Method |
Electrical coding |
| Operating Voltage |
Signal bus voltage, 24V (Range: 16-28V) |
Operating Current |
≤1MA |
| Dimensions |
86mm × 86mm × 38mm |
Environment |
Temp: 0°C to +40°C | Humidity: ≤95% |
| Material & Color |
ABS, White |
Weight |
Approx 110g (with base) |

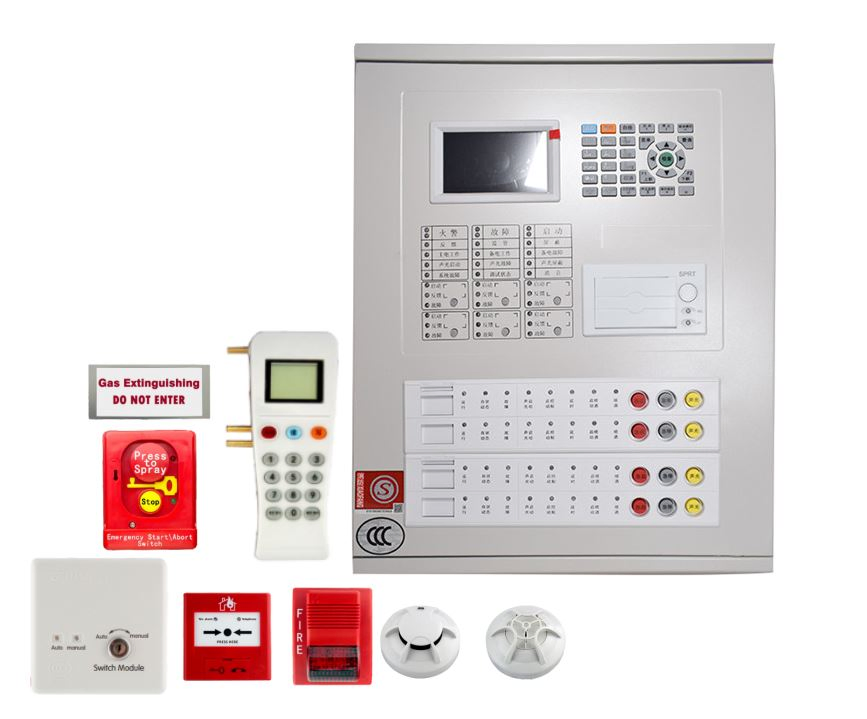

Product Range
Addressable & Wireless Fire Alarm Systems
Electrical Fire Monitor & Extinguishing Control Systems
Fire Door Monitor & Water Cannon Control Systems
Standalone Smoke & Combustible Gas Detectors
Our Service
Professional OEM & ODM services.
Comprehensive technical support and after-sale service.
1-year product warranty.
Standard 15 working days lead time; samples welcome.
Frequently Asked Questions
1. What is the primary function of the Auto/Manual Switch Module?
The module allows users to toggle between manual and automatic operation modes for gas fire extinguishing systems, typically installed at the entrance of protected areas.
2. How does the system behave in "Manual State"?
In the manual state, the system will not initiate linkage, ensuring that extinguishing agents are not discharged automatically.
3. What are the electrical requirements for this module?
It operates on a signal bus voltage of 24V (within a 16-28V range) with a very low operating current of ≤1MA.
4. Is the product certified for international use?
Yes, the module holds both CE and CCC certifications, meeting essential safety and quality standards.
5. What is the standard lead time for orders?
The typical lead time is 15 working days, though this may vary based on specific order requirements.
6. Can I request a custom design for my project?
Yes, we provide comprehensive OEM and ODM services to tailor the fire alarm components to your specific needs.
